Description

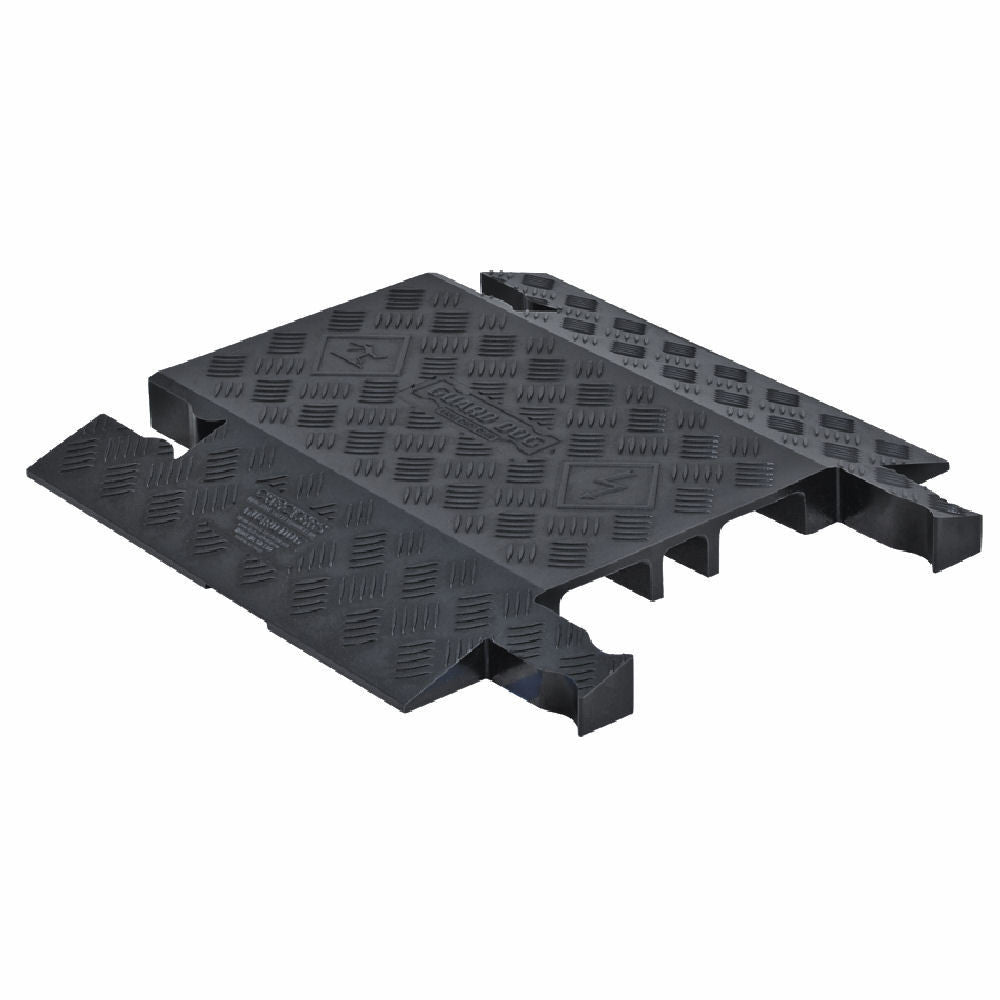

Built from all-weather polyurethane, the Guard Dog's 3-channel drop-overs are made to protect both temporary and permanent fixtures such as pipes, conduits, and cable/hose lines. These medium duty drop over cord covers come in 18" segments and are made with a patented 5-bar tread surface that provides safe, high-traction passage for both vehicles and pedestrian traffic in industrial, commercial and public environments.
With two extra-wide channels, this system can accommodate various quantities and sizes of lines up to 1.325" outside diameter. Easy to store when not in use, the drop over hose protector and cable covers are compatible with all standard Guard Dog 5-channel models, as well as other cable protectors with Dog Bone connectors.
Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.
The drop-overs do not protect from abrasion from below, so should be used only on a flat surface.
Specifications
| Model No | GD3-DO-B | UPC | 812958004432 | Brand | Checkers Safety™ |
|---|---|---|---|---|---|
| Color | Black | Quantity Included | 1 | Pallet Quantity | 100 |
| Load Capacity Per Axle | 21000 lbs | Load Capacity Per Tire | 10500 | Length (Inches) | 21.88 |
| Width (Inches) | 19.88 | Height (Inches) | 1.88 | Max Cable Outside Diameter (Inches) | 1.325 |
| Number of Channels | 3-Channels | Connector Type | Dog Bone Connector | Channel Width | 3.2 |
