Unbeatable raw-drive power, performance, and precision.

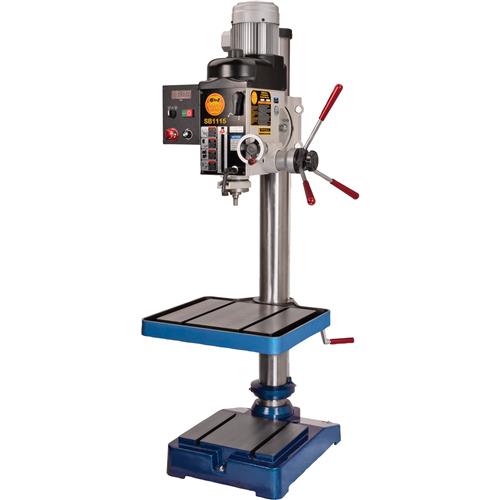

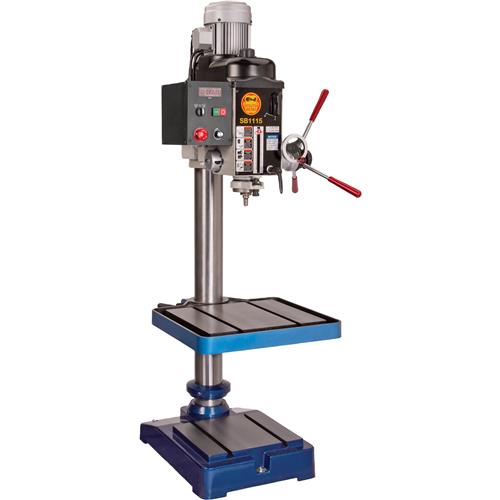

This powerful, professional-level South Bend gearhead drill press features all the precision and high-end capability you need to put out your best work.
Geared drill presses are designed for drilling larger holes than belt driven machines thanks to the spindle bearings and tighter tolerances.

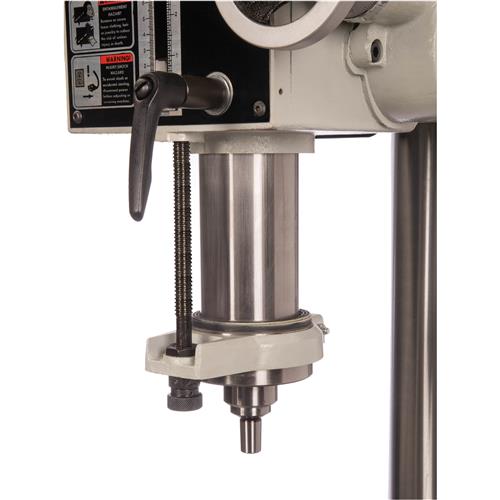

The spindle is fully reversible, features both coarse and fine downfeed controls, and a depth stop for repeatable production.
The variable speed range between 0 and 2500 RPM is controlled by spindle speed dial and a high/low spindle speed lever. Low RPM speed is vital to drilling metal.
Additional features, such as a digital spindle speed readout on the headstock and a clutch-engaged downfeed function make this gearhead drill press top of its class in design and functionality.
SPECIFICATIONS
Required power source: 220V, single-phase, min. 15A circuit
Spindle motor: 1-1/2 HP, 220V
Spindle taper: MT#3
Spindle speed: Variable, 0–350 RPM (Low) and 0–2500 RPM (High)
Spindle travel: 5"
Maximum distance spindle to column: 10-7/16"
Maximum distance spindle to table: 17-3/8"
Cross travel: 7"
Drilling capacity: 1-1/2" steel and cast iron
Head travel: 13-3/8"
Head tilt: 30° Right / 90° Left
Table size: 21-3/4" W x 19-1/2" D x 2-1/4" T
Table T-slots: 2 @ 1/2"
Drill chuck type and size: JT6 key chuck, 1/64"–5/8"
Footprint: 26" x 18-1/2"
Overall dimensions: 42" W x 35" D x 69" H
Approximate shipping weight: 683 lbs.
FEATURES
Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

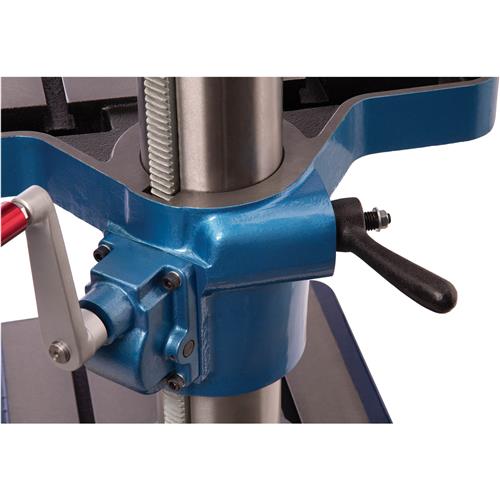

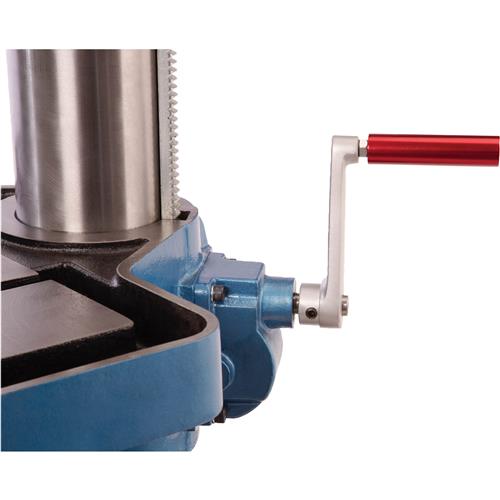

Powered or hand crank-enabled rack-and-pinion table elevation
Coarse and fine downfeed controls
Red anodized spindle stroke and table elevation handles
Cast-iron base with two 1/2" T-slots, 8-7/8" on center
360° table and head positioning around column

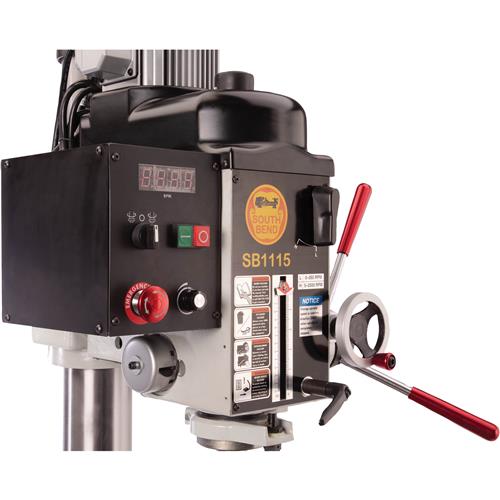

Digital speed display
Front-mounted emergency stop button
Forward/reverse spindle switch
South Bend owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.
Need help?We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the SB1115 comes with a 2-year warranty.
