For when Electronic Variable-Speed (EVS) is the minimum requirement of your toolroom.

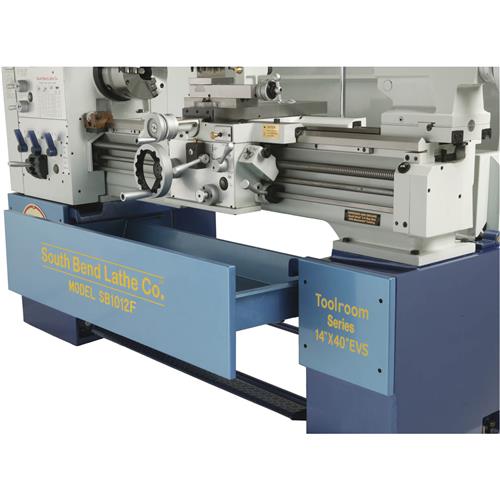

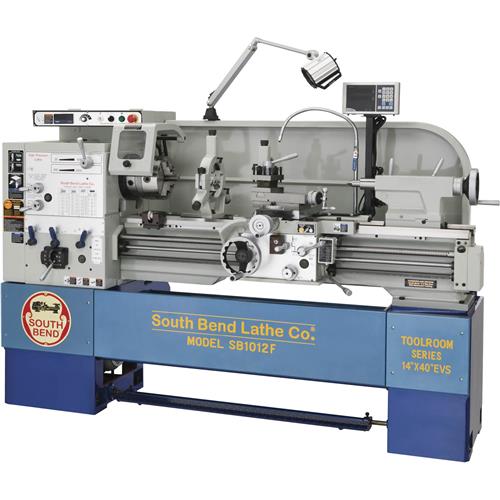

Loaded with all the essential features and high-precision parts, the SB1012F 14" x 40" EVS Toolroom Lathe excels at making dies, fine tools, jigs and fixtures.
Featuring EVS (Electronic Variable-Speed) spindle control, which allows the operator to quickly set the exact spindle speed within the available range of 20–2500 RPM.

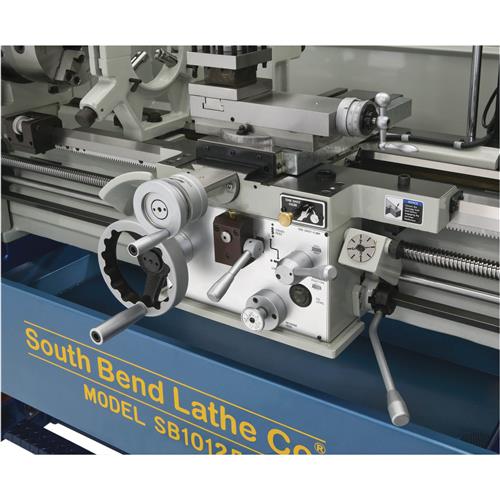

A Fagor DRO conveniently reads the position of the apron or cross slide movement.

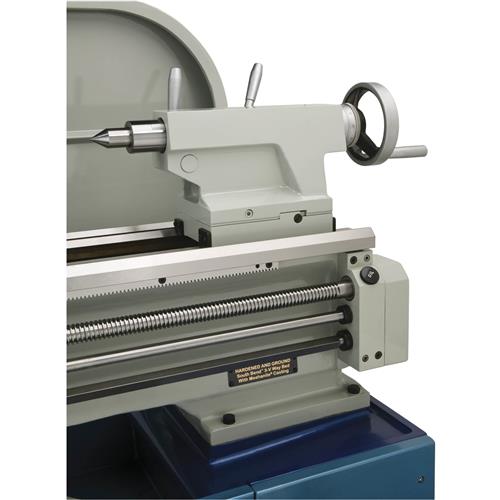

The bed of the SB1012F is constructed with Meehanite® castings that have been induction-hardened and ground in the traditional 3-V prismatic design.
The SB1012F manual was written by our U.S.-based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.
The South Bend Technical Support team is based in the USA.
SPECIFICATIONS
Required power source: 220V, 3-phase, min. 20A circuit
Spindle motor: 5 HP, 220V
Oil pump motor: 1/4 HP
Coolant Pump Motor: 1/8 HP
Swing over bed: 14.17"
Swing over gap: 20.98"
Swing over cross slide: 8.38"

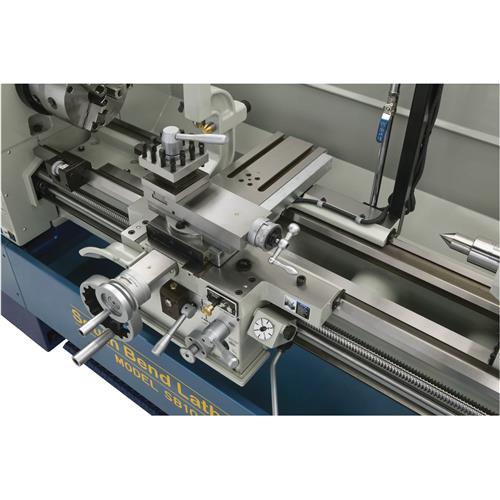

Cross slide travel: 9.25"
Compound travel 5.10"
Distance between centers: 40.00"
Spindle bore: 2.0625"

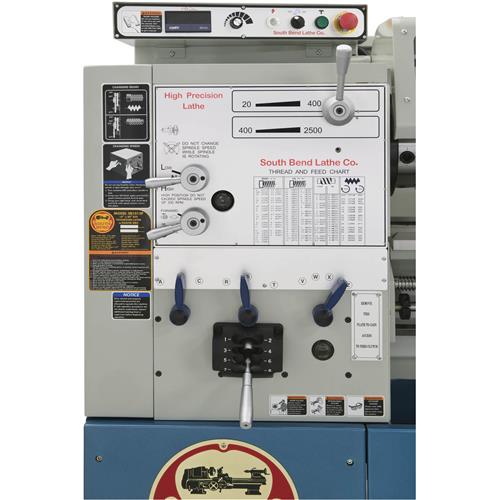

Spindle speeds: Variable, 20–2500 RPM
Spindle taper: MT#6
Tailstock taper: MT#4
Tailstock quill travel: 6.00"
Inch threads: (45) 2 to 72 TPI
Metric threads: (39) 0.20 to 14.00mm
Modular pitches: (18) 0.30 to 3.5 MP
Diametral pitches: (21) 8 to 44.00 DP
Longitudinal range: (17) 0.002 to 0.067 IPR
Cross range: (17) 0.001 to 0.034 IPR
Footprint: 82" x 19-1/2"
Overall dimensions: 91-1/2" W x 39-1/2" D x 59" H
Approximate shipping weight: 3086 pounds
FEATURES
2-year limited warranty

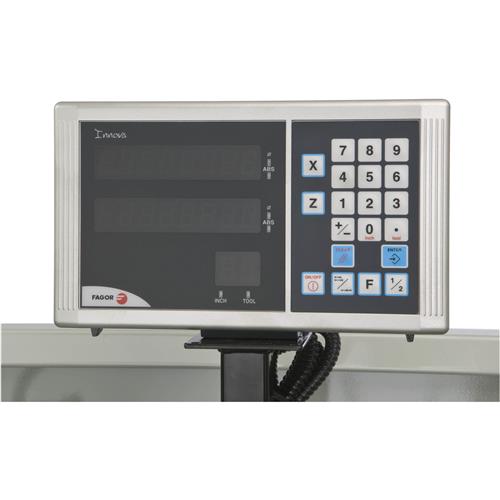

Fagor 2-axis DRO
Meehanite® casting

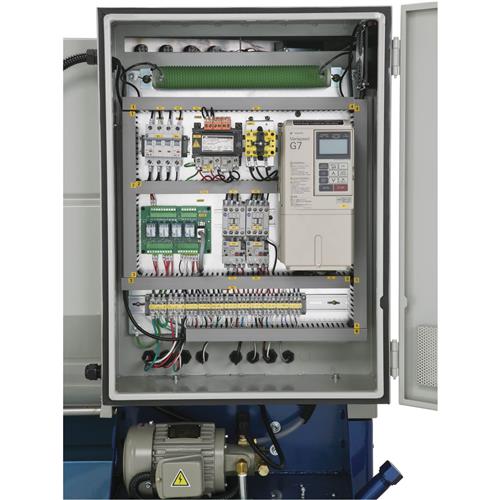

Allen-Bradley® controls
Safety chuck guard w/ micro-switch shut-off
Complete recycling coolant system
Micrometer carriage stop
Japanese spindle bearings
8" 3-Jaw scroll chuck w/ D1-6 plate
10" 4-Jaw ind. chuck D1-6
12" faceplate
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
Note: If you intend to run this machine on a phase converter, it must be a “digi series” or equivalent style converter to protect the machines EVS. These are not available through Grizzly.
