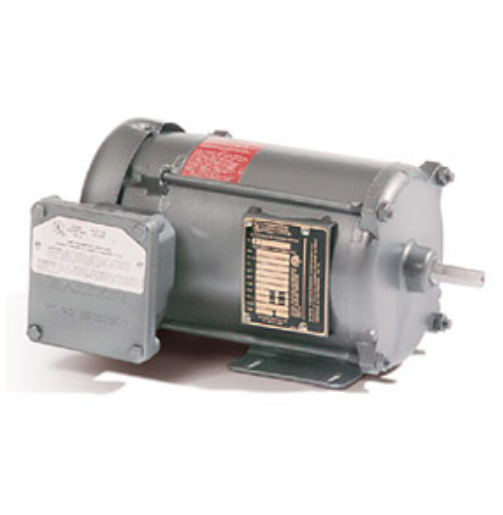

1 HP 115/230 Volts Single Phase Explosion Proof Paint Booth Fan Motor

1 HP 115/230 Volts Single Phase Explosion Proof Paint Booth Fan Motor

Regular price
$3,117.00
Sale price
$3,117.00
Quantity must be 1 or more


PAINT BOOTH MOTORS

1HP MX010-DV1-0056 Dual Volt

All AC, polyphase induction motors are mounted on standard NEMA frame bases and are available in explosion-proof and totally enclosed, fan-cooled types. All motors feature ball-bearing construction, heavy-duty, corrosion-resistant housings and bearing brackets.

Rotors and shafts are dynamically balanced to assure smooth, vibration-free operation. Inner races are locked to shaft outer races to end brackets, reducing endplay and maintaining alignment for V-belt drives. Windings are designed for long, dependable life under adverse operating conditions. Integral rotor fans in enclosed types direct cooling air over windings, reducing noise and prolonging motor life. Conduit boxes have ample hand room for easy accessibility and quick connection of leads.

All motors conform to state and local fire and safety regulations and may be mounted in either a vertical or horizontal position. Motors are rated for exhaust fan units at 1750 RPM

EXPLOSION-PROOF
Featuring a corrosionresistant epoxy finish, as well as a UL listed conduit box, explosion-proof motors are a safety feature for hazardous locations. They are UL listed for Class I, Group D and Class II, Groups F and G


;
