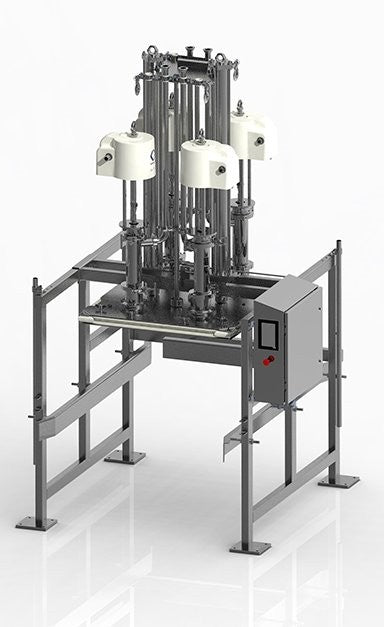

SaniForce BES System, 4-pump, 5:1 DB, Buckhorn Plate, Electronic Control
Specifications
| Frame Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 52 |
| Maximum Fluid Pressure (MPa) | 2.83 |
| Maximum Fluid Pressure (psi) | 410 |
| Model | SaniForce 2.0 |
| Number of Controllers | 1 |
| Number of Pumps | 4 |
| Overall Depth (in) | 76.5 |
| Overall Height (in) | 117.3 |
| Overall Width (in) | 70 |
| Plate | Inflatable Seal, Buckhorn Bin (43.9 x 39.9 inches) |
| Pump Ratio | 5:1 |
| Pump Type | Piston - Double Ball (4 Pump) |
| Seal Material | White Neoprene Inflatable Seal, Bin |
| Series | Bin Evacuation System |
| Standards Met | CE, FDA Compliant Materials, EC 1935/2004, UL 508A |
| System Controller Type | Electronic Touchscreen Control |
| Type | Bin Evacuation System |
| Wetted Material | 316 Stainless Steel, Polychloroprene, Nitrile, Nylon, UHMWPE, PTFE |
| Maximum Air Inlet Pressure (bar) | 6.89 |
| Maximum Air Inlet Pressure (kPa) | 689 |
| Maximum Flow Rate (L/min) | 197 |
| Maximum Fluid Pressure (bar) | 28.3 |
| Maximum Fluid Pressure (kPa) | 2830 |
| Maximum Fluid Pressure (kg/cm²) | 28.9 |
| Overall Depth (cm) | 194 |
| Overall Depth (mm) | 1943 |
| Overall Height (cm) | 298 |
| Overall Height (mm) | 2979 |
| Overall Width (cm) | 178 |
| Overall Width (mm) | 1778 |
