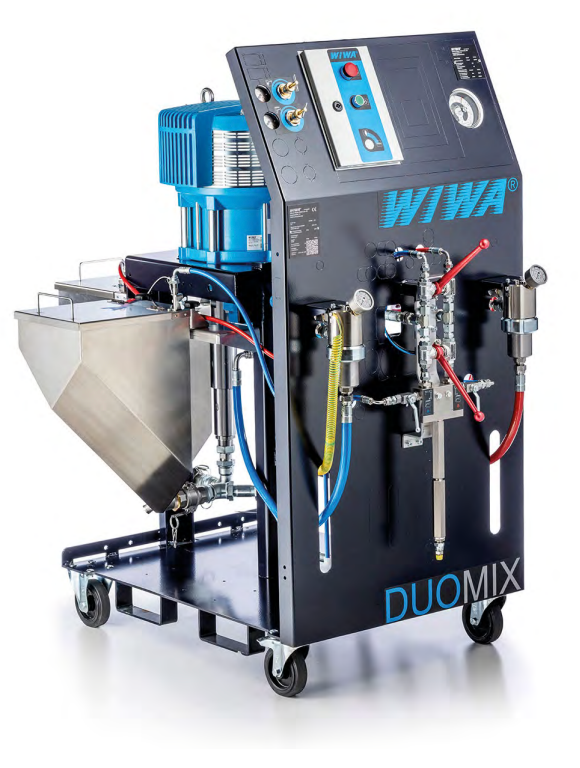

WIWA DUOMIX 270 GX
SETTING THE STANDARD IN POWER AND RELIABILITY
The worldwide proven WIWA 2K series for large area coatings offers you the following advantages:
-
Simplified operation of the system, all elements at the front
-
Mixing unit directly on the rack or externally with heated hose at a distance of up to 328.1 ft as well as connection of several guns are possible
-
For extreme mixing conditions combinations of several static mixers are possible
-
DATALOG for control of extensive consumption data
-
Powerful WIWA Anti-Icing air motor low noise, oil-free and pulsation-free
-
Individual material feed for different container sizes
-
The mixing ratio can be changed in a matter of minutes by exchanging the material pumps. More than 200 different fixed mixing ratios can be set up this way.
-
Optional: Wireless interface to access logged data
-
Optional: ATEX version for working in Ex zone areas
Technical Data
| Technical data | |
| Output per cycle (cm³) | 2.4 up to 24.1 |
| Pressure Ratio | 20:1 up to 80:1 |
| Max. air inlet pressure (psi) | 116 |
| Max. operating pressure (psi) | 6526 |
| Volumetric mixing ratio | 1:1 up to 10:1 |
| Order No. | On request |
AREAS OF APPLICATION
-
Construction
-
Building renovation
-
Building and civil engineering
-
Steel and hall construction
-
Steel processing industry
-
Heavy industry
-
Marine and offshore industry
-
Machine and vehicle construction
-
Pipes and pipelines
-
Energy industry
MATERIALS
-
Solvent-based coating materials
-
Low-solvent and solvent-free coating materials
-
Acrylic
-
Polyurethanes
-
Antifoulings
-
Silicone
-
Multicomponent coating materials
-
Flame retardant materials
-
Materials with short fiber fillers
-
Sprayable paints and varnishes
