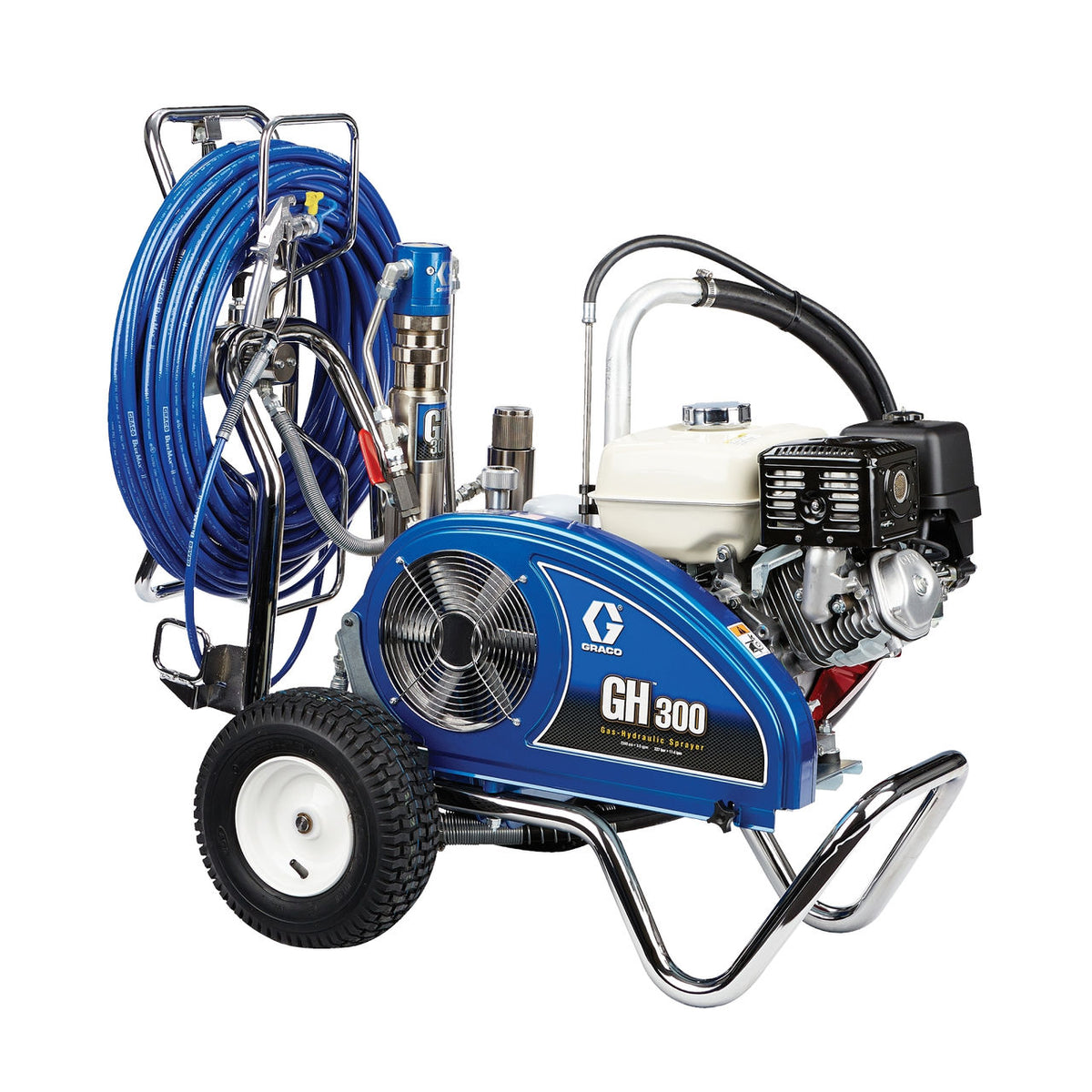

The GH 300 is one of the most powerful hydraulic sprayers for high production contractors who are spraying a wide range of materials including latex, elastomerics, and block fillers on large commercial jobs.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Endurance MaxLife Piston Pump
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages minimize pressure drops for high velocity flow
-
High-Efficiency Hydraulic Motor
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
-
High-Capacity Cooling System
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
-
QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
-
ProConnect Pump Replacement System
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
-
Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
-
Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
-
Additional Features:
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Specifications
| Graco Part Number | 24W936 |
|---|---|
| Compatible Material | Acrylic, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer |
| Compatible Replacement Pump | 24W998 |
| Convertible | No |
| Engine Brand | Honda |
| Engine Size (HP) | 9.0 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Hose Reel Type | QuikReel |
| Includes | Silver Plus Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 3/8 in x 100 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose, TSL 4 oz |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Hose Length (ft) | 300 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.057 |
| Maximum Tip Size 1 Gun (in) | 0.057 |
| Maximum Tip Size 2 Guns (in) | 0.039 |
| Maximum Tip Size 3 Guns (in) | 0.033 |
| Maximum Tip Size 4 Guns (in) | 0.029 |
| Maximum Tip Size 5 Guns (in) | 0.025 |
| Maximum Working Pressure (psi) | 3300 |
| Number of Guns | 5 |
| Outlet Paint Filter | Easy Out |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 44.8 |
| Overall Width (in) | 25.3 |
| Power Rating (HP) | 9.0 |
| Power Rating (W) | 6711 |
| Power Rating (kW) | 6.71 |
| Power Source | Gas Hydraulic |
| Pump Mount Type | ProConnect |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance |
| Weight (lb) | 222 |
| Wetted Material | Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Recommended Annual Usage | Up to 1,000 gallons per week |
