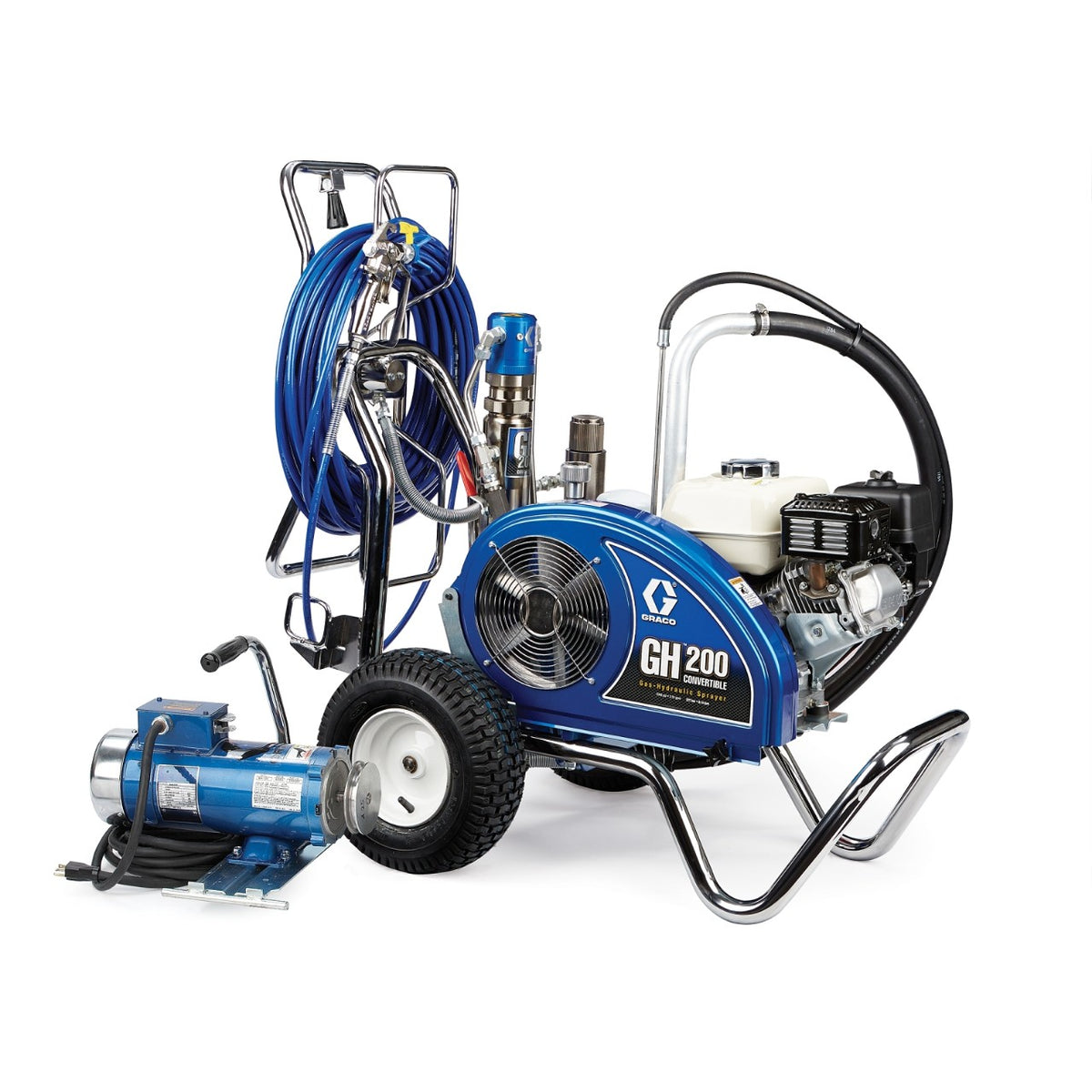

The GH 200 Convertible is the solution for medium to large jobs where proven hydraulic power is demanded to get the job done. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
-
High-Efficiency Hydraulic Motor
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
-
High-Capacity Cooling System
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
-
Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
-
Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filter design won't collapse to ensure a quality finish
- Vertical design for less mess
-
Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
-
Rugged, Durable Cart Design
- Thick chrome over welded steel withstands rugged environments
- Full pneumatic wheels absorb impacts and vibrations
- Retractable handle doubles as coiled hose storage
- Tilts on its nose for service in the field
-
Electric Motor Kit
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds – without tools
Specifications
| Graco Part Number | 24W926 |
|---|---|
| Compatible Electric Motor Kits | 248949, 248950 (CSA) |
| Compatible Material | Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer |
| Compatible Replacement Pump | 24W995 |
| Convertible | Yes |
| Engine Brand | Honda |
| Engine Size (HP) | 5.5 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Includes | Contractor Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz, Electric Motor Kit |
| Maximum Flow Rate (GPM) | 2.15 |
| Maximum Hose Length (ft) | 300 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.047 |
| Maximum Tip Size 1 Gun (in) | 0.047 |
| Maximum Tip Size 1 Gun - Electric Motor (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.034 |
| Maximum Tip Size 2 Guns - Electric Motor (in) | 0.017 |
| Maximum Tip Size 3 Guns (in) | 0.027 |
| Maximum Tip Size 4 Guns (in) | 0.023 |
| Maximum Working Pressure (psi) | 3300 |
| Number of Guns | 4 |
| Outlet Paint Filter | Easy Out |
| Overall Height (in) | 39.5 |
| Overall Length (in) | 41 |
| Overall Width (in) | 24 |
| Power Rating (HP) | 5.5 |
| Power Rating (W) | 4101 |
| Power Rating (kW) | 4.10 |
| Power Source | Gas Hydraulic, Electric |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Weight (lb) | 160 |
| Wetted Material | Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Recommended Annual Usage | Up to 1,000 gallons per week |
