Collection: Graco Fire-Ball 300 Grease Pump & Parts
Which Graco Fire-Ball 300 do I have? ยท Versions, model numbers & manuals
Graco has built several versions of the Fire-Ball 300. Find the model or part number on your unit's label and match it to a row below. Parts can differ between versions, so check the manual for your version before ordering.
| Version | Model / part numbers | Graco manual |
|---|---|---|
| 50:1 FireโBall 300 Pump Module (Series C) | 241573 | Parts list 308955 (rev. F) |
| 5:1 Fire-Ball 300 Pump / 10:1 FireโBall 425 Pump | 225852, 225853 | Parts list 306520 (rev. J) |
| 50:1 Fire-Ball 300 Pump | 239877, 239887, 239888 | Operation manual 308883 (rev. Y) |
| 5:1 Fire-Ball 300 Pump | 203872, 203857, 204254, 222087, 203876 | Service manual 306518 (rev. ZAG) |
| 50:1 Fire-Ball 300 120 lb. / 50:1 Fire-Ball 425 120 lb / 75:1 Fire-Ball 425 120 lb / 50:1 Fire-Ball 300 400 lb | 225014, 241034, 222085, 241036, 223108, 241039, 223107, 241041, 244635, 24M271, 243817, 24M273, 225016, 241035, โฆ | Parts list 307880 (rev. T) |
| 50:1 Fire-Ball 300 Side Pocket Mount / 50:1 Fire-Ball 300 Horizontal Mount / 50:1 Fire-Ball 425 Side Pocket Mount / 75:1 Fire-Ball 425 Side Pocket Mount | 244644, 244645, 244646, 244647, 244648 | Parts list 309350 (rev. C) |
| 15:1 Fire-Ball 300 Pumps | 206405, 206699, 206700 | Service manual 306531 (rev. Z1) |
| 50:1 FIREโBALL, 120โLB DRUM SIZE Topper Units | 222073 | Parts list 306523 (rev. K) |
| 15:1 Fire-Ball Fluid Dispense Packages | 222078, 241043, 220170, 241044, 220171, 241045 | Parts list 307882 (rev. H) |
| 3:1 Fire-Ball 225 Pump / 3:1 Fire-Ball 225 Pump - CE Approved / 5:1 Fire-Ball 300 Pump / 5:1 Fire-Ball 300 Pump - CE Approved | 246903, 24M265, 225728, 241053 | Parts list 307884 (rev. V) |
| 50:1 Ratio Fire-Ball Lubrication Pump | 225006, 240880, 25C688, 225026, 245696, 240881, 222245, 240882, 225773, 245695, 240883, 225827, 240884, 222069, โฆ | Operation manual 307878 (rev. ZAD) |
| 16 gallon, open drum / 55 gallon, open drum / 55 gallon, closed drum or 275 gallon obround tank / 16 gallon, open drum, truck mounted | 246904, 24M262, 246906, 24M263, 246907, 24M264, 225094, 241046, 222086, 241050, 225642, 241047, 225640, 241048, โฆ | Parts list 307883 (rev. N) |
Links open the PDF on graco.com. Need help identifying your version? Call (888) 714-1410.
About Graco Fire-Ball 300 Grease Pump & Parts

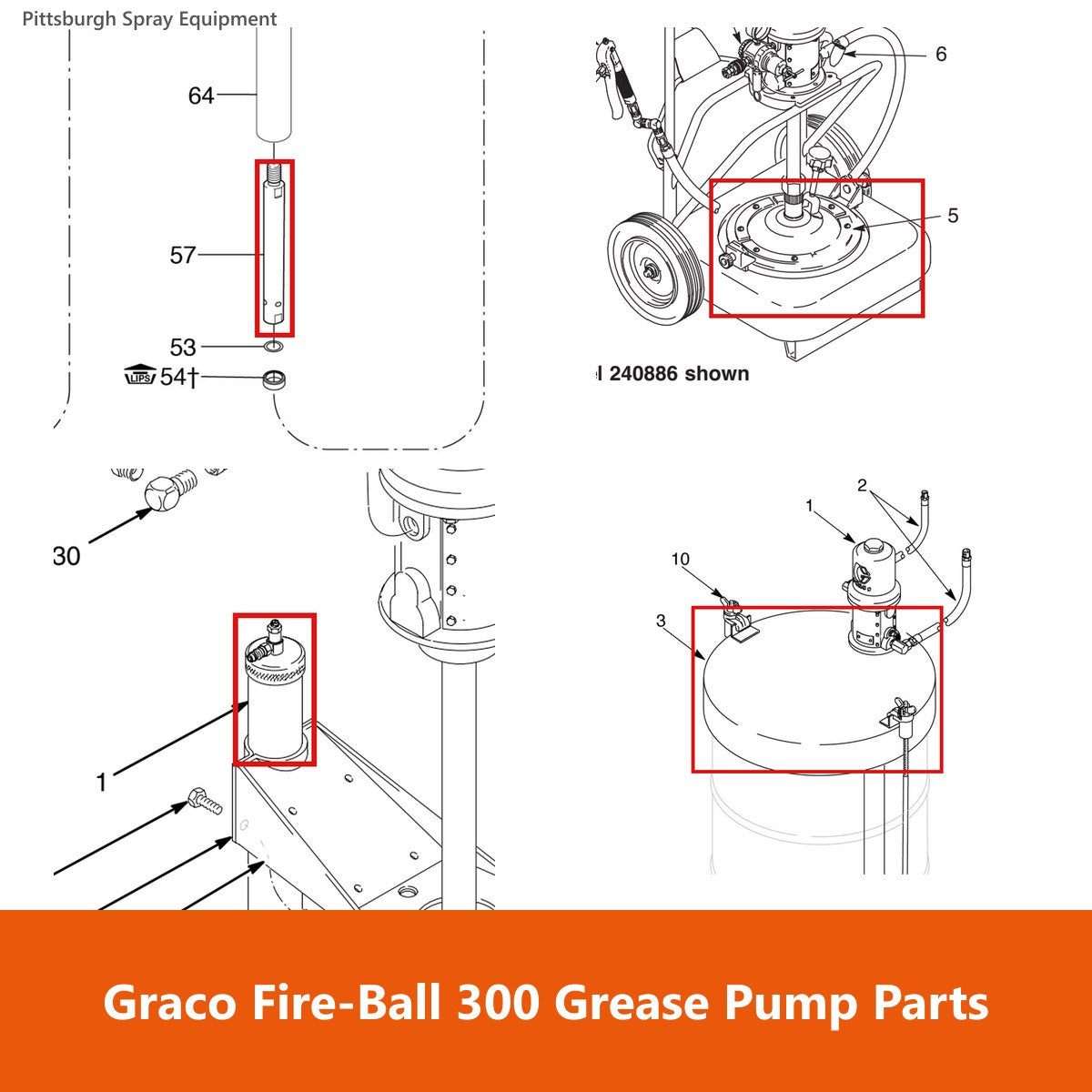

Shop the Graco Fire-Ball 300 and genuine Graco replacement parts for it. Every part in this collection is listed by part number in Graco's own manuals for this machine, and each product page links the Graco manual so you can match the reference number on the exploded view before you order. Not sure which part or version you have? Call (888) 714-1410 or email sales@pittsburghsprayequip.com with the model number from your unit's label.
Why buy from Pittsburgh Spray Equipment
- Parts matched to Graco's parts lists and part numbers for this model
- Help identifying worn parts and the right repair kit from our equipment techs
- Financing available on larger orders
Sorry, there are no products in this collection
