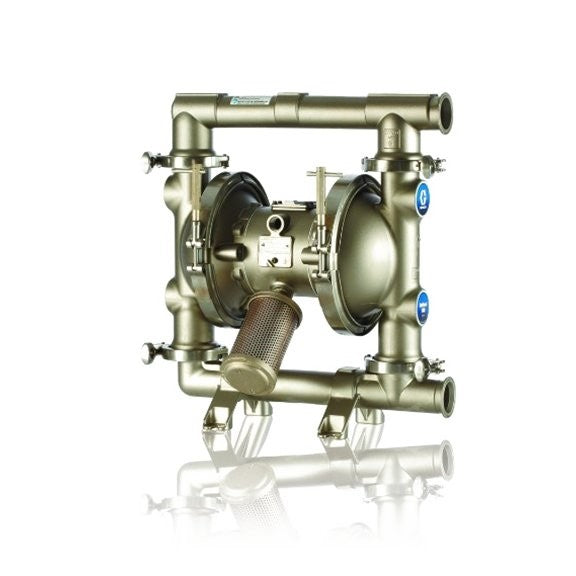

This Graco SaniForce 1050 Beverage Pump, 1 in. FG SST pneumatic diaphragm pump, features an aluminum center, stainless steel seats, CW balls, and SP diaphragms; an expansion on Graco's proven air-operated double diaphragm pump technology, delivering exceptional reliability and durable performance for wineries, breweries, distilleries, and other beverage transfer operations.
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | FKM (Viton) |
| Center Section Material | Stainless Steel |
| Compatible Material | Edible Oil, Food and Personal Care |
| Compressor Required | Yes |
| Configuration Code | 1590FG-PS01AS13SSFKFKEP21 |
| Connection Type | Tri-Clamp |
| Diaphragm Material | FKM (Viton) |
| Fluid Passage Size (cm) | 3.8 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| Fluid Section Material | 316 Stainless Steel |
| For Use With | Food and Personal Care |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | EPDM |
| Material | Stainless Steel |
| Material Certification | EN 1024:2004 Type 2.1 (Standard) |
| Maximum Air Consumption (SCFM) | 130 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 200 |
| Maximum Flow Rate (GPM) | 100 |
| Maximum Fluid Operating Temperature (°C) | 135 |
| Maximum Fluid Operating Temperature (°F) | 275 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (in) | 0.1875 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | SaniForce |
| Overall Height (in) | 20.5 |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Pump Type | FDA Grade |
| Seat Material | 316 Stainless Steel |
| Series | 1590 FG |
| Standards Met | FDA Compliant Materials, EC 1935/2004 |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 2-inch |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 89 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Flow Rate (L/min) | 379 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Solid Size (cm) | 0.48 |
| Maximum Solid Size (mm) | 4.8 |
