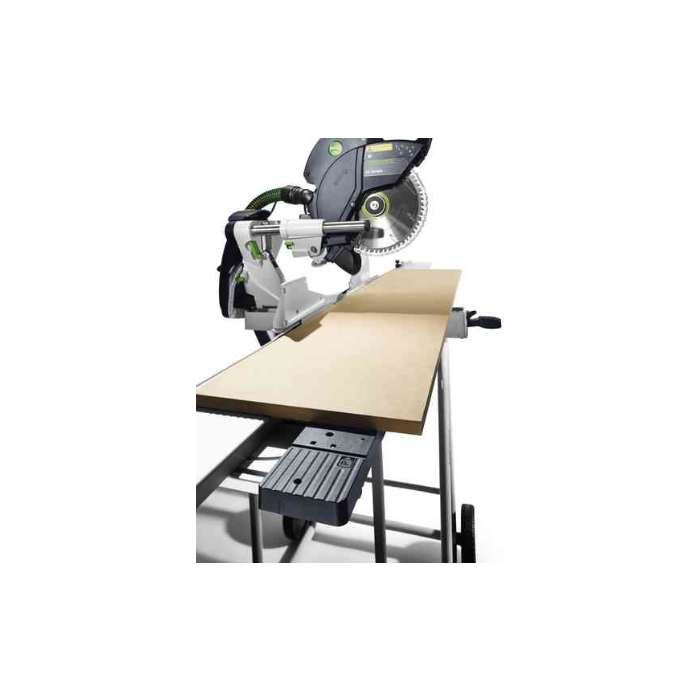

The NEW KAPEX is the most advanced sliding compound miter saw in the market today — making cuts that rival the finest trim work. Light in weight and heavy in features, the KS 120 is the perfect saw for the workshop or the jobsite. Effective dust extraction, precise cuts, easy adjustments, and quality components are some of the features that should make this saw the number one choice of professional tradesmen.

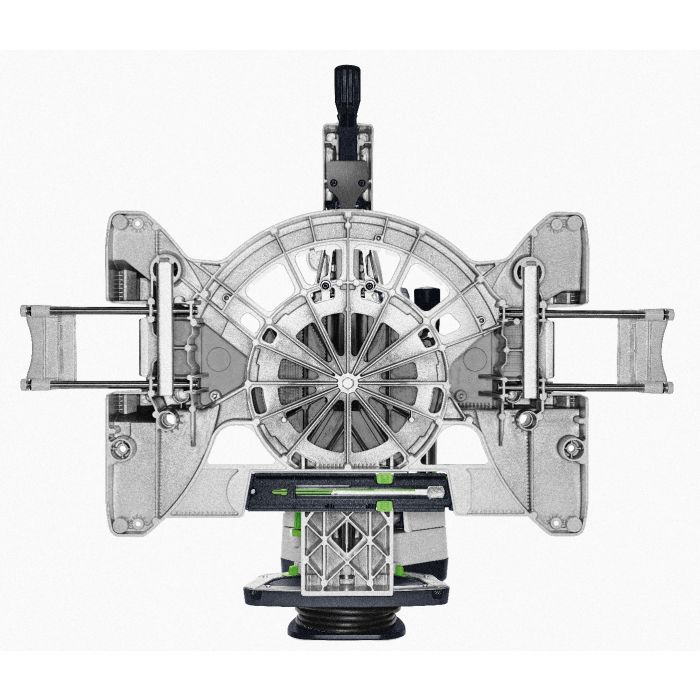

Updated in 2022 with a new base with integrated sliding table extensions that provide even greater work surface area for material support. This new base is compatible with current accessories such as Crown Stops, UG, and UG Extensions. Also includes bayonet-style dust port for a positive connection with the latest generation of Cleantec hoses. Additionally, internal changes to the motor structure have been made to help increase service life.
Features:
The KAPEX features a rail forward design which increases precision and creates a compact footprint while preventing head play for accurate cuts.
Dust extraction up to 91% with behind the cut dust hood and pivoting 36 mm hose.
Easily align cuts from the left or right side using the dual lasers. The lasers clearly define the material which will be removed during the cut.
Micro-adjustable bevel angle with up-front rotary knob. Large bevel scale and fine pointers make it easy to set precise bevel angles.
Twin-column guide with two bearings for unique precision
Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimeter from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation
Safety brake
Applications:
Trimming skirting boards and cornices up to 120 mm in height – no calculations
Cutting boards and panels up to 305 x 88 mm
Trimming crown moldings up to 168 mm in their original wall position
Trimming square timber and beams up to 88 mm thick
Specifications:
Power consumption 1 600 W
Idle engine speed 1 400 - 3 400 min⁻¹
Saw blade diameter 260.00 mm
Cutting depth 90°/90° 305 x 88 mm
Cutting depth at 45°/90° 215 x 88 mm
Special cutting depth 90°/90° 60 x 120 mm
Crown moulding diagonal cut 45°/90° 168.00 mm
Inclination angle 47/47 °
Mitre angle 50/60 °
Dimensions (W x D x H) 713 x 500 x 470 mm
Weight 23.10 kg
Dust extraction connection dia. 27/36 mm
Special cut. depth 45°/90° (left) 40 x 120 mm
Special cutting depth 45°/90° (right) 20 x 120 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Crown moulding diagonal cut at 90°/90° 168.00 mm
Work height 900.00 mm
Sawing: Total vibration average, Ah 2.50 m/s²
Sawing: Uncertainty (noise) K 3.00 dB
Sawing: A-weighted sound power level, LWA 101.00 dB(A)
All Festool power tools include a 3-year wear-and-tear warranty, 2-day standard repair time, and 1-month satisfaction guarantee.
Did you know that every green piece on a Festool tool offers a modification that can be made? In this case, the patented 'fastfix' blade change system allows for a quick saw blade change, saving time. A cupped steel arbor nut prevents accidental over-torquing and damage to the saw and blade.
