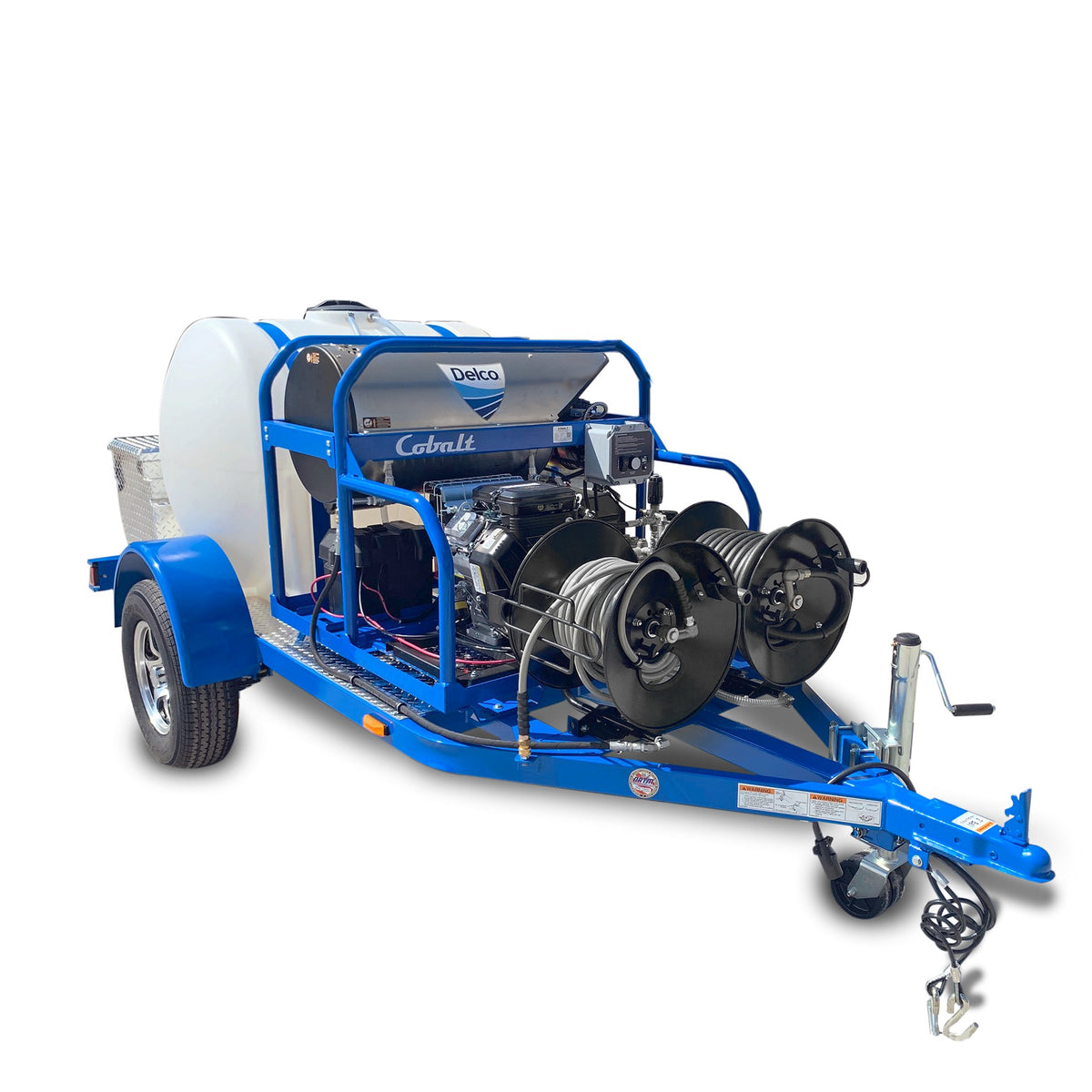

The Delco® Mobile Trailer DTRS33555251EDC11 (FNA part 95176) is a Stage 3 hot water pressure washer trailer. It delivers 3500 PSI at 5.5 GPM for 19,250 cleaning units. Power comes from a Honda® GX690 gas engine (688cc, recoil / key-start) belt-driving a General Pump® industrial triplex pump. An oil-fired 12VDC burner provides the hot water. The trailer carries a 525-gallon water tank, so it suits contractors and job sites where water supply is scarce or limited. Not for sale in California.
Performance & Burner
- 3500 PSI at 5.5 GPM (19,250 cleaning units)
- Hot water cleaning with a 12VDC oil-fired burner
- Burner fuels: No. 1/No. 2 diesel or kerosene
Engine & Pump
- Honda® GX690 688cc gas engine with recoil / key-start
- Low oil shutdown
- General Pump® industrial triplex pump, belt drive, 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose to tank
Water Supply & Hoses
- 525 gal. translucent polyethylene water supply tank with easy-to-read water level indicators
- 200' high-pressure hose reel with 3/8" x 100' steel-braided Armor Hose®
- 200' supply hose reel with 5/8" x 90' supply hose
- Quick-connect nozzles for a variety of cleaning applications
Trailer
- Two axles with a 5200 lbs. axle rating and leaf-spring suspension for a smooth ride
- Electric brake system
- ST225/71R15 tires
- 6" powder-coated C-channel frame with LED lighting
- 2-5/16" ball coupling (Stage 3)
- Jack with swivel wheel for easy maneuvering
- Dimensions: L 192" (includes tongue) x W 90" x H 62"
- Weight: 3500 lbs.
Included Accessories & Warranty
- Includes hose, lance, trigger gun and downstream injector
- Includes 15°, 25°, 40° and soap nozzles
- Warranty: 1-Year Trailer Frame, 5-Year Pump, 3-Year Engine
Have questions about the Delco® DTRS33555251EDC11 Mobile Trailer or need help choosing the right setup? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DTRS33555251EDC11 |
| Part Number | 95176 |
| Pressure | 3500 PSI |
| Flow | 5.5 GPM |
| Cleaning Units | 19,250 |
| Engine | Honda GX690 (Recoil / Key-start) |
| Displacement | 688cc |
| Pump | General Pump industrial triplex |
| Drive | Belt |
| Burner | 12VDC, oil-fired |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Water Tank | 525 gal |
| Axles | 2 (5200 lbs rating) |
| Tires | ST225/71R15 |
| Weight | 3500 lbs |
| Dimensions | L 192" (includes tongue) x W 90" x H 62" |
