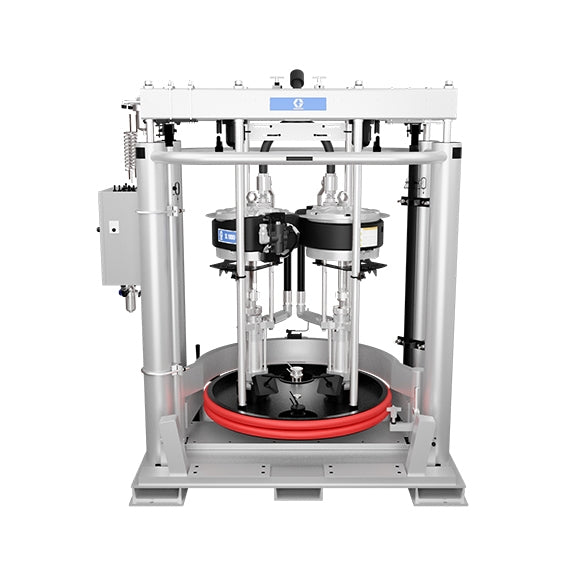

Pneumatic bulk unloader efficiently evacuates 300 gallon (1200 liter) magna drums or tote drums, supplying one-component, medium to high viscosity adhesive and sealant to industrial and automotive applications.
Bulk supply system works well when spraying underbody material and applying sealing beads to car and truck bodies.
Features
- XL 10000™ air motor has a modular design for easy maintenance
- XL motor air valves help eliminate ice-induced stalling
- Stainless steel parts withstand abrasive material, such as liquid applied sound deadener (LASD)
- Left handed pneumatic control minimizes changeover time in a tandem setup. As the drum on one side is being filled, the drum on the other side supplies the material.
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Spray, Fluid Transfer, Unloading |
| Configuration | Left |
| Container Type | Magna Drum |
| Control Options | Elec/Pneumatic |
| Material Container Volume | 300 Gallons |
| Material Container Volume (gal) | 300 |
| Maximum Air Inlet Pressure (psi) | 95 |
| Maximum Flow Rate (GPM) | 9.2 |
| Maximum Fluid Pressure (MPa) | 24 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Height (ft) | 11.75 |
| Maximum Height (in) | 141 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 23.5 |
| Maximum Working Pressure (psi) | 3400 |
| Minimum Height (ft) | 7.1 |
| Minimum Height (in) | 85.2 |
| Model | UniDrum |
| Number of Wipers | 2 |
| Overall Depth (in) | 51 |
| Overall Width (in) | 69 |
| Power Type | Pneumatic |
| Pump Model | Dura-Flo, XL 10000 |
| Pump Ratio | 35:1 |
| Pump Type | Double Ball |
| Ram Material | Carbon Steel |
| Type | Supply Unit |
| Weight (lb) | 3950 |
| Wetted Material | 17-ph Stainless Steel, Ductile Iron, Carbon Steel, Acetal, Zinc, PTFE, Leather, Chrome, Tungsten Carbide, 440 Stainless Steel, Electroless Nickel Plated |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Spray, Fluid Transfer, Unloading |
| Configuration | Left |
| Container Type | Magna Drum |
| Control Options | Elec/Pneumatic |
| Material Container Volume | 300 Gallons |
| Material Container Volume (l) | 1000 |
| Maximum Air Inlet Pressure (bar) | 6.55 |
| Maximum Air Inlet Pressure (kPa) | 655 |
| Maximum Air Inlet Pressure (kg/cm²) | 6.68 |
| Maximum Air Inlet Pressure (psi) | 95 |
| Maximum Flow Rate (L/min) | 34.8 |
| Maximum Fluid Pressure (MPa) | 24 |
| Maximum Fluid Pressure (bar) | 241 |
| Maximum Fluid Pressure (kPa) | 24132 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Height (cm) | 358.1 |
| Maximum Height (m) | 3.58 |
| Maximum Height (mm) | 3581 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Working Pressure (MPa) | 23.5 |
| Maximum Working Pressure (bar) | 235 |
| Maximum Working Pressure (kPa) | 23500 |
| Minimum Ambient Temperature (°C) | 1 |
| Minimum Height (cm) | 216.4 |
| Minimum Height (m) | 2.16 |
| Minimum Height (mm) | 2164 |
| Model | UniDrum |
| Number of Wipers | 2 |
| Overall Depth (cm) | 129.5 |
| Overall Depth (mm) | 1295 |
| Overall Width (cm) | 175.3 |
| Overall Width (mm) | 1753 |
| Power Type | Pneumatic |
| Pump Model | Dura-Flo, XL 10000 |
| Pump Ratio | 35:1 |
| Pump Type | Double Ball |
| Ram Material | Carbon Steel |
| Type | Supply Unit |
| Weight (kg) | 1791.7 |
| Wetted Material | 17-ph Stainless Steel, Ductile Iron, Carbon Steel, Acetal, Zinc, PTFE, Leather, Chrome, Tungsten Carbide, 440 Stainless Steel, Electroless Nickel Plated |
