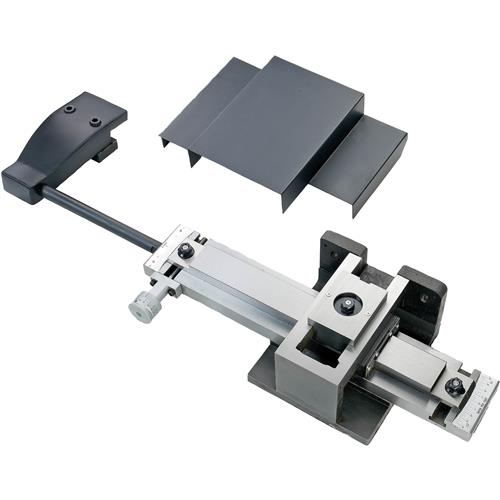

SB1085 Taper Turning Attachment for South Bend Big Bore Lathes
Upgrade your lathe for precise taper machining.
The SB1085 Taper Attachment mounts to the back bed way of your lathe. Accurate tapers can be cut without repositioning the attachment or having to offset the tailstock.
You can use the taper attachment without disengaging the cross-slide nut. This design allows the taper attachment to be functional at any time by simply tightening the two deadman clamp cap screws that lock the deadman clamp to the rear lathe way.
The SB1085 features an inch scale and a degree scale. An angle adjusting knob with fine threads achieves precise control when setting tapers.
This taper attachment fits our entire line of South Bend Big Bore lathes and needs to be ordered at the time of lathe purchase, as it will be installed at the factory.
SPECIFICATIONS
Taper per inch:
Max taper length:
Minor inch scale divisions:
Major inch scale divisions:
Taper angle range:
Minor angle scale divisions:
Major angle scale divisions:
Approximate shipping weight:
FEATURES
Fine-grain cast-iron body
Dual inch and degree scales
Fine screw taper adjustment knob
Three-way adjustable external gib
FITS:
SB1065F
SB1066F
SB1067F
SB1068F
SB1069F
SB1070F
SB1071F
Made in an ISO 9001 factory
Need help?South Bend offers U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the SB1085 comes with a 1-year warranty.
