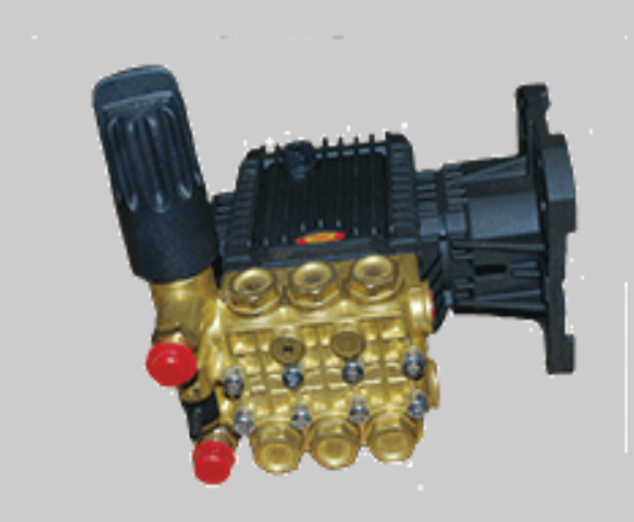

General Pump T1510G8UIA 3500 PSI @  4.0 GPM  14GHP 3400 1” Gas Flange Triplex Plunger Replacement Pressure Washer Pump
General Pump T1510G8UIA 3500 PSI @  4.0 GPM  14GHP 3400 1” Gas Flange Triplex Plunger Replacement Pressure Washer Pump

General Pump T1510G8UIA 3500 PSI @ 4.0 GPM 14GHP 3400 1” Gas Flange Triplex Plunger Replacement Pressure Washer Pump

Regular price
$649.00
Sale price
$649.00
Quantity must be 1 or more


Gas fange (SAE J609) hollow shaft - 1/2” BSP-F inlet, 3/8” BSP-F outlet

FEATURES:

  • Built-in unloader and downstream injector on the left side of the manifold
  • SAE J609B flange for direct couple to gasoline engines
  • Large lightweight connecting rods
  • New long life low and high pressure seals
  • Oversized roller bearings
  • Dual sight glasses
  • Forged brass manifold with an exclusive lifetime warranty

SPECIFICATIONS:

  • Triplex Plunger Pump
  • Maximum volume: 4.0 GPM
  • Maximum Discharge Pressure: 3000 PSI
  • Horsepower: 12.3 GHP
  • Maximum Pump Speed: 3400 RPM
  • Bore: 15mm
  • Stroke: 10mm
  • Crankcase Oil Capacity: 14 oz.
  • Maximum Fluid Temperature: 165 F.
  • Inlet Port Thread: 1/2" FPT
  • Discharge Port Thread: 3/8" FPT
  • Shaft Diameter: 1"
  • Weight: 18 lbs
  • Dimensions: 8.4"x8.4"x6.5"

;
