The parallelogram adjustment equals perfect alignment.

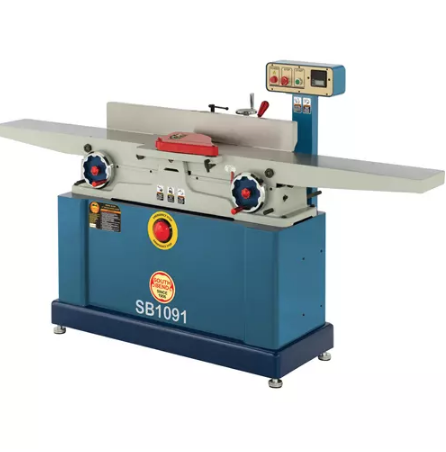

A 4-row helical cutterhead of the SB1091 8" Parallelogram Jointer ensures a cutting edge slightly angled for shearing action is always in contact with your workpiece. This provides the smoothest, flattest finish possible, whether surface planing or edge jointing.
The 36 indexable carbide inserts can each be rotated up to three times to expose a new sharp edge, meaning no sharpening or replacing knives every time an edge becomes dull or nicked.
The parallelogram table setup - where each table is mounted on four pivot points - allows for the smoothest, most precise table alignment possible.
Set the table height with dead-on accuracy with the digital readout for infeed table height and handwheel adjustment for both tables.
Other great features, such as a large emergency stop button on the cabinet stand below the cutterhead for safety and center-mounted cast-iron fence with rack-and-pinion lateral adjustment, make this South Bend jointer truly top-of-the-line!
TheH9893replacement inserts are available when the stock inserts get dull.
The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
South Bend tools come with a 2-year warranty which covers parts and assures the unit is free from factory defects.
The South Bend Customer Service and Technical Support Teams are U.S.-based.
Parts for the jointer are available online and shipped from the South Bend parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
Motor: 3 HP, 230V, single-phase, 12A
Maximum width of cut: 8"
Maximum depth of cut: 1/8"
Maximum rabbeting depth: 1/2"
Minimum stock length: 10"
Minimum stock thickness: 1/2"
Cutterhead diameter: 3-1/16"
Cutterhead type: 4-row helical with 36 inserts
Insert size and type: 15 x 15 x 2.5mm, indexable carbide
Cutterhead speed: 7000 RPM
Table size: 8" x 83"
Fence size: 38" L x 4-5/8" H
Dust port size: 4"
Footprint: 18" x 46"
Overall dimensions: 83" W x 26" D x 46" H
Approx. shipping weight: 730 lbs.
FEATURES:
Parallelogram table adjustment
Handwheel-adjusted tables
Digital readout for infeed table height
Precision-ground cast-iron tables
Rabbeting table
Heavy-duty center-mounted fence with rack-and-pinion lateral adjustment
