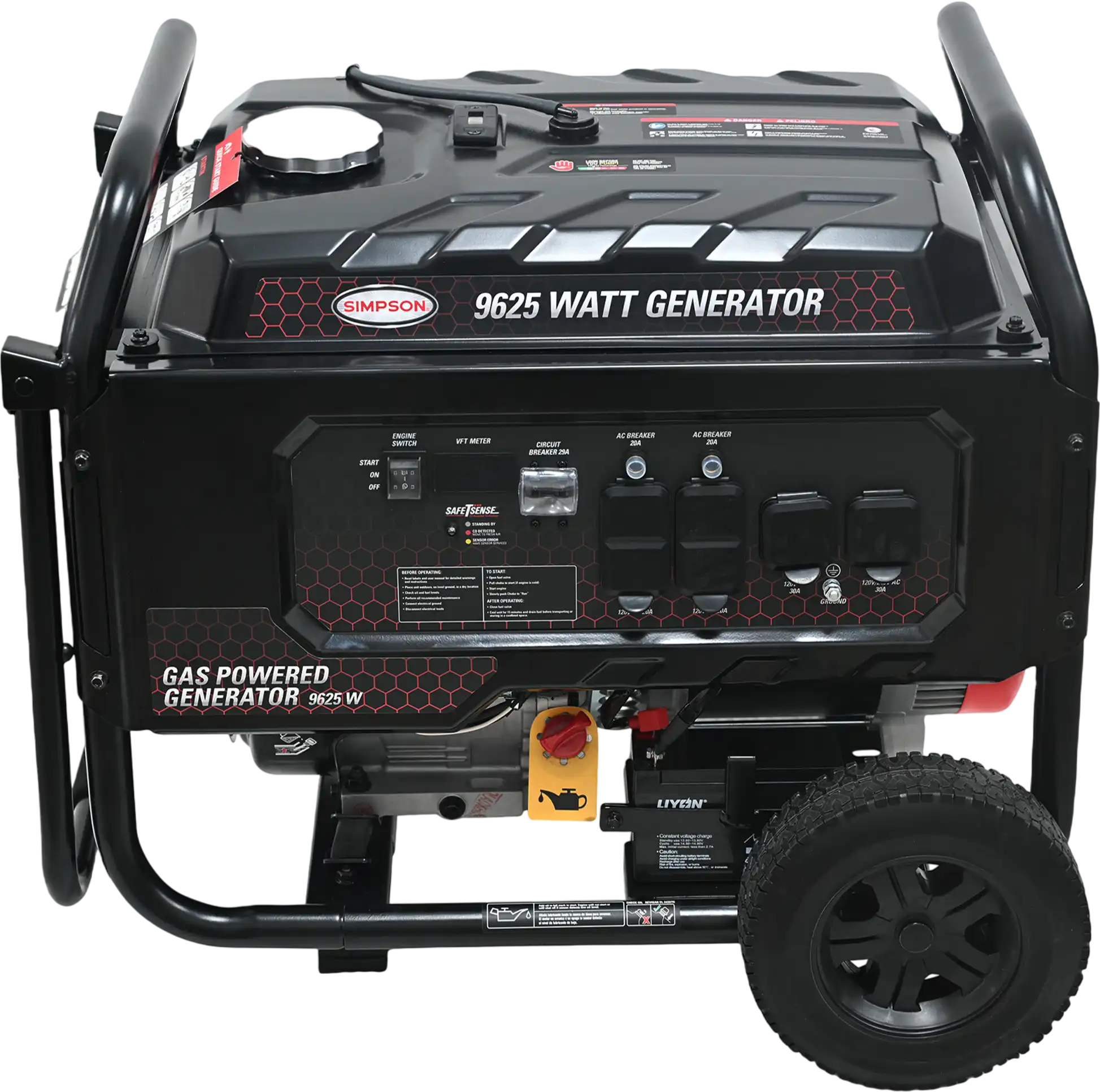

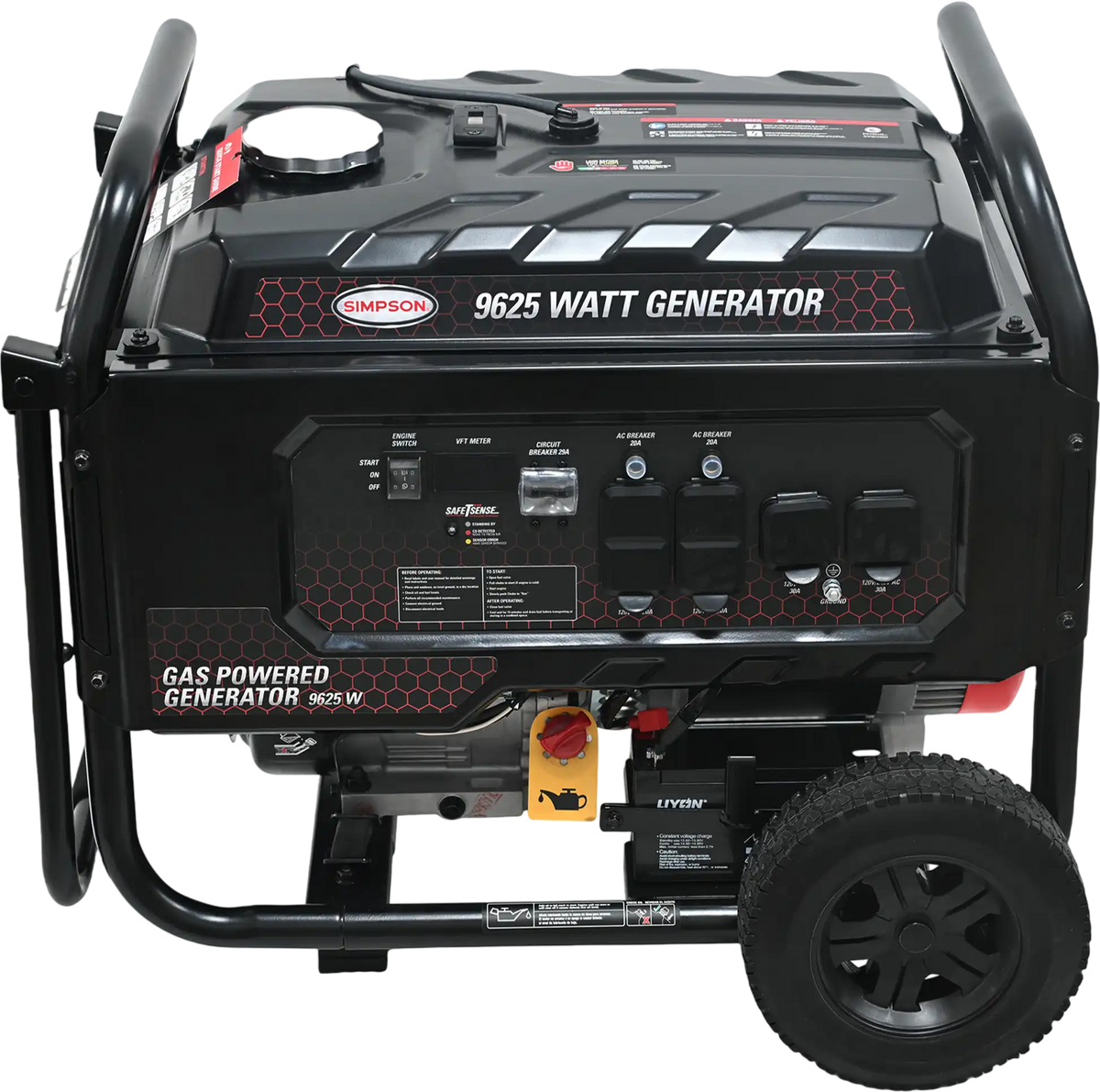

The Simpson® SF7796 (part 70134) is a gasoline-powered Commercial generator delivering 9,625 starting watts and 7,700 running watts from a Simpson R420 engine. It has a 7.1-gallon fuel tank, 4 outlets, and a heavy-duty open frame. It is built for powering job sites and serves as a reliable backup power source during outages. This is a 49-state model and is not for sale in California.
Power Output
- 9,625 starting watts
- 7,700 running watts

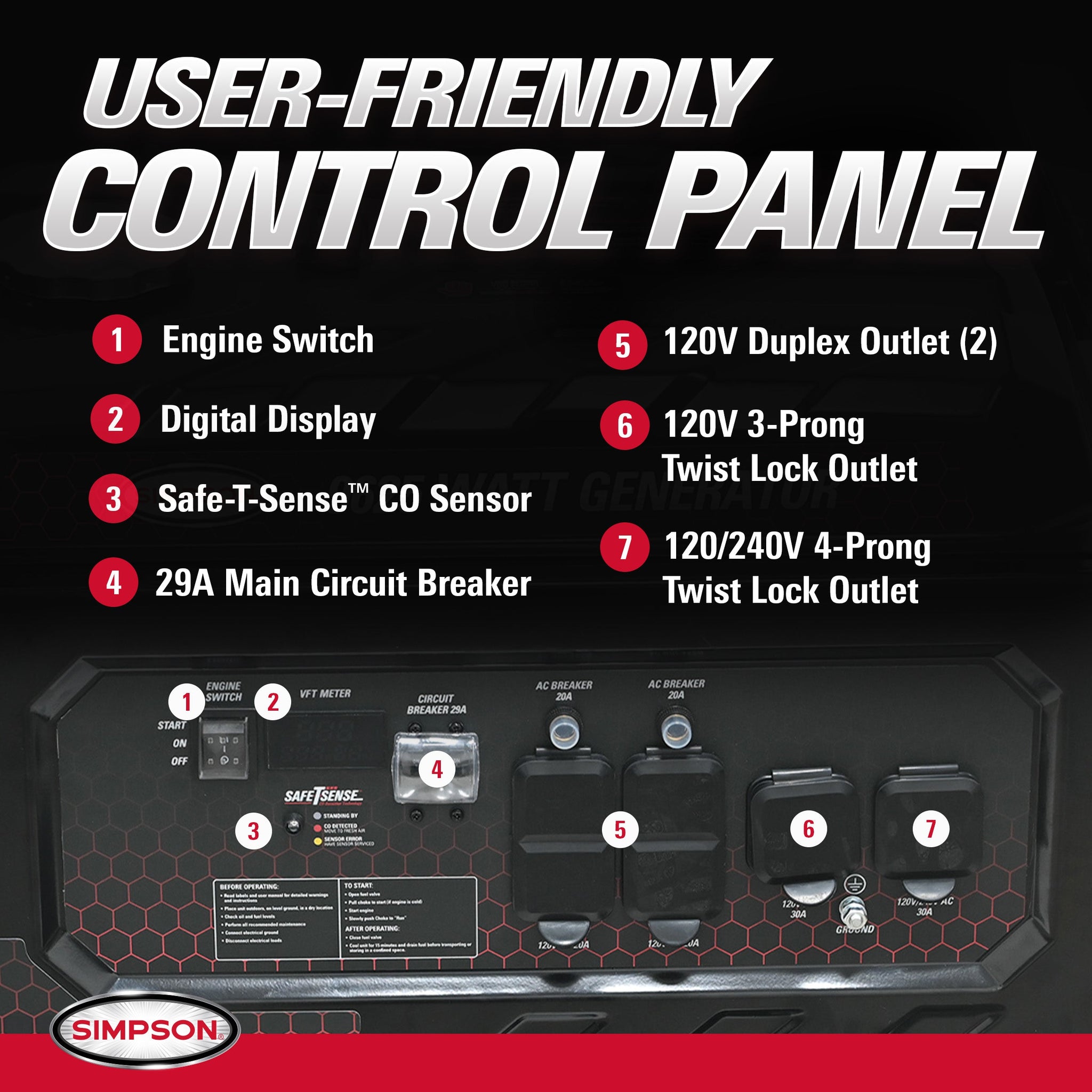

- 4 circuits/outlets
- Simpson R420 engine
Fuel & Run Time
- Gasoline powered
- 7.1-gallon fuel tank
- Run time of 9 hours at 25% load
Construction
- Heavy-duty open frame
- Larger size and enhanced durability, part of the Simpson Commercial generator line
- Dimensions: 29" L x 23" W x 23" H
- Weight: 175 lbs.
Applications
- Energizing job sites
- Backup electricity during power outages
Compliance
- 49-state model. Not for sale in California.
Have questions about the Simpson SF7796 generator? Call Pittsburgh Spray Equipment at 888-714-1410. Our team is happy to help.
Specifications
| Brand | Simpson |
| Model | SF7796 |
| Part Number | 70134 |
| UPC | 6 36893 45012 9 |
| Power Type | Gasoline |
| Engine | Simpson R420 |
| Starting Watts | 9625 |
| Running Watts | 7700 |
| Fuel Tank Capacity | 7.1 gal |
| Number of Circuits/Outlets | 4 |
| Run Time | 9 hrs @ 25% load |
| Frame | Heavy-Duty Open Frame |
| Dimensions | 29" L x 23" W x 23" H |
| Weight | 175 lbs. |
| Compliance | 49-State (Not for sale in California) |
