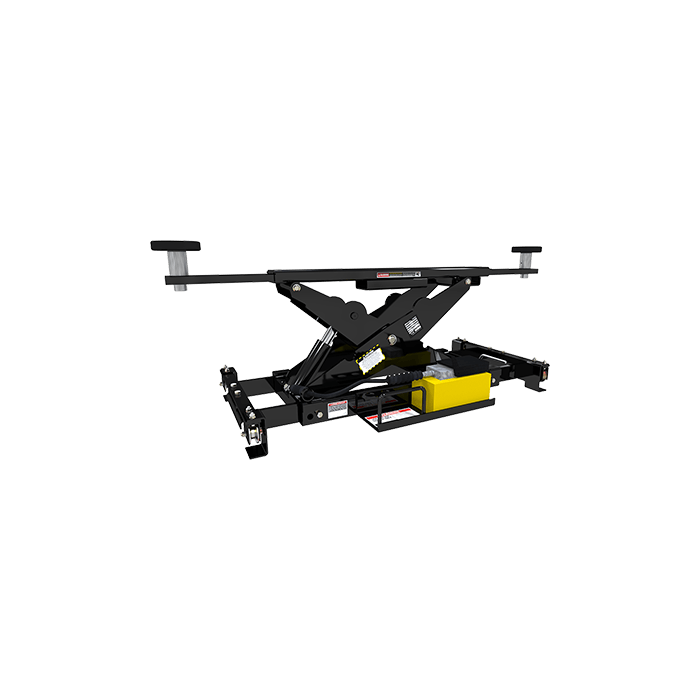

RJ45LP 4,500-lb. Capacity  Rolling Bridge Jack  Easy-Roll Wheels  Low-Profile

RJ45LP 4,500-lb. Capacity Rolling Bridge Jack Easy-Roll Wheels Low-Profile

Regular price
$2,911.00

See Lower Price in Cart

Quantity must be 1 or more


Specifications RJ45LP
  • 4,500-lb. lifting capacity
  • Easy-Roll Wheels
  • Low-profile minimum drive-over height, wider reach lifting points
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

[[Model]] Specifications

Lifting Capacity
4,500 lbs. (2,041 kg)
Suitable Lift Model(s)
HD-7 Series, HD-9 Series, GP-9 series

Min. Drive-Over Height*

Pad Only:
4.25" (108 mm)
Pad + 2.75" Adapter:
7" (178 mm)
Pad + 5.5" Adapter:
9.75" (248 mm)

Max. Lifting Height*

Pad Only:
15.25" (387 mm)
Pad + 2.75" Adapter:
18" (457 mm)
Pad + 5.5" Adapter:
21" (533 mm)

Reach

Support Base Width:
35.5" (902 mm) - 46.5" (1,181 mm)
Max. Arm Reach:
61" (1,549 mm)
Min. Arm Reach:
42" (1,067 mm)
Time to Full Rise:
55 seconds
Pump:
Air/Hydraulic
Air Pressure:
125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure:
2,490 PSI
Power Requirement:
None
Shipping Weight:
306 lbs. (139 kg)
Shipping Dimensions:
41.25" x 25" x 13" (1,048 mm x 635 mm x 330 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
