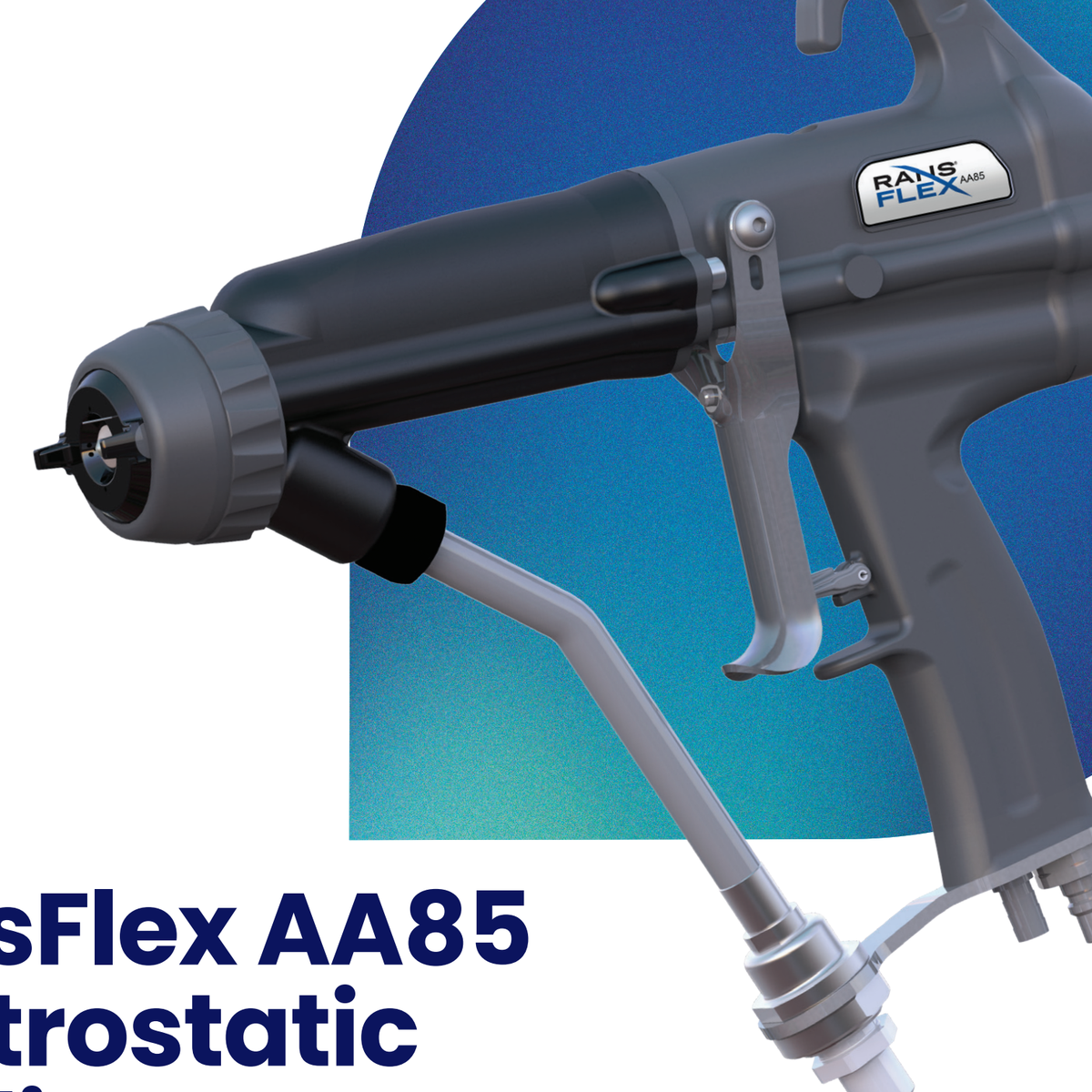

The RansFlex AA85 is a best-in-class air-assisted airless electrostatic applicator powered by an onboard generator, so no external power supply is needed. DeVilbiss atomization technology is paired with Ransburg power for superior atomization and high transfer efficiency, backed by a 3-year limited warranty.
What is included
- Gun kit; to retain agency approvals the AA85 must be operated with one of the manufacturer-approved air hoses: Standard air inlet 80558-05 (5 m), 80558-10 (10 m), 80558-15 (15 m), 80558-20 (20 m); QD air inlet 80558-06 (5 m), 80558-11 (10 m), 80558-16 (15 m), 80558-21 (20 m)
- Customized gun kits with hoses, trigger sizes and spray tips are available on request
Key features
- Ergonomic fit, feel, balance and controls reduce operator fatigue
- Redesigned sleek, smooth exterior makes cleaning and maintenance fast and easy
- Three levels of generator protection: divorced generator air supply cartridge, sealed nozzle/atomization passages and strategic turbine location
- Meets FM US and Canada, ATEX and UKEX
- Lower operating and maintenance costs: simpler, robust design with better tip sealing and lower-cost wear parts
- Superior air cap performance at lower inlet pressure; indexing air cap and quick voltage on/off knob
- Optional quick-disconnect air hose at the handle reduces "treeing"; 20% fewer parts than previous models
Specifications
| Weight without hoses | 715 g (25.2 oz) |
|---|---|
| Height / width (max) / length | 229 mm (9 in) / 51 mm (2 in) / 279 mm (11 in) |
| Maximum operating voltage | 85 kV |
| Maximum current draw | 90 uA |
| Minimum air inlet pressure | 3.0 bar (45 psig), dynamic at handle inlet |
| Paint conductivity | 0.1 MOhm to infinity |
| Maximum fluid pressure | 207 bar (3,000 psig) |
| Material | Solvent-based coatings |
Manuals and literature
Request a quote or more information — call (888) 714-1410 or use the Request a Quote button and we will confirm fit, availability and pricing for your application.
