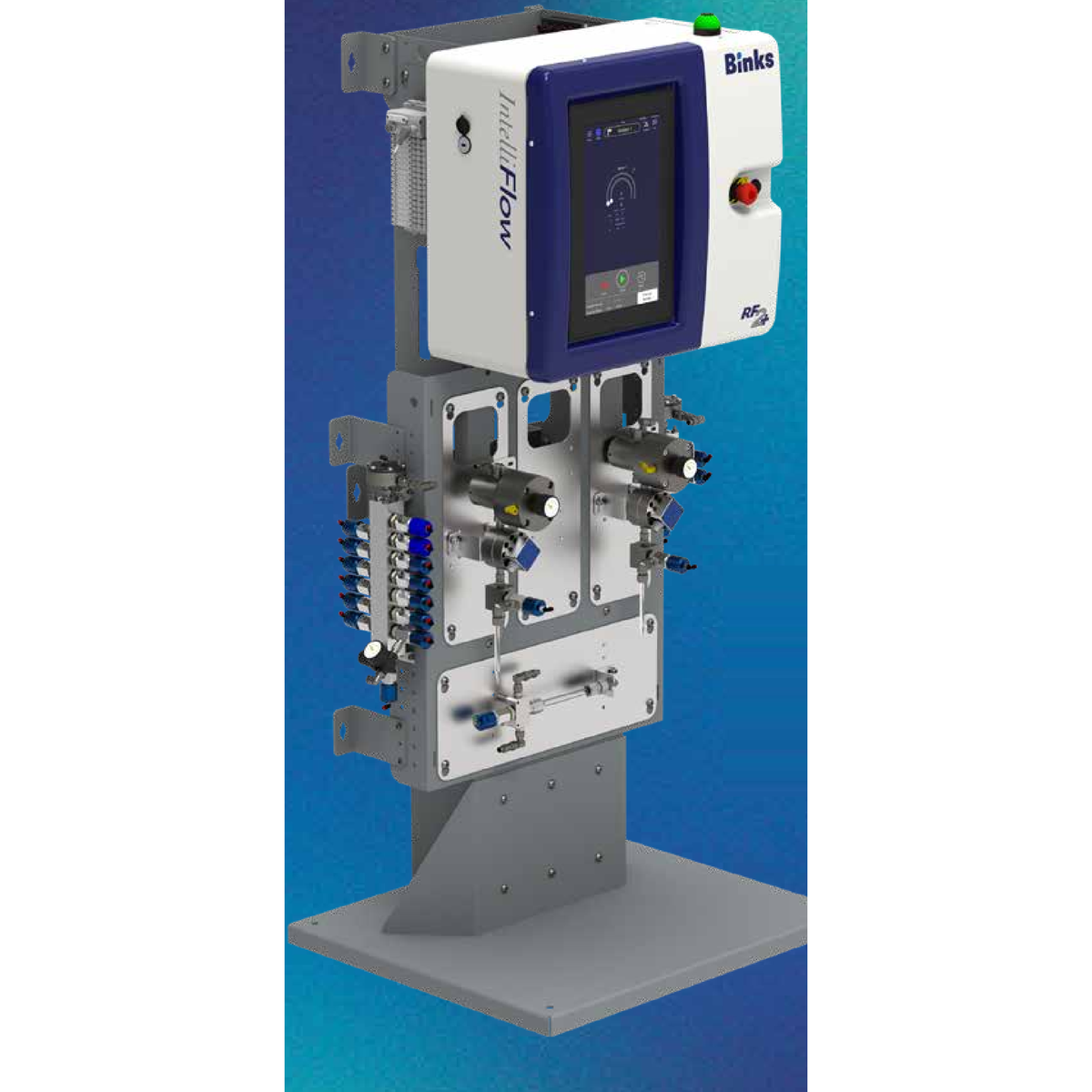

The Binks IntelliFlow RF2+ is a multi-component metering, mixing and flow control proportioner designed to maximize process savings on almost any automatic and manual applicator system, including static, reciprocator, flatline and robot applications. Closed-loop flow and ratio control with a 15-inch color touchscreen and cloud-based connectivity.
What is included
- 15" full-color touchscreen with EtherNet/IP communication
- Solenoids for up to 12 colors, 4 catalysts
- Inlet pressure regulation
- Solvent and air chop valves on resin stack (low pressure only)
- Solvent valve on catalyst stack
- 2 high-resolution gear flowmeters
- 2 closed-loop flow control regulators
- Flushable dynamic mix block
- Wall mounting hardware
Key features
- Capable of up to 100 colors and catalysts; 1K, 2K and 3K operation
- Modular and scalable design that grows with your process
- Closed-loop flow and ratio control; dynamic mixing reduces paint and solvent waste during color changes
- 15-inch color touchscreen; EtherNet/IP standard, optional modules for PLC, robot or SCADA integration
- Cloud-based remote monitoring and troubleshooting
- Custom configurations (3K, alternative flowmeters, color stacks) available on request
Specifications
| Dimensions | 32" x 28" x 69" (81 x 71 x 175 cm) |
|---|---|
| Weight | 300 lbs (136 kg) |
| Ambient temperature | 32-122 F (0-50 C) |
Manuals and literature
- IntelliFlow RF2+ Brochure 03-437-01
- IntelliFlow RF2+ Installation Manual 77-3165-1 EN
- IntelliFlow RF2+ Operation Manual 77-3165-2
- IntelliFlow RF2+ Service Guide 77-3165-3 EN
- IntelliFlow RF2+ Kits and Spare Parts Manual 77-3165-4 EN
- IntelliFlow RF2+ Programming Manual 77-3165-5 EN
