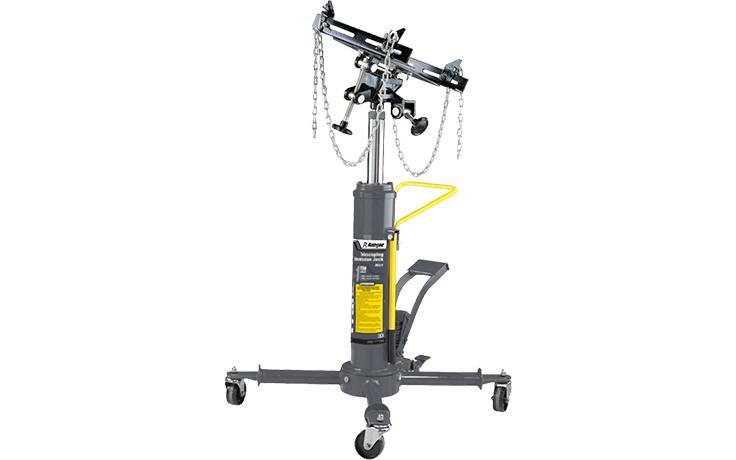

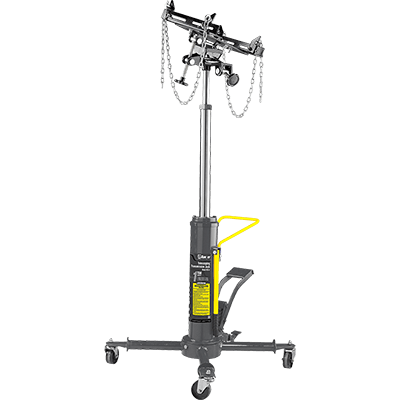

5150404 RTJ-1 RANGER 1 Ton Capacity Telescoping Transmission Jack
The solid RTJ-1 TransJak™ transmission jack has a 1-ton lifting capacity and is built out of 200+ pounds of quality material. This telescoping transmission jack has been an industry favorite since we first released it.
Features
- Foot-operated pump
- Two-stage design

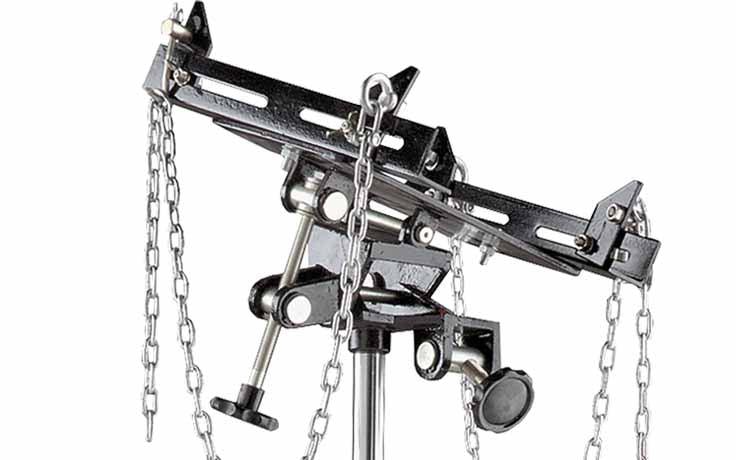

- Adjustable saddle tilts two ways
- Saddle slides the other two directions
- Heavy-steel construction for maximum durability
- Double-sealed hydraulics to prevent contamination for longer service life
- Heavy-duty chain anchors keep loads secure
- Steel roller bearings are included underneath the table and on the ends of the adjustment screw to minimize friction and allow for effortless table adjustment even when loaded
- Fully adjustable universal saddle adapts to passenger car and light truck automatic transmissions and transaxle assemblies
- Fine-thread adjustment screws with oversized knobs make adjusting the table a cinch
- Two-stage design provides an extended lifting height of over 73"
- Hardened chrome-moly ram prohibits rust from entering hydraulic system
- Two individual push / pull handles for extra handling capability
- System overload system prevents the jack from being used beyond its rated capacity
- Extra-wide base and four heavy-duty swivel ball bearing casters provides a low center of gravity and exceptional maneuverability
| Lifting Capacity – 1st Stage | 2,000 lbs. (907 kg) |
| Lifting Capacity – 2nd Stage | 1,000 lbs. (454 kg) |
| Lowered Height | 37" (940 mm) |
| Raised Height | 73" (1,854 mm) |
| Base Dimensions | 39" x 39" (991 mm x 991 mm) |
| Shipping Weight | 188 lbs. (85 kg) |
| Shipping Dimensions | 23" x 15" x 33" (597 mm x 381 mm x 838 mm) |
