QuickJack 8000TLX Extended Portable Car Lift - 8,000-lbs. Capacity (5175673)

Big Trucks Get the Long-Reach QuickJack Treatment

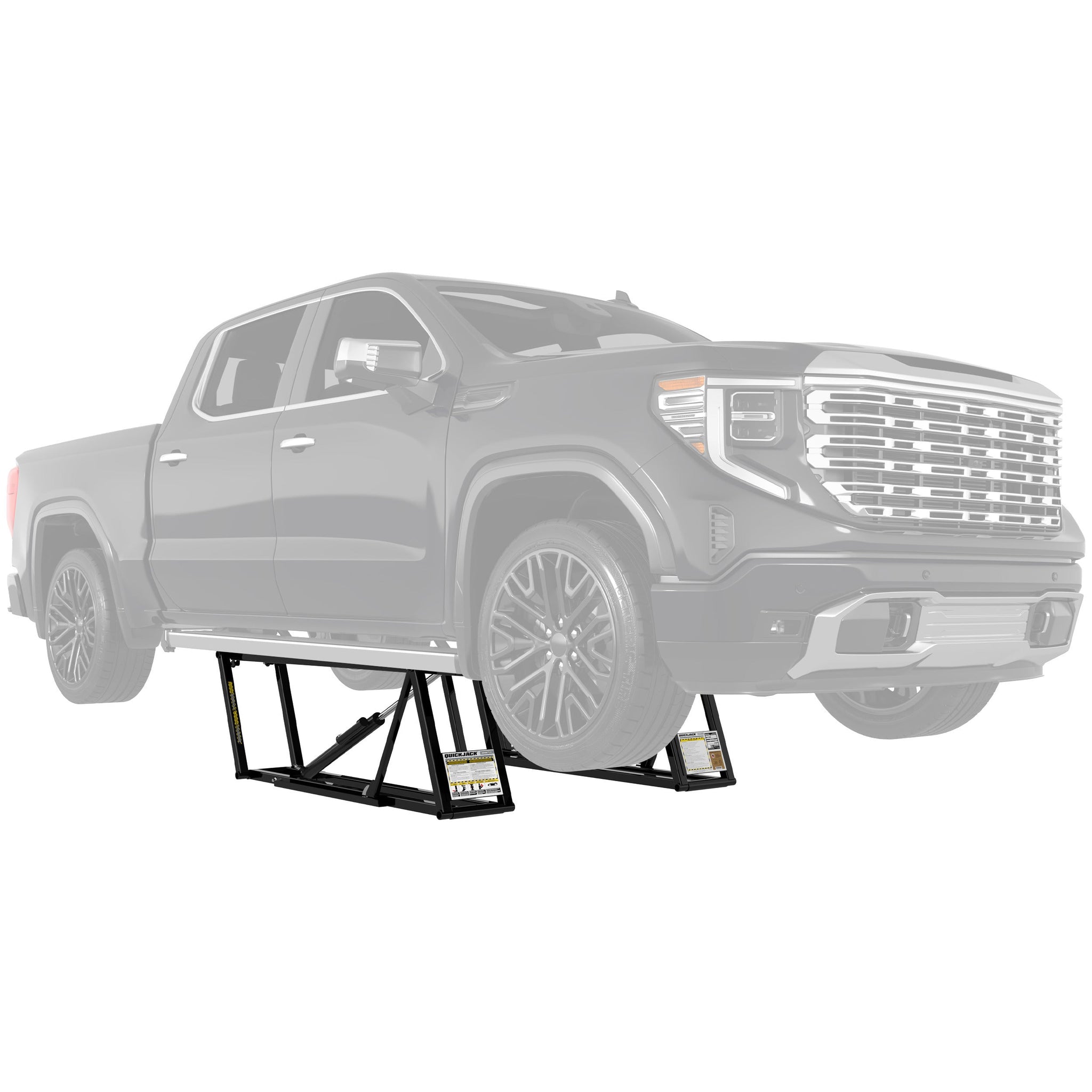

The QuickJack 8000TLX Extended Portable Truck Lift is built for the big jobs that need both reach and strength. With an 8,000-lb. capacity, extended 76-inch frames, and up to a 66-inch lift point reach, the 8000TLX is engineered for heavy-duty trucks, SUVs, long-wheelbase vehicles, and specialty sedans that standard portable lifts cannot properly cover.

This is the highest-capacity extended-length portable lift in the QuickJack lineup, giving users the ability to lift larger vehicles without committing to a permanent garage lift. It still reaches max rise in about 30 seconds, collapses to a low 3.5-inch profile, and gives home garages, shops, driveways, and off-site work areas serious lifting power in a fully portable package.

Extended-Length Power for Wide Lift Point Spreads

The 8000TLX was designed for vehicles with lift points that stretch beyond the reach of standard-length TL frames. Its TLX frame layout adds the extra length needed for long wheelbases, with a 43-inch minimum lift point spread, 66-inch maximum lift point spread, and 76-inch overall frame length.

That longer frame geometry makes the 8000TLX a strong choice for trucks, SUVs, and larger vehicles that need a more generous lift point range. For users stepping up from standard portable car lifts, this model delivers the extra reach needed for heavier and longer vehicles while keeping the open-center access QuickJack is known for.

Synchronized Hydraulics Built for Heavier Vehicles

The redesigned hydraulic system uses a pressure-compensated flow divider and independent shut-off solenoids to help both frames rise and lower in sync. That balanced movement is especially important when lifting heavier vehicles, where controlled frame travel and stable operation matter every time.

Factory preassembled hydraulics help simplify setup, reduce connection headaches, and get the lift ready faster. Reinforced frame geometry, thicker cross members, improved welds, and enhanced pivot joints give the 8000TLX the rigidity needed for repeated use under higher loads.

Portable Truck Lift Strength Without Giving Up Floor Space

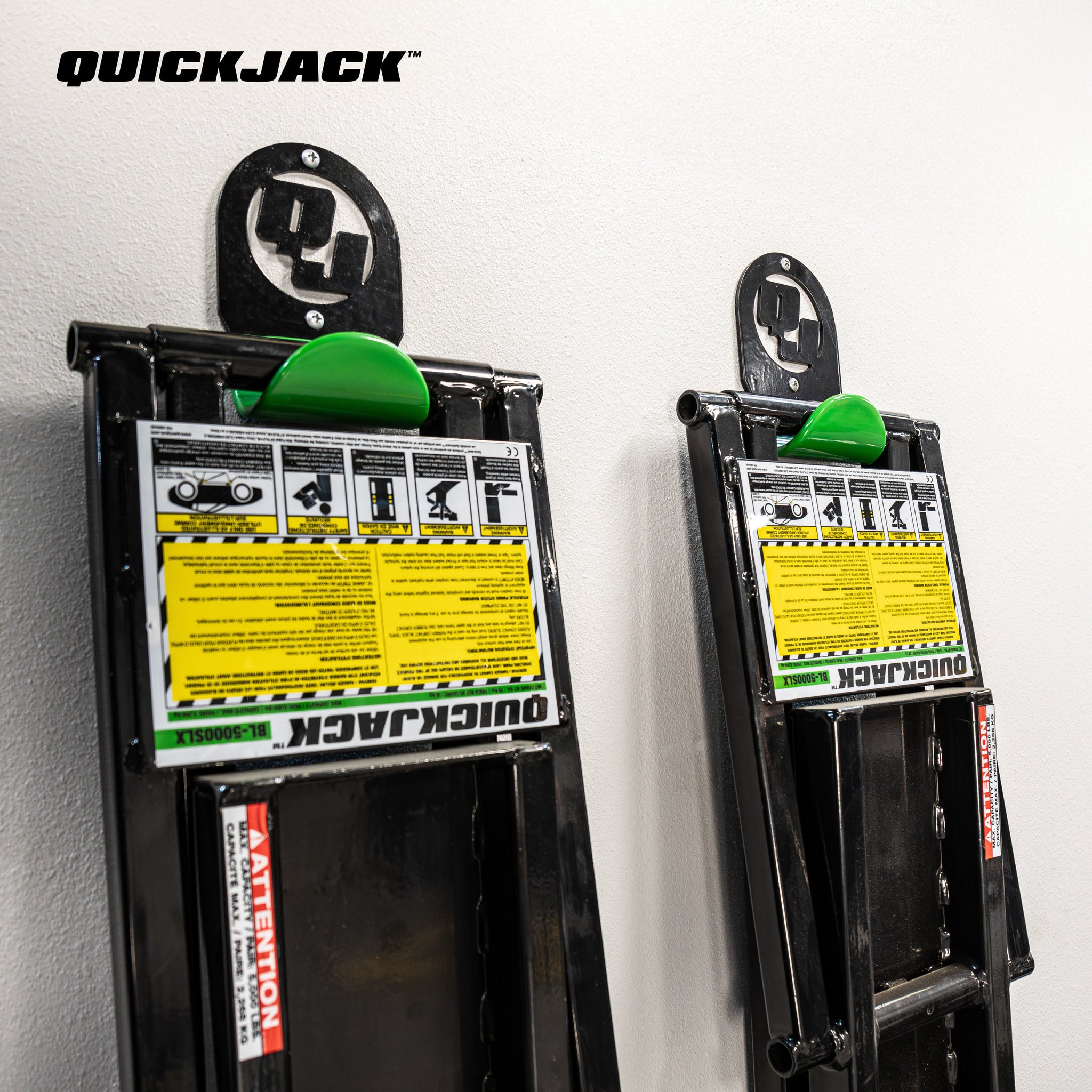

Despite its size and capacity, the 8000TLX remains a collapsible portable lift that can be rolled, moved, and stored using the built-in urethane wheels. It gives truck and SUV owners a powerful alternative to permanent lifts, especially in garages or shops where floor space has to stay flexible.

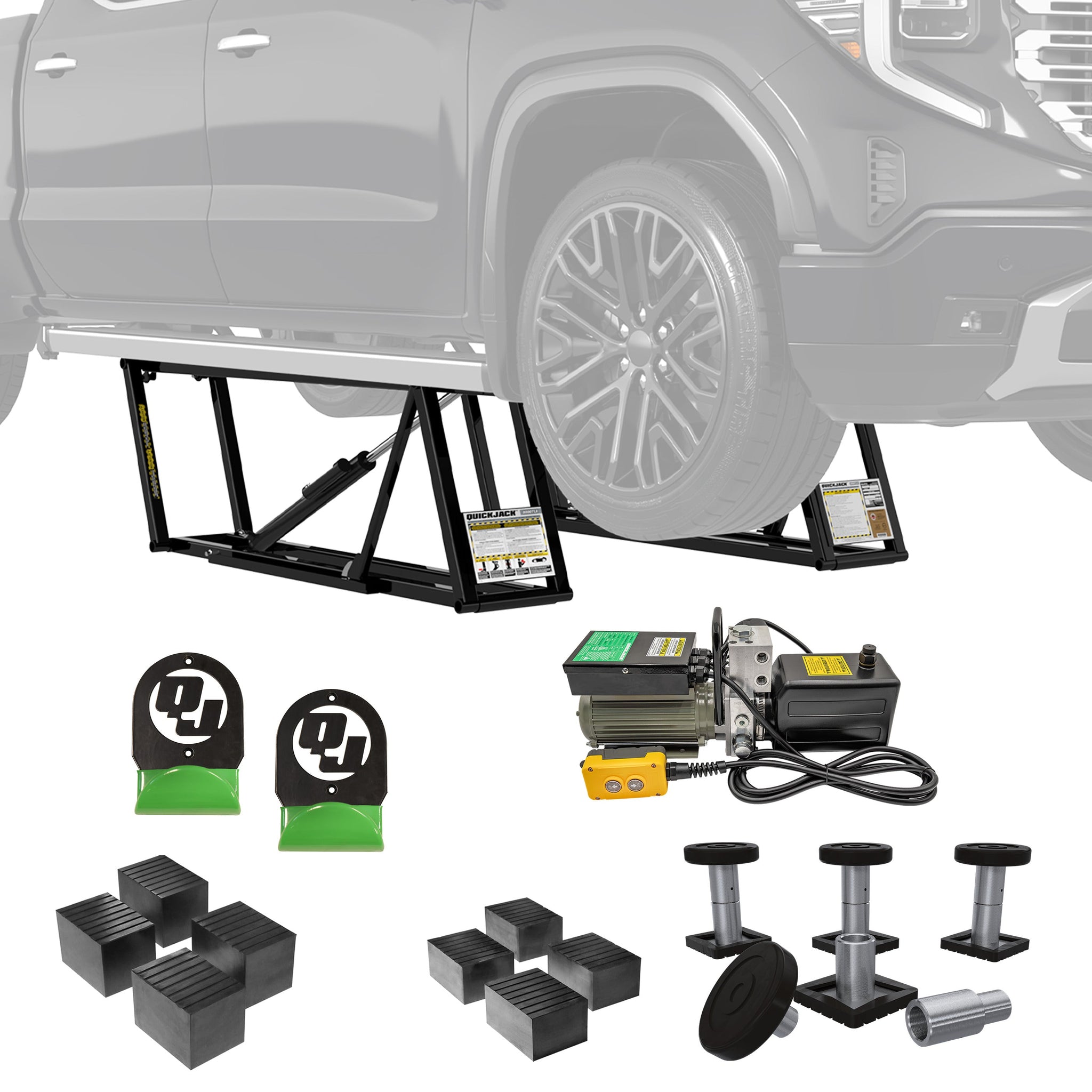

The optional Truck and SUV Adapter Kit adds more undercarriage access for higher-clearance vehicles, making the 8000TLX even more useful for large daily drivers, work trucks, and weekend projects. It is the long-reach QuickJack for people who need portable lifting power that does not tap out when the vehicle gets big.

8,000-lb. Lifting Capacity

Built for larger SUVs, trucks, and long-wheelbase vehicles that need more strength than lighter portable lift models can offer.

Extended 76-Inch Frames

The TLX frame length provides a 66-inch max lift point spread for vehicles with wider manufacturer-recommended lift points.

About 30-Second Lift Cycle

Reaches max rise in about 30 seconds, helping speed up tire service, maintenance, inspections, and garage work.

Synchronized Hydraulic System

A pressure-compensated flow divider and independent shut-off solenoids help both frames lift and lower in sync.

Factory Preassembled Hydraulics

Ships with the hydraulic system preassembled to reduce setup time and get users lifting faster.

Recommended Add-ons

Features

• 8,000-lb. lifting capacity
• Extended-length portable truck lift design
• 76-inch frame length
• 66-inch max lift point spread
• 43-inch minimum lift point spread
• 24.5-inch lift height
• Reaches max rise in about 30 seconds
• 3.5-inch collapsed height
• Pressure-compensated flow divider
• Independent shut-off solenoids
• Factory preassembled hydraulics
• Automatic dual-position safety locks
• Thicker cross members and improved weld geometry
• Enhanced pivot joints for greater stability
• Compatible with optional Truck and SUV Adapter Kit

Specifications
