STANDARD FEATURES

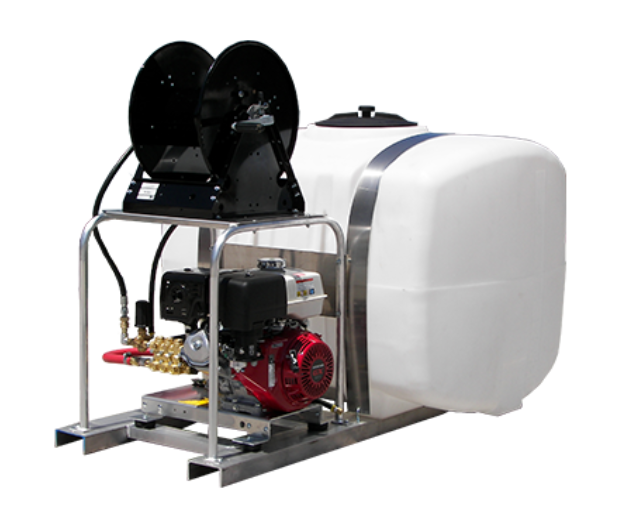

Pro-Skid units can be combined with various cold water pump/engine units to achieve a “Totally Self Contained” 100 or 200 gallon tank feed system. Available pressures of 2400 PSI to 4000 PSI and flow rates up to 10 GPM in belt, gear, and direct drive configurations. Add the tank/skid model with desired equipment options listed to design a custom Honda powered unit built to your specifications. All skids are constructed of aircraft grade aluminum which are chemical resistant and rustproof. All units feature adjustable pressure unloader valve. These skid units mount quickly and securely into truck beds, trailers or other vehicles.

NOTE: All 100 gallon units are factory assembled (200 gallon units require minor assembly)

Dimensions:

AST-100 with AHR250
39″W x 62″L x 44″H
39″W x 62″L x 31″H (w/o hose reel)

AST-200 with AHR250
49˝ W x 62˝ L x 53˝ H
49˝ W x 62˝ L x 40˝ H (w/o hose reel)
Call factory for more configurations.

NOTE: All units are completely factory assembled, tested in the USA, and delivered ready to operate.

STANDARD ACCESSORIES

• Gun/wand assembly w/ quick connects
• 50′ high pressure hose w/ quick connects
• Chemical injector assembly w/ quick connects
• 4 color-coded QC spray nozzles
• 1 color-coded QC chemical nozzle

Note: All 100 gallon units are factory assembled (200 gallon units require minor assembly)

GX630 Model comes with remote 6 gallon poly fuel tank- Non Carb Evaporative Compliant-Not for sale to California-See Options for California compliant upgrade.

AVAILABLE OPTIONS
ASR100– Aluminum Hose Reel Support Assembly with Mounting Hardware
KBP100– Tank Feed Unloader Bypass Return and Hose Assembly
KTF100– Float Valve Assembly – (shuts water off when tank is full)
KTD075- Tank Drain, 3/4″
LWS100- Low Water Shutdown – (shuts engine off when water level is low)
TANK, ALUMINUM SKID & INLET PLUMBING KITS

AST050– 50 Gallon Tank, Bands, Aluminum Skid, and Inlet Plumbing
AST100– 100 Gallon Tank, Bands, Aluminum Skid, and Inlet Plumbing
AST200– 200 Gallon Tank, Bands, Aluminum Skid, and Inlet Plumbing
HOSE REELS

AHR100-1 GP Hose Reel with Hardware, 100′ x 3/8″ maximum
AHR200-1 GP Hose Reel with Hardware, 200′ x 3/8″ maximum
AHR250-1 Hosetract Heavy Duty Hose Reel with Hardware, 250′ x 3/8″ maximum
AHR250-3 Titan S.S. Hose Reel with Hardware, 250′ x 3/8″ maximum
GX630 Model Only: CCK006 Remote 6 Gal. Poly Fuel Tank w/ Carbon Canister-California Compliant Upgrade

DIMENSIONS:

AST-100 with AHR250
39” W X 62” L X 44” H (W/O HOSE REEL)
39” W X 62” L X 31” H
AST-200 with AHR250
49” W X 62” L X 53” H (w/o hose reel)
49” W X 62” L X 40” H

Call factory for more configurations
