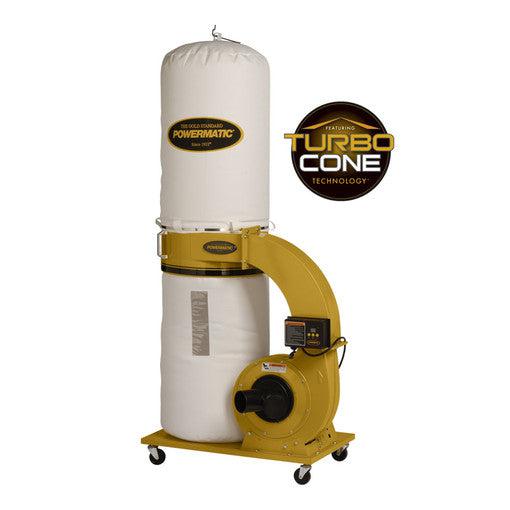

Powermatic - PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit

Powermatic - PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit

Regular price
$1,278.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Powermatic 1791078K Description

    The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.

    Powermatic 1791078K Features

    • TurboCone improves chip separation and collector bag packing efficiency
    • The cone eliminates premature filter clogging for sustained performance
    • Remote-controlled digital timer can be programmed for up to 99 minutes
    • All-metal duct construction for rigidity and improved air flow
    • Dual 4" dust ports for simultaneous collection from two machines
    • 1-3/4HP motor offers plenty of power for effective air movement
    • Cloth collection bag with view window uses snap ring for rapid installation/removal
    • 10 cubic feet capacity collection bag reduces number of bag changes.
    • Tall filter bag requires less cleaning due to the larger surface area
    • Four swivel casters for easy maneuverability

    Powermatic 1791078K Specifications

    Motor Voltage (V.) 115/230
    Impeller Diameter (In.) 12
    Prewired Voltage (V.) 115
    Impeller Fins 6
    Recommended Circuit Size (Amps.) 20/15
    Motor Current (Amps) 15/7.5
    Static Pressure (WC) 11.31
    Filter Bag/Canister Length (In.) 48
    Number of Air Inlets 1(6") or 2(4")
    1-Hose Connection Diameter (In.) 6
    Motor Phase 1
    Motor Power (HP) 1-3/4
    2-Hoses Connection Diameter (In.) 4
    Air Flow @ 6" (CFM) 1,064
    Sound Rating (DB) 75 - 90
    Efficiency (Micron) 30
    Collection Bag Capacity (Cu. Ft.) 10
    Bag Diameter (In.) 20
    Collection Bag Length (In.) 30
    Impeller Material Steel
    Velocity @ 6" (FPM) 5,374

    ;
