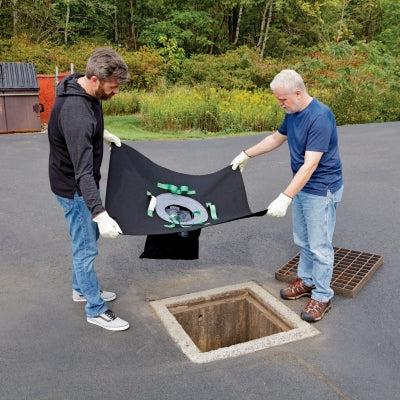

Catch basin insert protects drains of all sizes in high-traffic areas while filtering oil, sediment, debris and trash from stormwater runoff.
- Designed for superior filtration and easy handling
- Frameless design is ideal for small drains of any shape, even shallow drains
- Heavy-duty, high-visibility strap allows easier handling and removal
- Four-stage filtration process treats more water and removes more oil than basic storm drain filters
- Overflow ports help prevent blockage during high water flow
- Affordably priced so you can protect more drains at your facility; no need to pick and choose which ones you can afford to safeguard
- Fits circular drain sizes 20" to 30" in diameter
- Fits irregular, rectangular and square drain sizes 20" to 30" width to 20" to 36" length
- Trim product to allow 3" of material to extend above grate
- Pore size is 0.074 mm, 74 microns, 0.0029 inches or 200 sieve
| Style | Inside the Drain |
| Use With | Storm Drains 20" to 30" W & 20" to 36" L; Round Drains 20" to 30" Dia. |
| Dimensions | 36" W x 42" L x 17" H |
| Absorbency | Up to 1.38 gal. |
| Application | Disposable |
| Color | Black |
| Brand | PIG |
| Drain Shape | Round; Square; Rectangular |
| Max Flow Rate | 500 gal./Minute |
| Opening Dimensions | 10" Dia. |
| Special Feature | Trim to Fit |
| Substance Filtered | Oil; Fuels; Sediment; Floatables |
| UV Resistant | Yes |
| Sold as | 1 each |
| Weight | 1.5 lbs. |
| Composition |
Insert Strips and Ring: PET Straps: PET |
| UNSPSC | 47101514 |
| Pigalog® Page Number | Page 171 |
