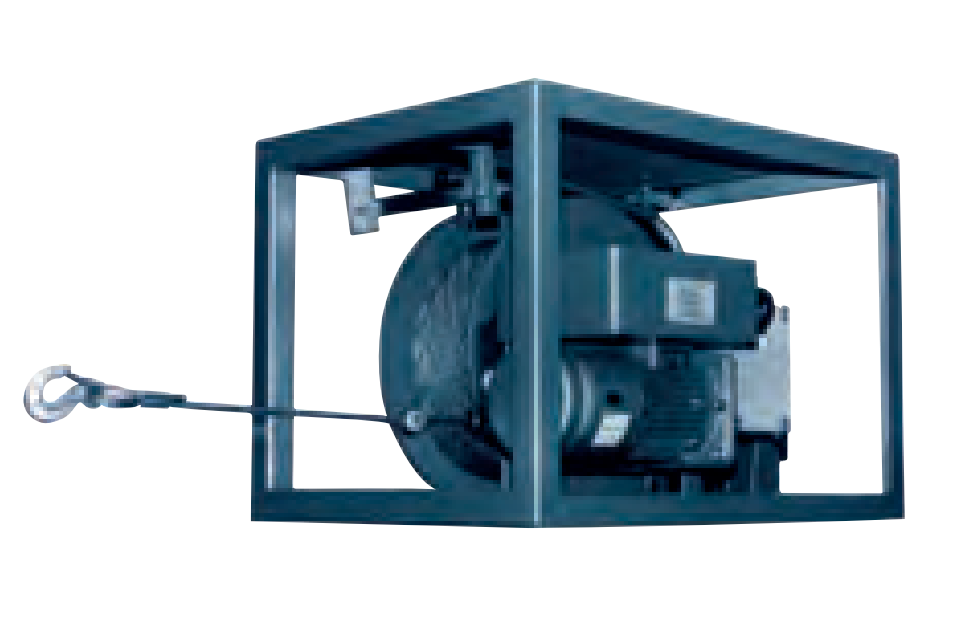

Tractel's Gripwinch Wire Rope Hoist is a motorized traction hoist built for lifting and pulling in a wide variety of applications. The mechanism is engineered in a way that the wire rope runs through the Gripwinch without being stored, allowing unlimited wire rope length capability. For easier manipulation and storage, the Gripwinch is available in several models, with or without winder, free standing or mounted on a frame, electric, hydraulic or air operated.
Features:
Features:
- Extremely compact
- Works in any direction
- Single line capacity: 700 to 6,600 lbs.
- Power Supply - 110, 220V/1ph, 220V/3ph, 480V, air, hydraulic
- Unlimited length of wire rope
- Operating Speed: – 17/35, 17/70, 35/70 fpm dual speeds available for 3 phase versions
- Control Type: 10 ft. hardwired pendant control, detachable control, direct control, or central control
| MODEL | MG505-50 |
| CAPACITY | 1,100 lbs. |
| SPEED | 2/10 m/min |
| MOTOR TYPE* | Bi |
| kW | 0.55/1.5 |
| AMPS | 3.7/5.5 |
| WEIGHT | 160 lbs. |
| DIMENSIONS (in) | |
| Length | 29.1 |
| Width | 18.9 |
| Height | 22 |
Note: The Gripwinch hoist is a special order item only. Prices DO NOT INCLUDE wire rope. Please order required length with welded tip and hook separately. Unit includes frame, winder, 3 m pendant, end of rope sensor and upper limit switch. Hoists also available without frame and wire rope winder.
