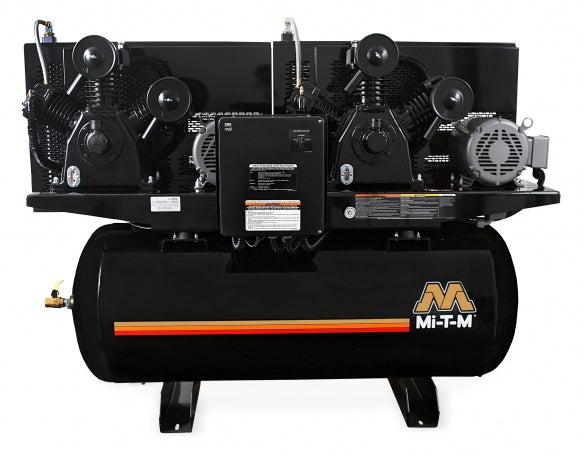

Mi-T-M Two Stage Electric Stationary Air Compressors - 68.4 CFM - 175 PSI - 10 HP - 120 gal

Mi-T-M Two Stage Electric Stationary Air Compressors - 68.4 CFM - 175 PSI - 10 HP - 120 gal

$13,691.92

SKU: ADD-23110-120H

Contact us for more information

Product Description

 ADD Series - 10.0 HP Duplex Horizontal

The horizontal 120-gallon air compressors can be installed out of the way in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production.

Compressor Pump:  Two stage cast iron  · Splash Lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor:  Industrial low RPM motor · Magnetic starter for thermal overload protection

Frame:  Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard

Components:  3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump) · ASME safety valves · Tank pressure gauge · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Hour meter

Other Models Available:
ADD-20310-120H 200V, 61.6A, 3 Phase
ADD-23310-120H 230V, 53.6A, 3 Phase
ADD-46310-120H 460V, 26.8A, 3 Phase

https://www.mitm.com/pdf/product-sheets/ADD-23110-120H.pdf
