Product Description

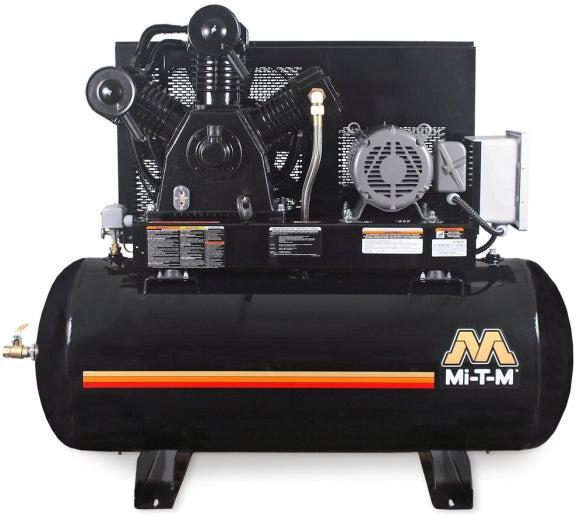

AES M Series - 15.0 HP Simplex Horizontal

Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series come compete to meet the most demanding industrial applications.

Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless steel braided discharge hose for easy maintenance - won’t fracture with vibration · Flexible pump drain hose

Motor: Low RPM industrial electric motor · Magnetic start for thermal overload protection

Frame: Durable, professional, high gloss powder coat finish · ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed heavy-duty belt guard · Vibration isolator pads protect the tank from stress

Components: Large flywheel for extra cooling and longer life · ASME safety valves · Pressure gauge · Tank shut-off valve · Tank drain valve automatically drains liquid from air receiver · Intake filter/silencer · Belt tightening system pulls engine straight to ensure constant belt alignment · Hour meter displays the number of hours compressor has been in operation · Dual control allows the electric compressor to be operated in start/stop mode or continuous run · Low oil shutdown shuts unit down when oil falls below adequate levels · Air-cooled after cooler removes up tp 65% fo moisture and drops temperature within 10-degrees of ambient

Other Models Available:
AES-23315-120HM 230V, 38.0A, 3 Phase
AES-46315-120HM 460V, 19.0A, 3 Phase

https://www.mitm.com/pdf/product-sheets/AES-20315-120HM.pdf
