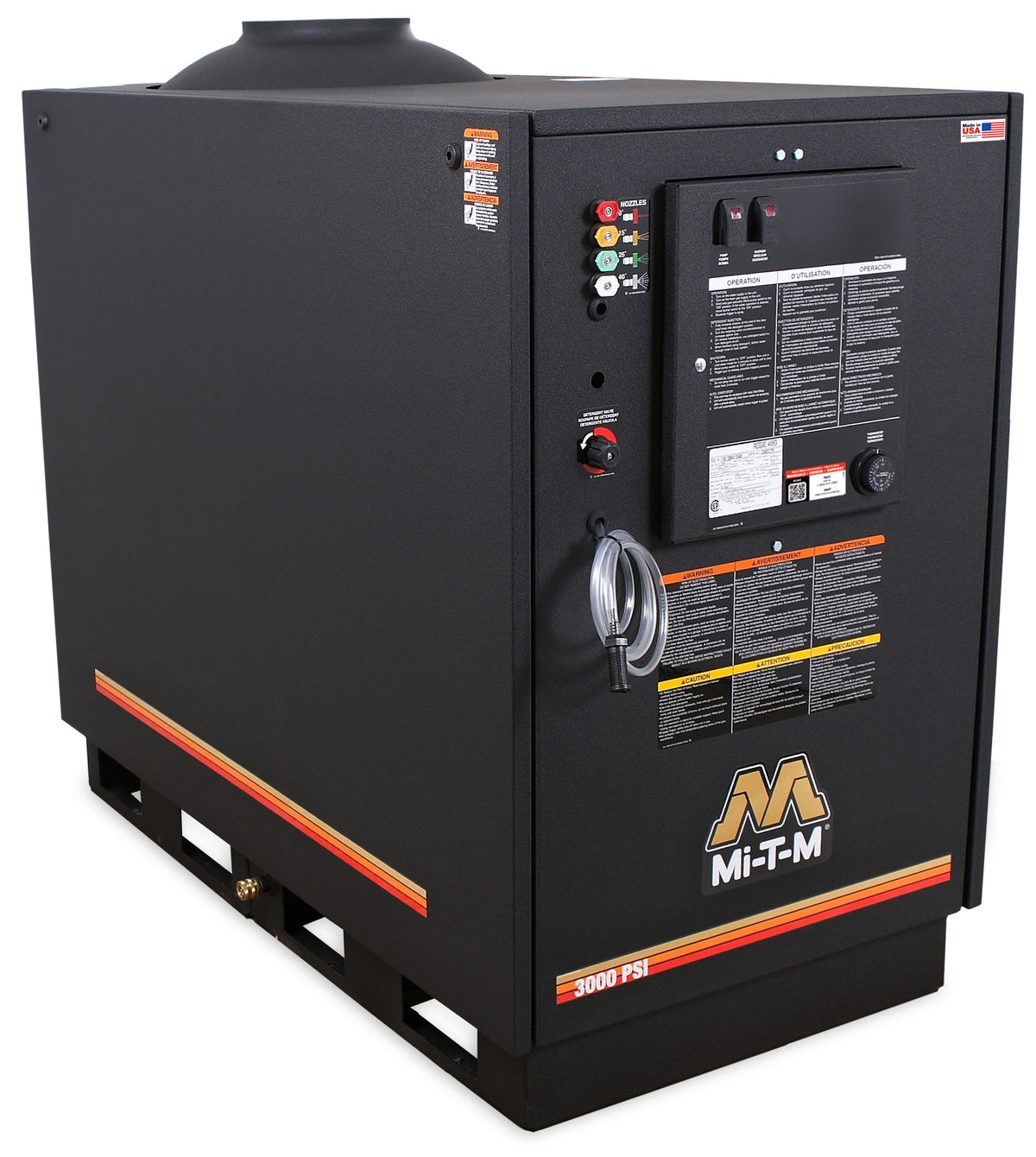

Mi-T-M HG-3004-3208 HG Series Natural Gas/LP Belt Drive

Mi-T-M HG-3004-3208 HG Series Natural Gas/LP Belt Drive

Regular price
$8,027.99
Sale price
$8,027.99
Quantity must be 1 or more


HG-3004-3208

With its steady fuel source, the stationary HG Series is the ultimate choice for wash bays, delivering performance every time.

Pump
Factory preset trapping unloader · Thermal relief valve · Adjustable high pressure detergent injector

Motor
Open drip-proof motor electric motor with thermal overload protection

Frame
Powder coated steel side panels and frame

Components
Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 24 volt control system · 1/2-inch schedule 80-coil heat exchanger · Electronic ignition with an intermittent pilot · Adjustable thermostat

Miscellaneous
Maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun





Specifications
PSI 3000
GPM 3.9
Horsepower / Motor 8.0 HP, 208V, 3Ø, 23.0A
Pump General
Natural Gas BTU Per Hour 338,000
LP Gas BTU Per Hour 326,000
Draft Diverter 21 in.
Weights & Dimensions
Net Weight 758.00 lbs.
Shipping Weight 878.00 lbs.
Length 56.50 in.
Width 29.00 in.
Height 49.75 in.
