| Spindle Specifications | |
| Spindle Taper | R8 |

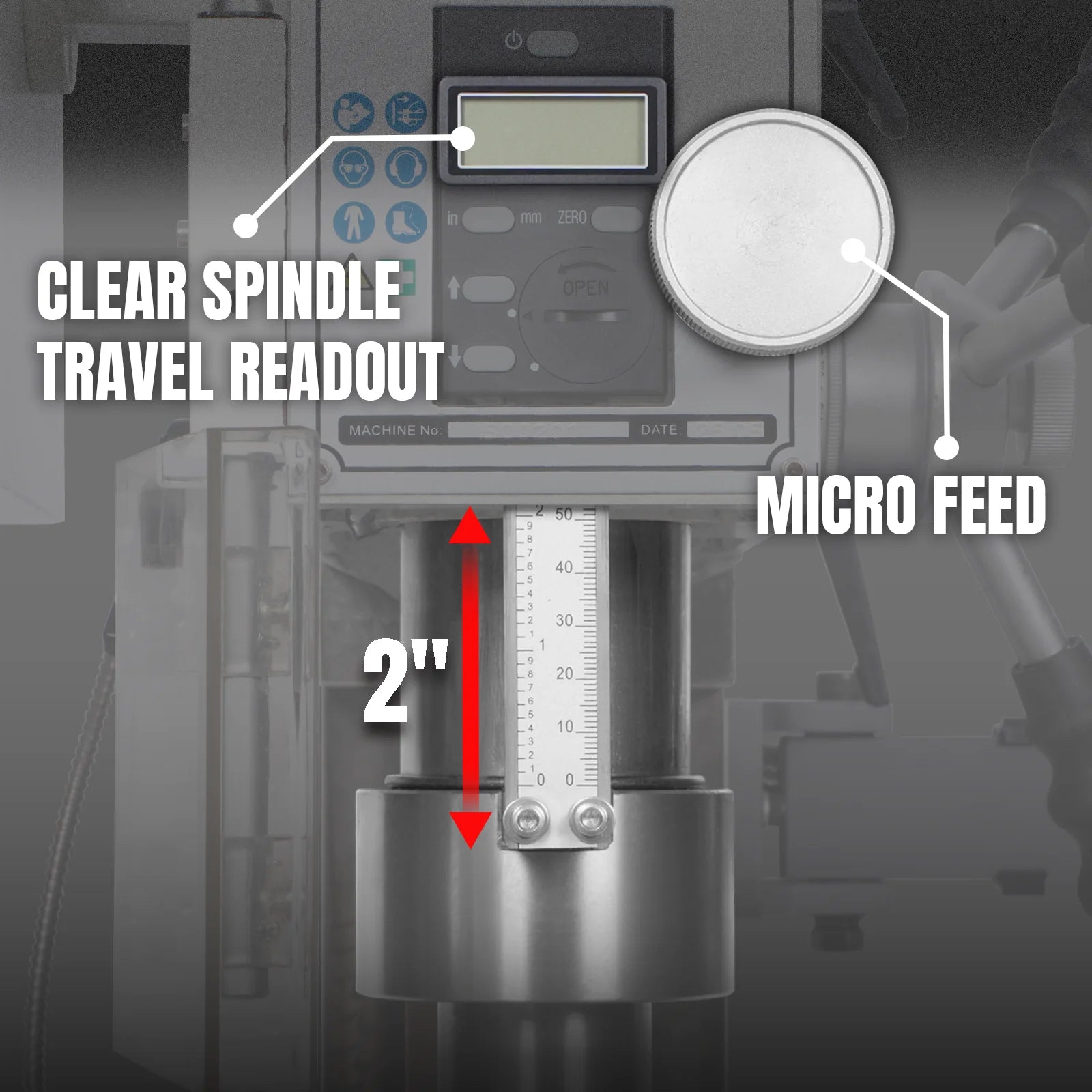

| Spindle Travel | 2"(50mm) |
| Quill Diameter | Ø2-3/4''(70mm) |
| Spindle Speed Range | 0-2500RPM |
| Number of Speed Steps | Variable |
| Drawbar Thread Size | 7/16"-20'' |
| Head Tilt Angle | ±90° |
| Spindle to Table Distance | 18-1/2"(470mm) |
| Spindle to Column Distance | 8-1/4"(210mm) |
| Cutting Capacity | |

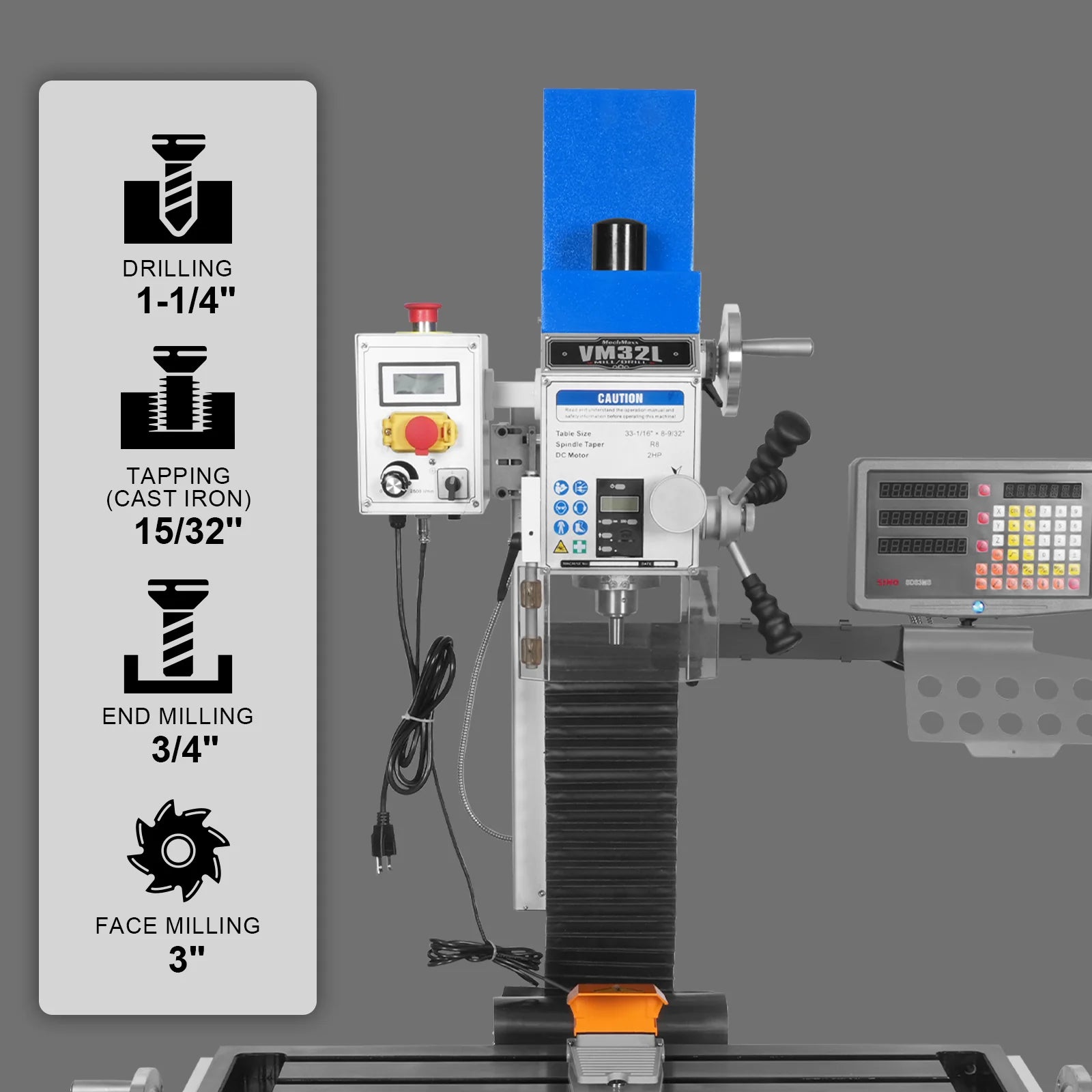

| Drilling Capacity | 1-1/4"(32mm) |
| End Milling Capacity | 3/4"(20mm) |
| Face Milling Capacity | 3''(76mm) |
| Table & Travel | |

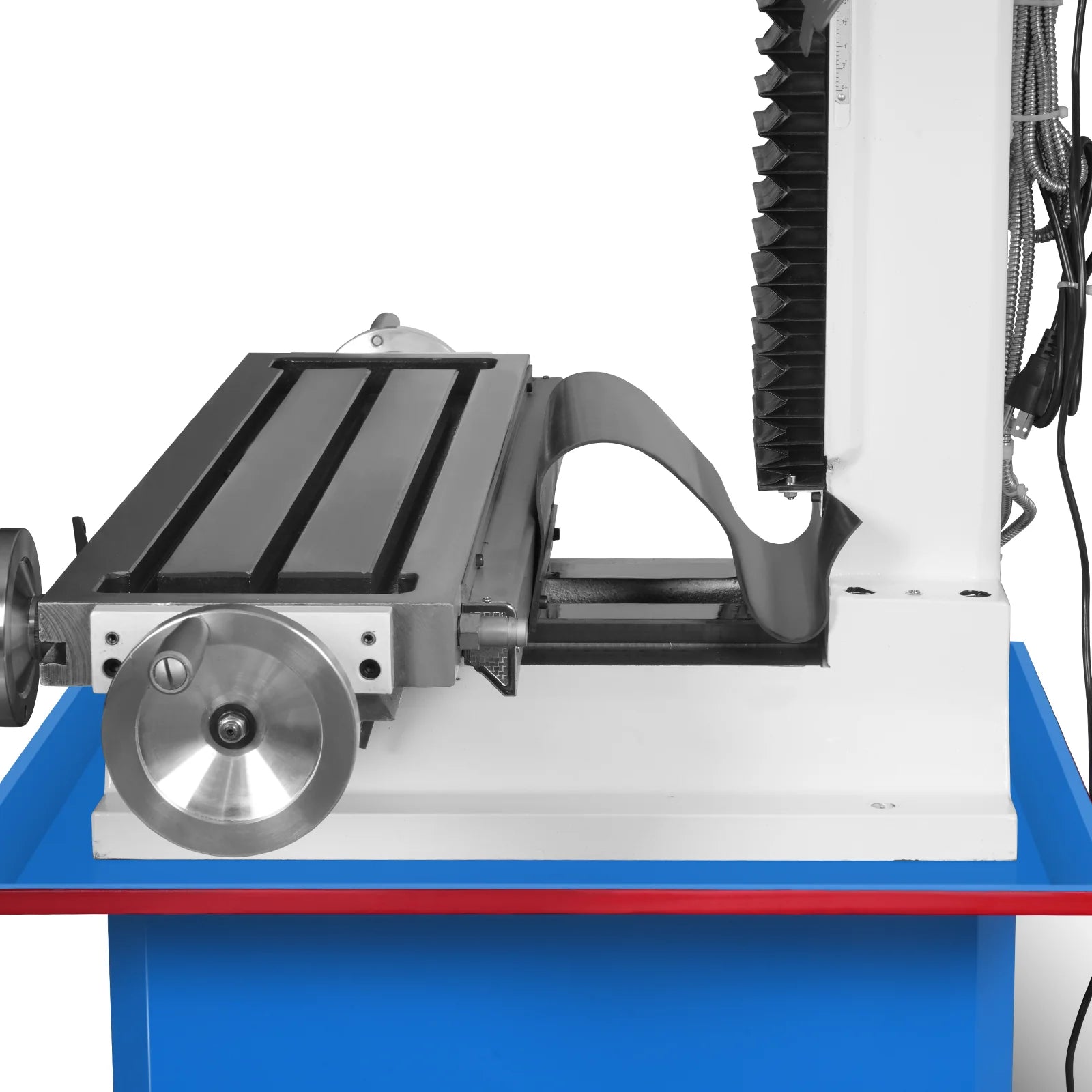

| Table Size | 8-1/4"x33''(210x840mm) |
| T-Slot Size / No. / Centers | 3 X 9/16''(14mm) |
| X-Axis Travel | 22-7/8''(580mm) |
| Y-Axis Travel | 8-21/32''(220mm) |
| Z-Axis Travel | 18-1/2''(470mm) |
| Construction & Drive | |

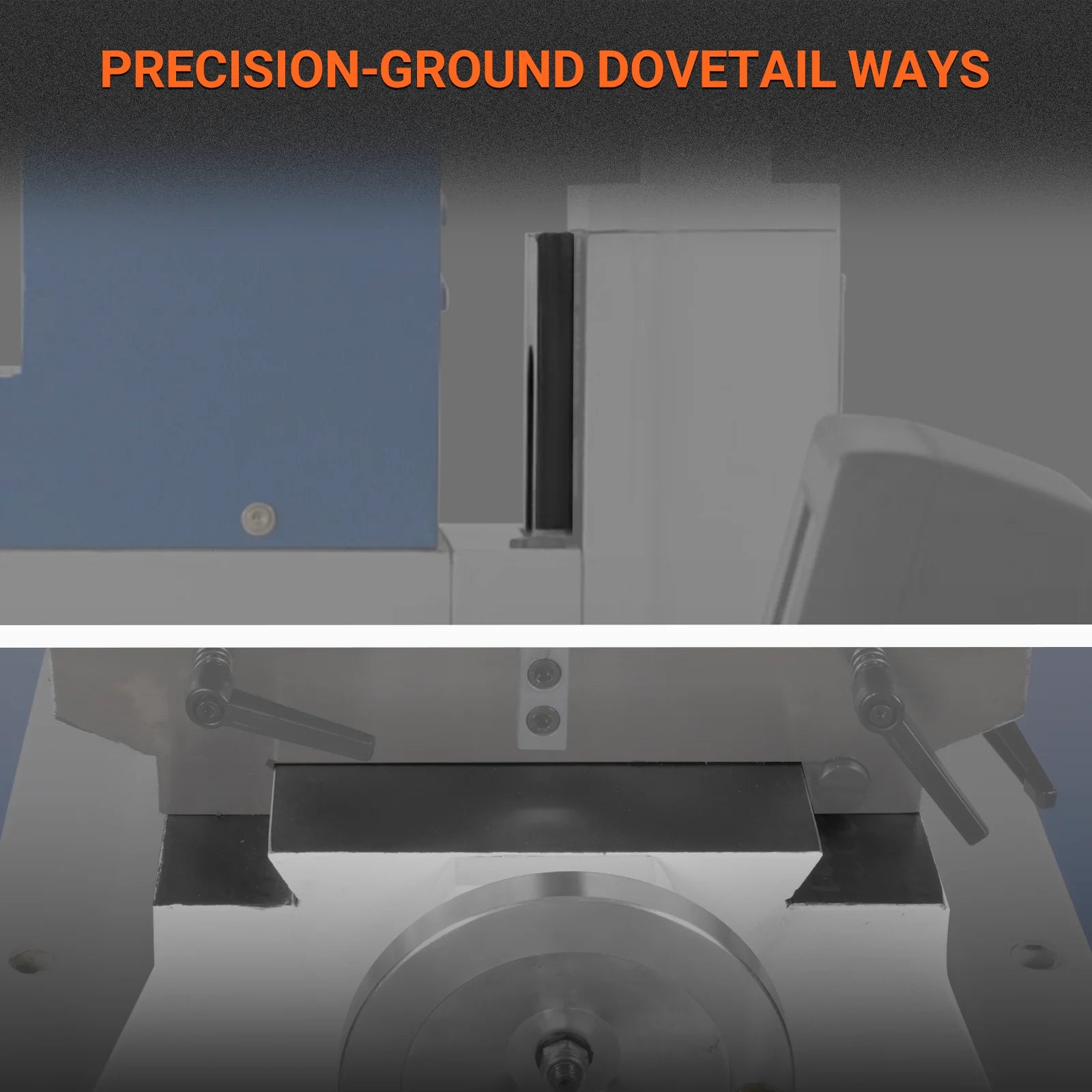

| Column Type | Square Column，Dovetail Slide |
| Drive Type | Belt |

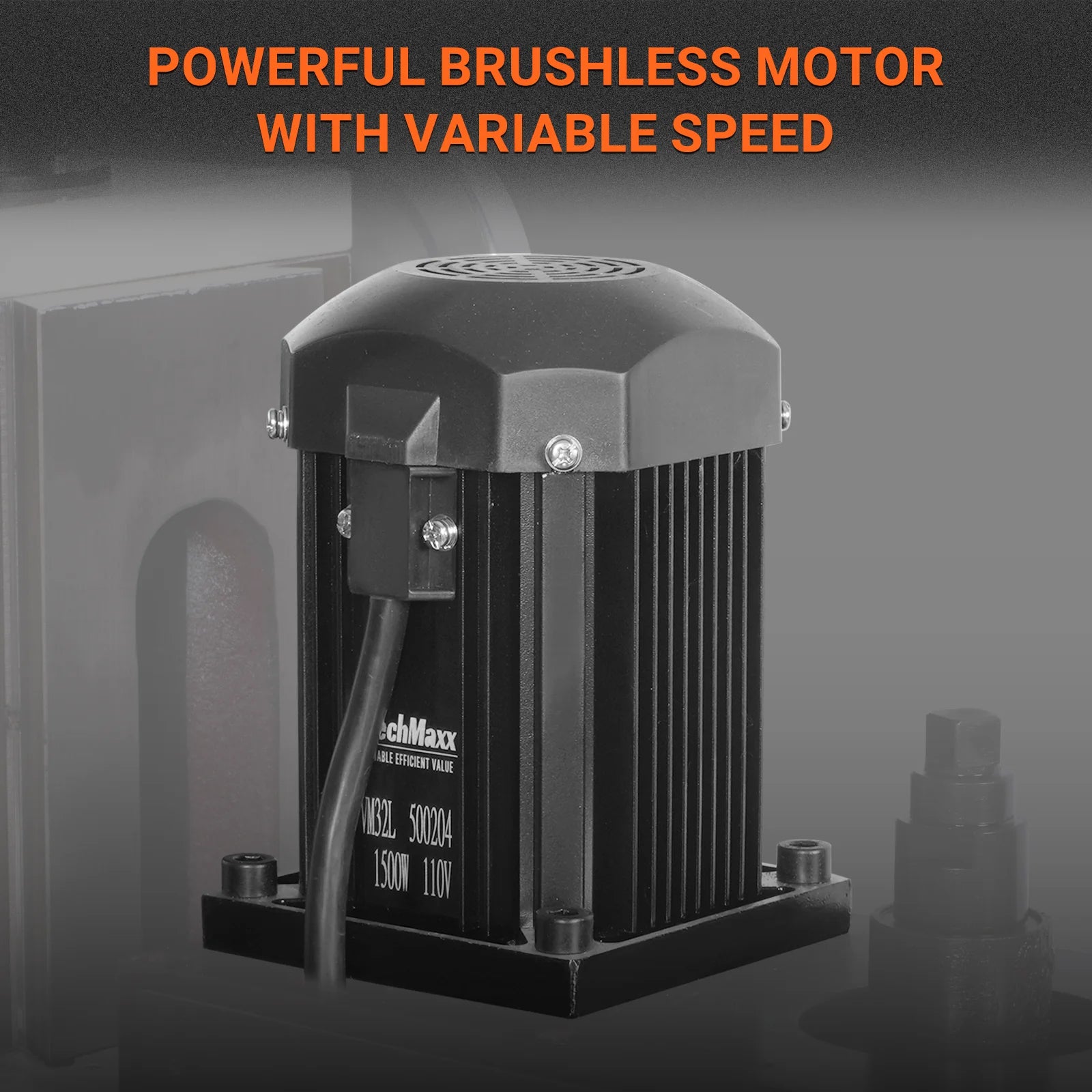

| Motor Power | 2HP 110V Single-Phase Brushless |
| Motor Type | DC Brushless |
| Electrical & Setup | |
| Net / Gross Weight | 462/528lbs(210/240KG) |
| Overall Dimensions | 45''x28''x47''(1130X710X1190mm) |
| Base Size | 21''x15''(535X380mm) |
| Shipping Dimensions | 44''x29''x46''(1100X730X1160mm) |
