| Lathe | |
| Motor Power (Lathe) | 1HP(750W), Single-Phase, 110V, 60HZ |
| Swing Over Bed | 16-8/15''(420mm) |
| Swing Over Cross Slide | 11-1/2"(120mm) |
| Distance Between Centers | 15-3/4''(400mm) |
| Bed Width | 5-5/16''(135mm) |
| Spindle Bore | 11/14''(20mm) |
| Spindle Mount | Flange mount |
| Spindle Type | Integrated Spindle |

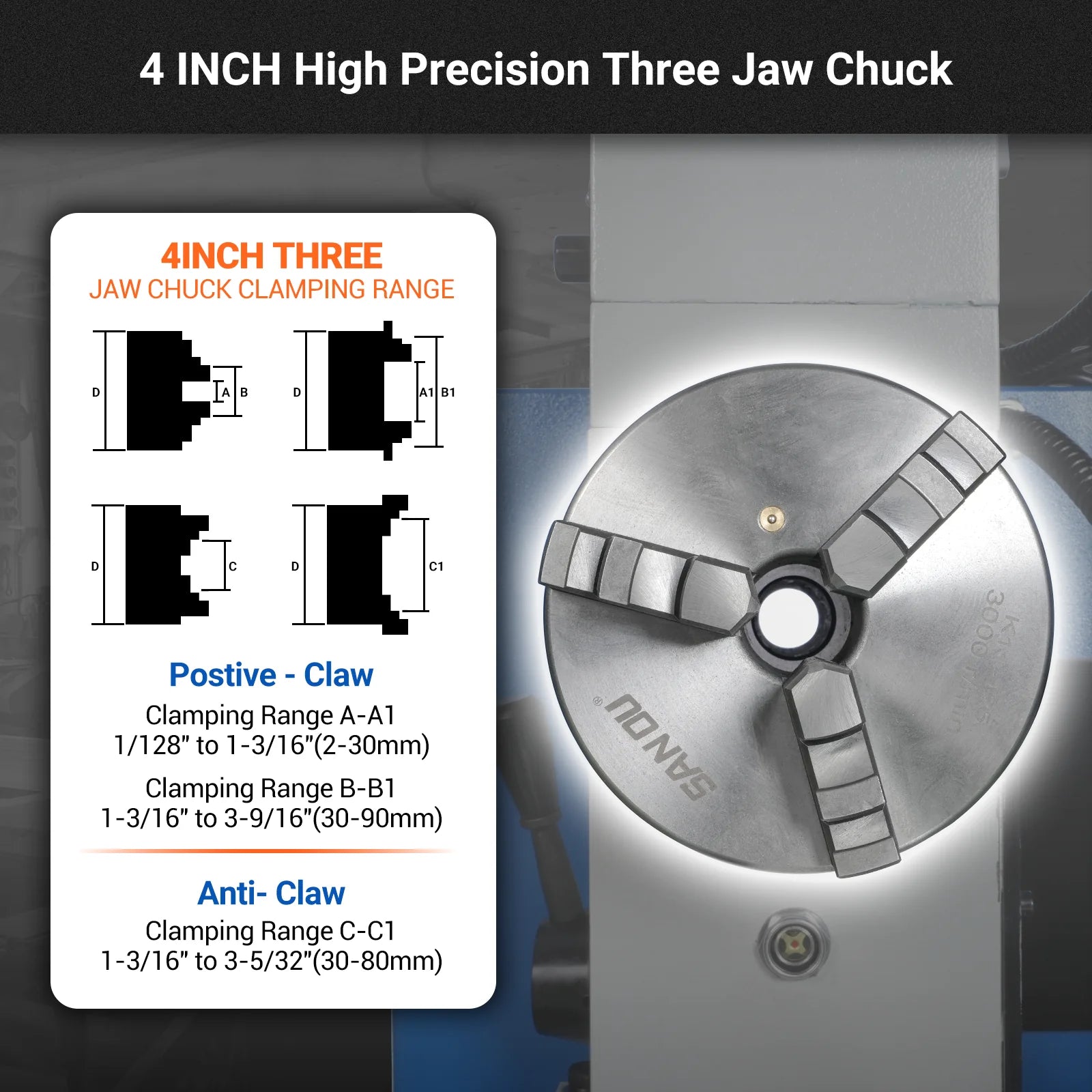

| DIA of the chuck | 4''(100mm) |
| Spindle Taper | MT3 |

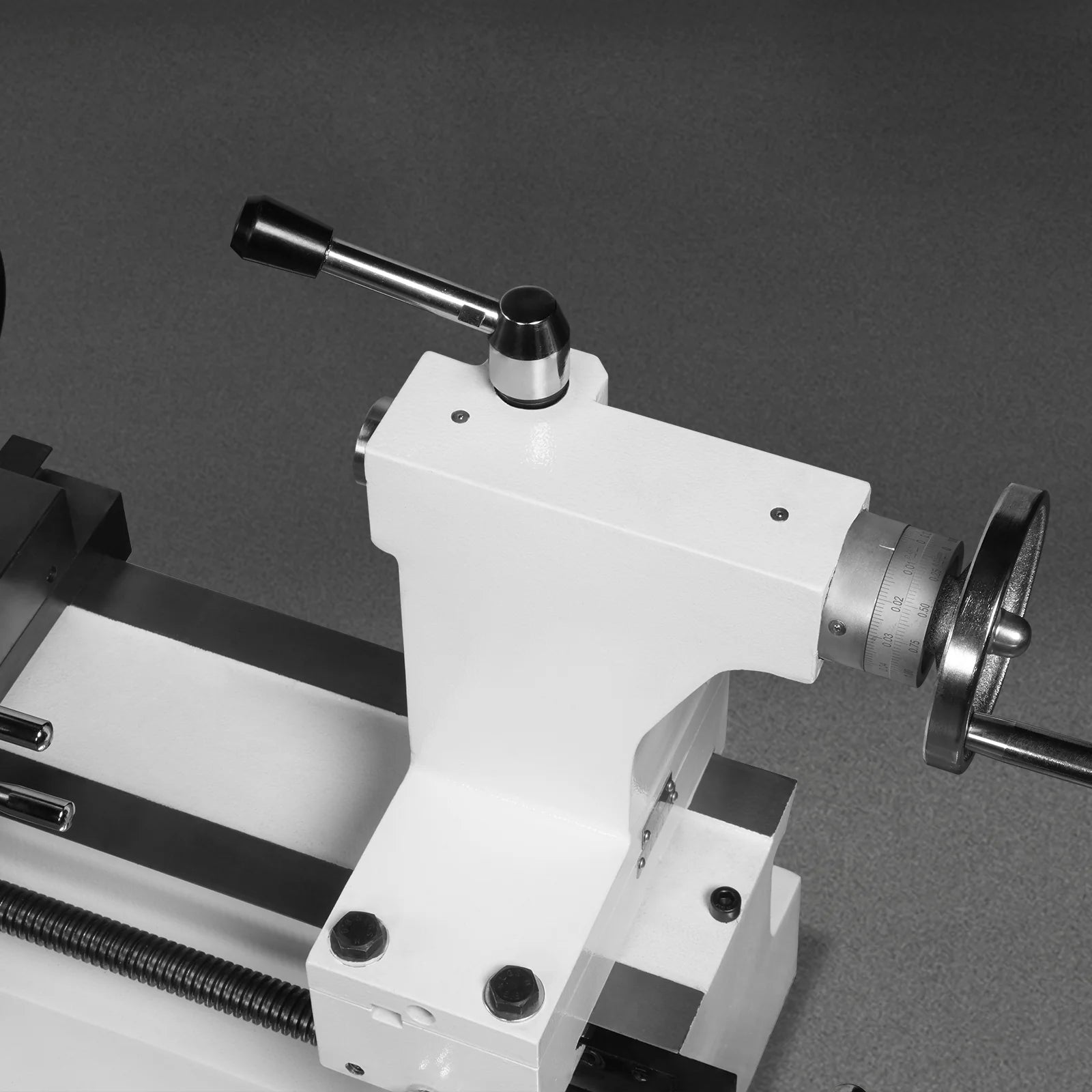

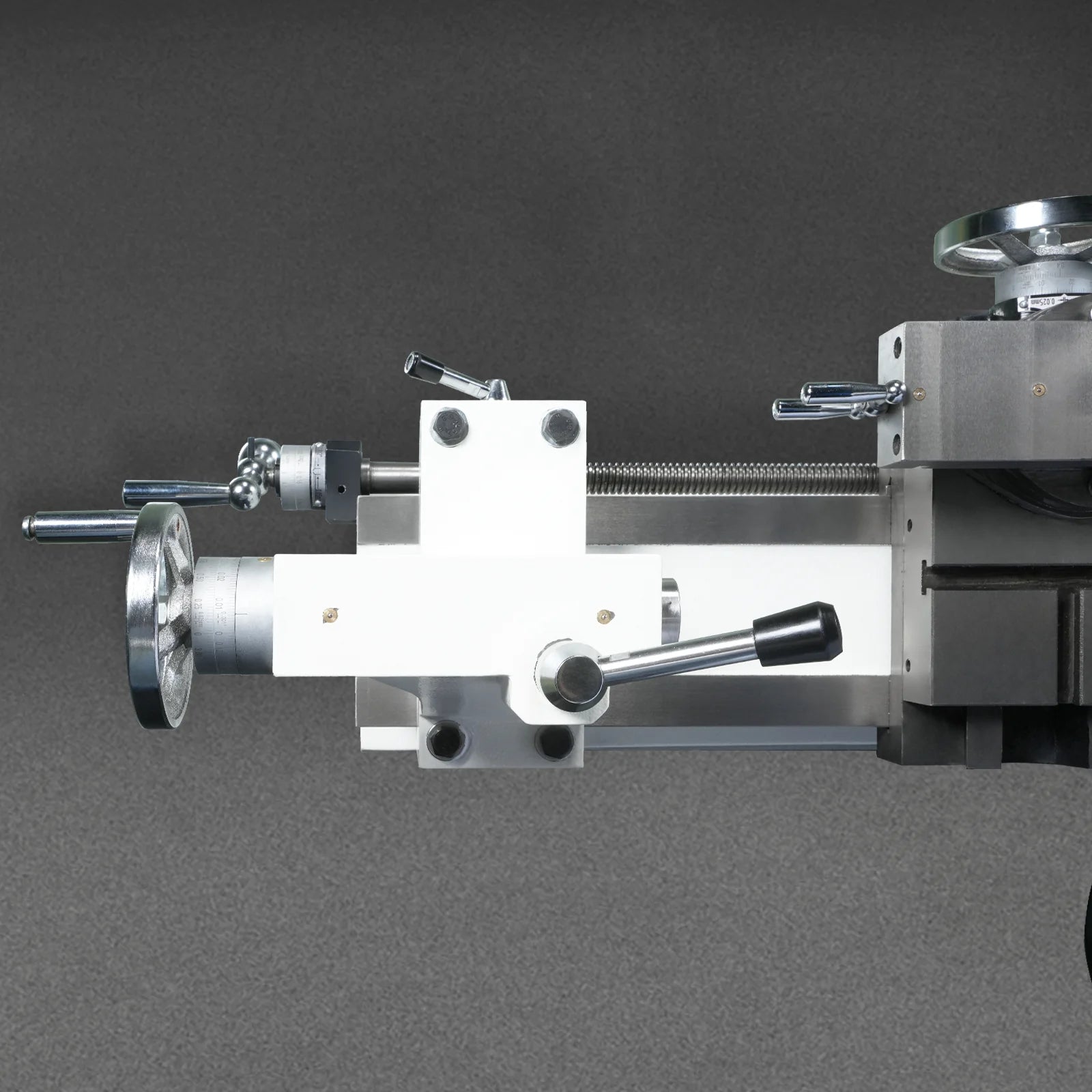

| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 2-3/4''(70mm) |
| Carriage Travel | 15''(380mm) |
| Carriage Leadscrew Diameter | 25/32"(20mm) |
| Cross Slide Travel | 4-8/11''(120mm) |
| Compound Slide Travel | 3''(76.2mm) |

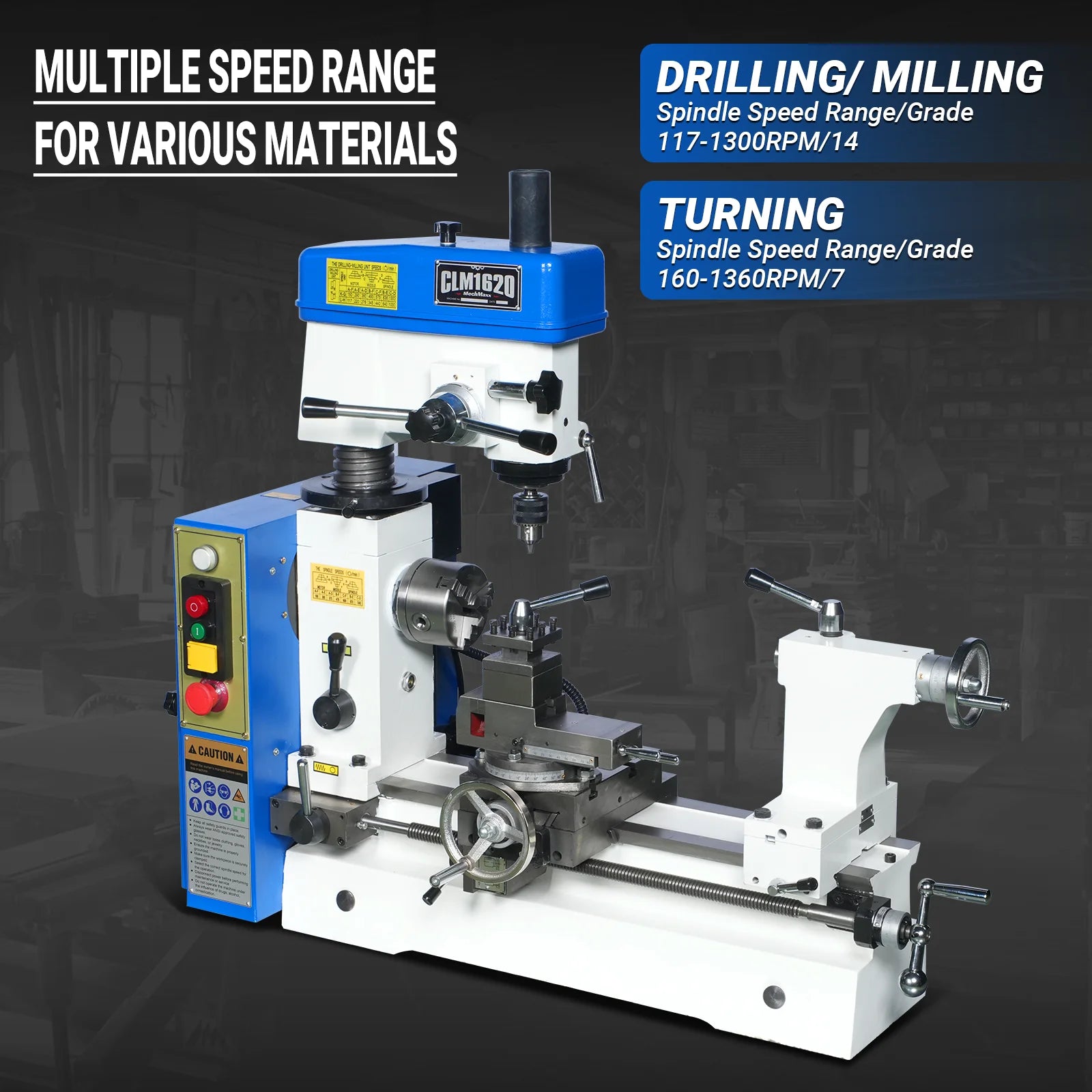

| Spindle Speed Range | 160-1360RPM |
| Number of Speed Ranges | 7 |
| Longitudinal Feed Rate | 0.002''-0.007'' in/r |
| Transverse Feed Rate | NO |
| Leadscrew Size & Pitch | 20mm 6TPI |

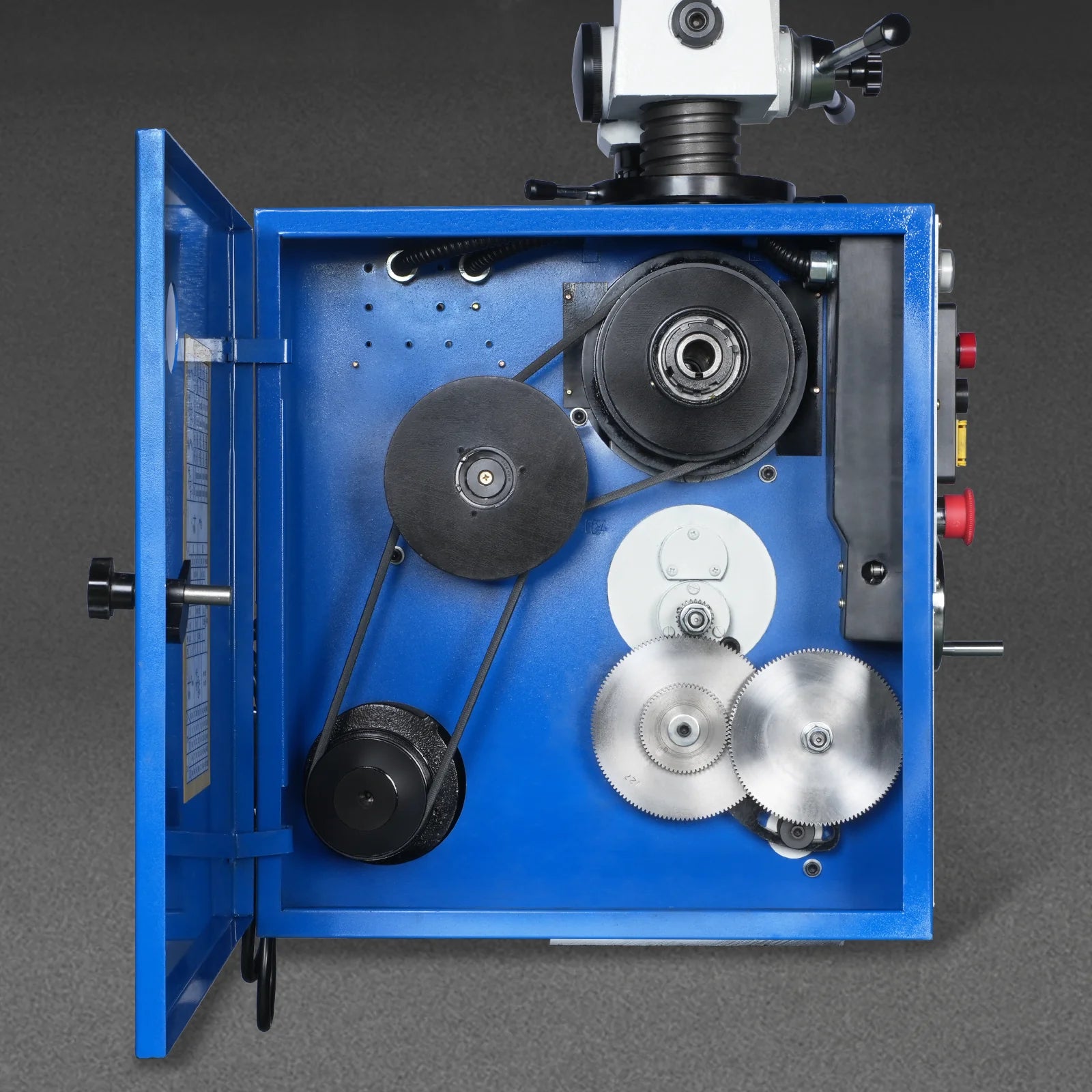

| Threading Capacity – Inch | 8-120TPI |
| Threading Capacity – Metric | 0.2-3mm |
| Thread Dial Indicator | NO |
| Maximum Tool Bit Size | 1/2''x1/2''(12x12mm) |

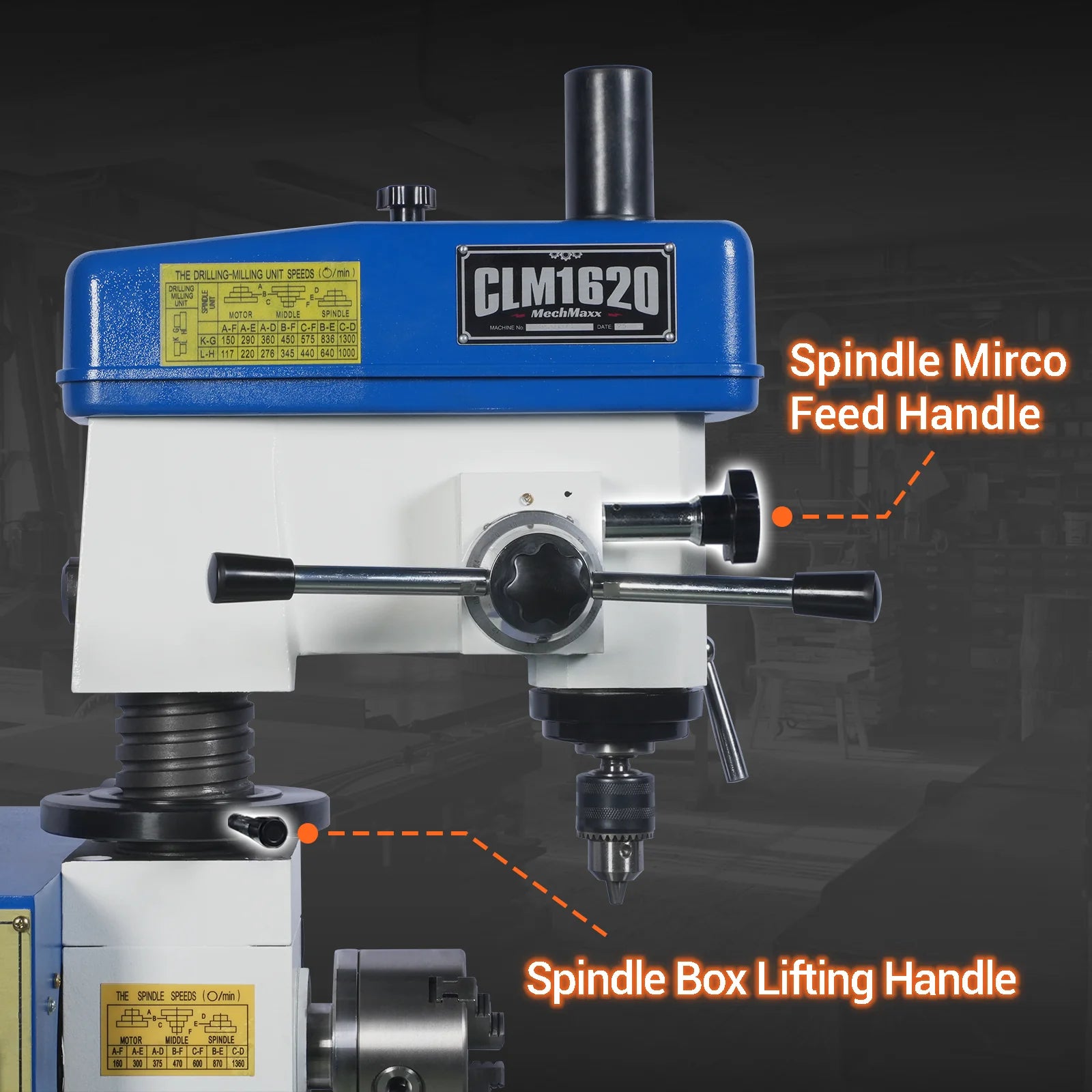

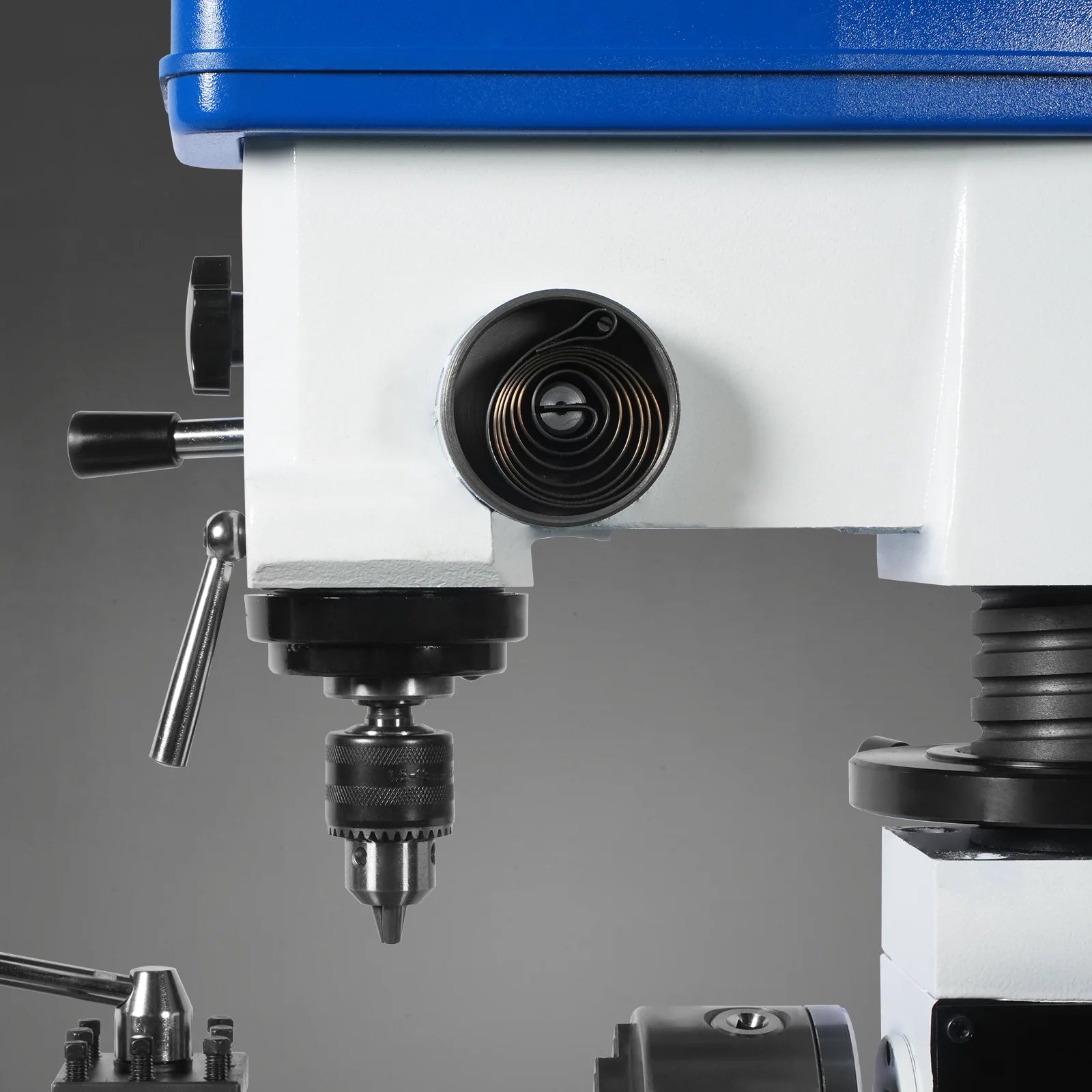

| Drill/Mill | |
| Motor Power (Mill Head) | Powered by the lathe's motor |
| Mill Taper | MT3 |

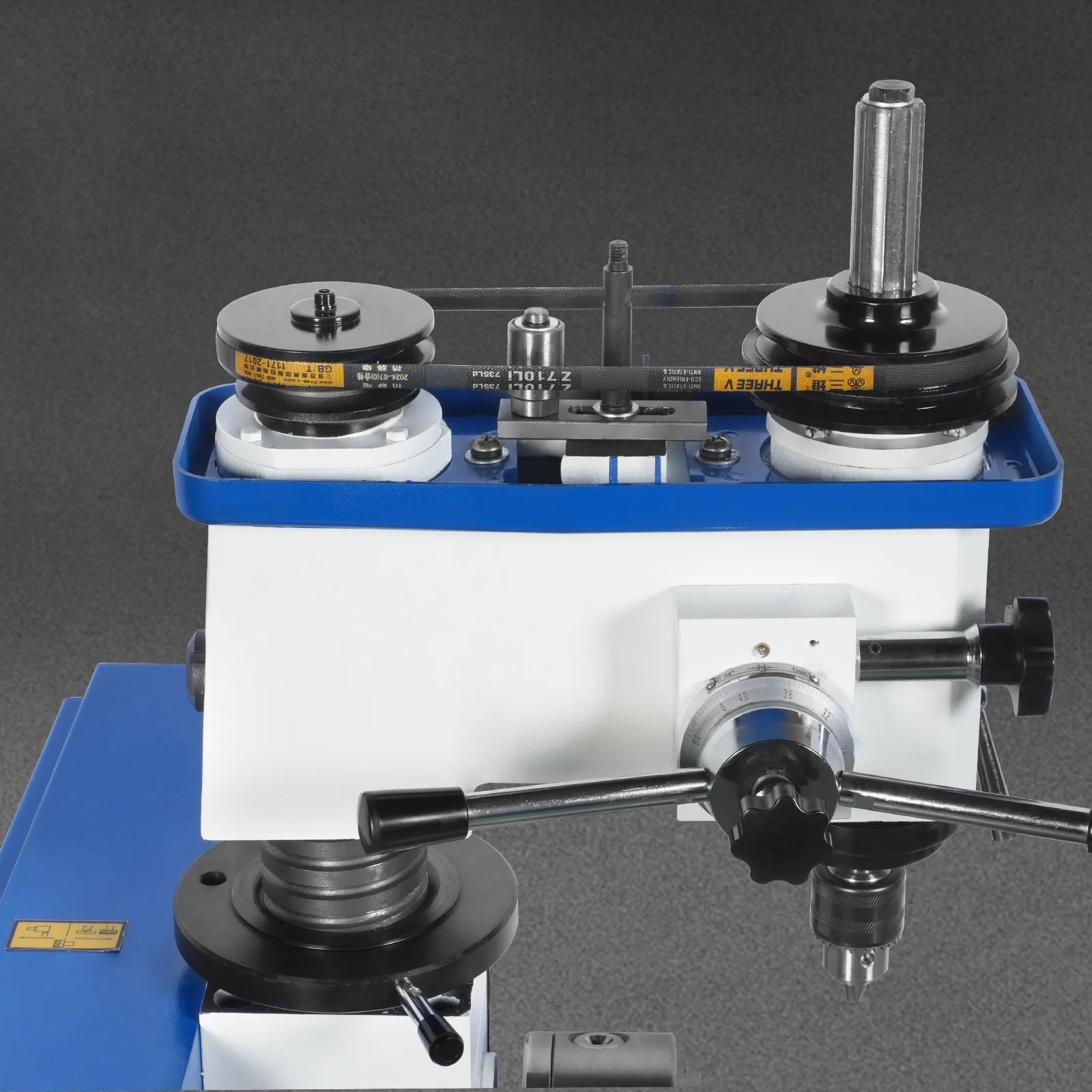

| Spindle Speed Range | 117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 |
| Number of Speed Steps | 14 |
| Spindle Travel | 3-11/32"(85mm) |
| Drawbar Thread Size | 3/8''(9.52mm) |
| Drawbar Length | 10-3/4''(273mm) |
| Drawbar Thread Pitch | 16TPI |

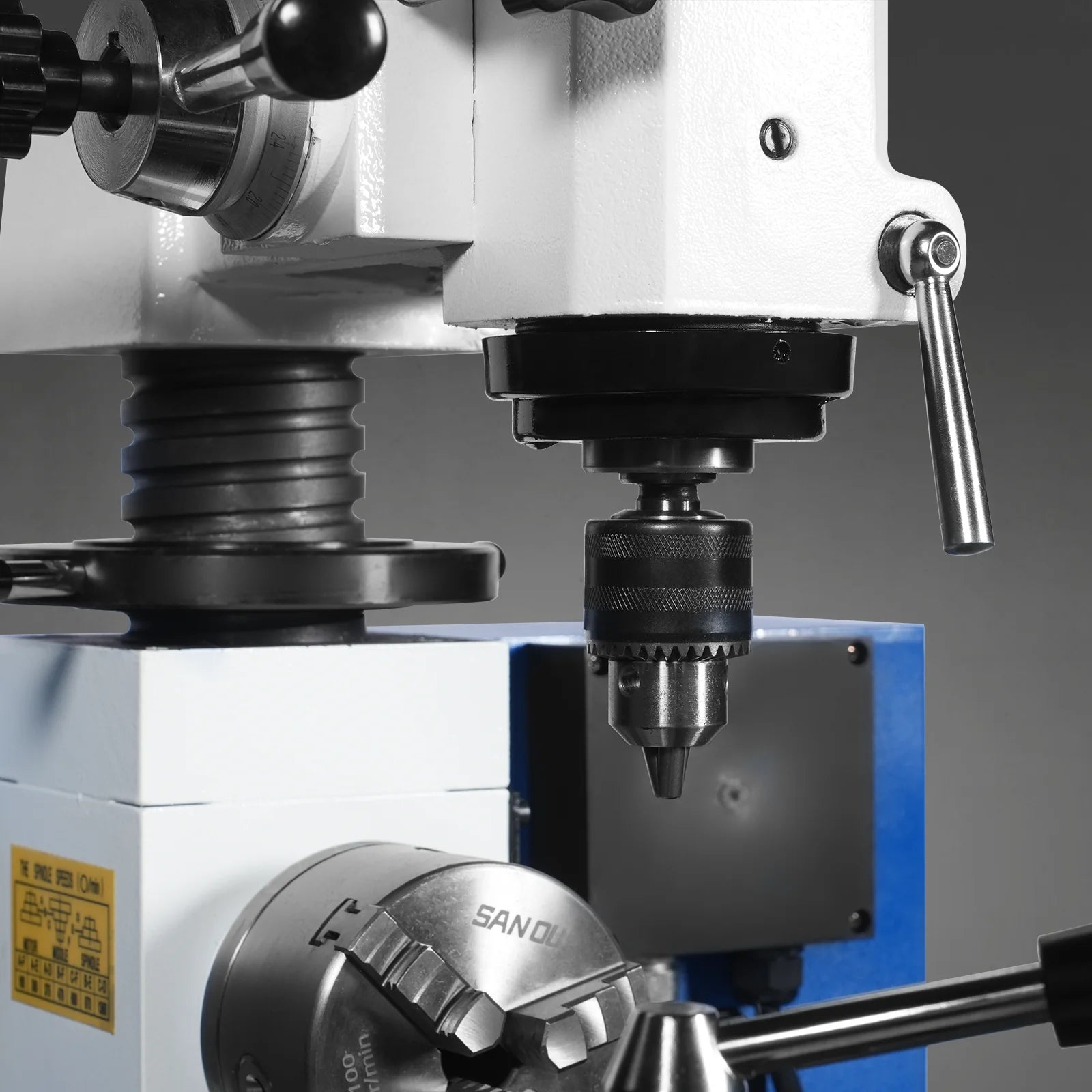

| Drill Capacity | 19/32''(15mm) |
| End Milling Capacity | 25/32"(20mm) |
| Face Milling Capacity | 2-1/2"(63mm) |
| Vertical Travel (Z-Axis) | 3-5/32''(80mm) |
| Distance: Spindle to Table | 15-3/4''(400mm) |
| Distance: Spindle to Center Line | 9-3/4''(248mm) |
| Headstock Height | 3''(76.2mm) |
| Head Tilt Angle | 0° |
| Swivel angle of the headstock | 360° |

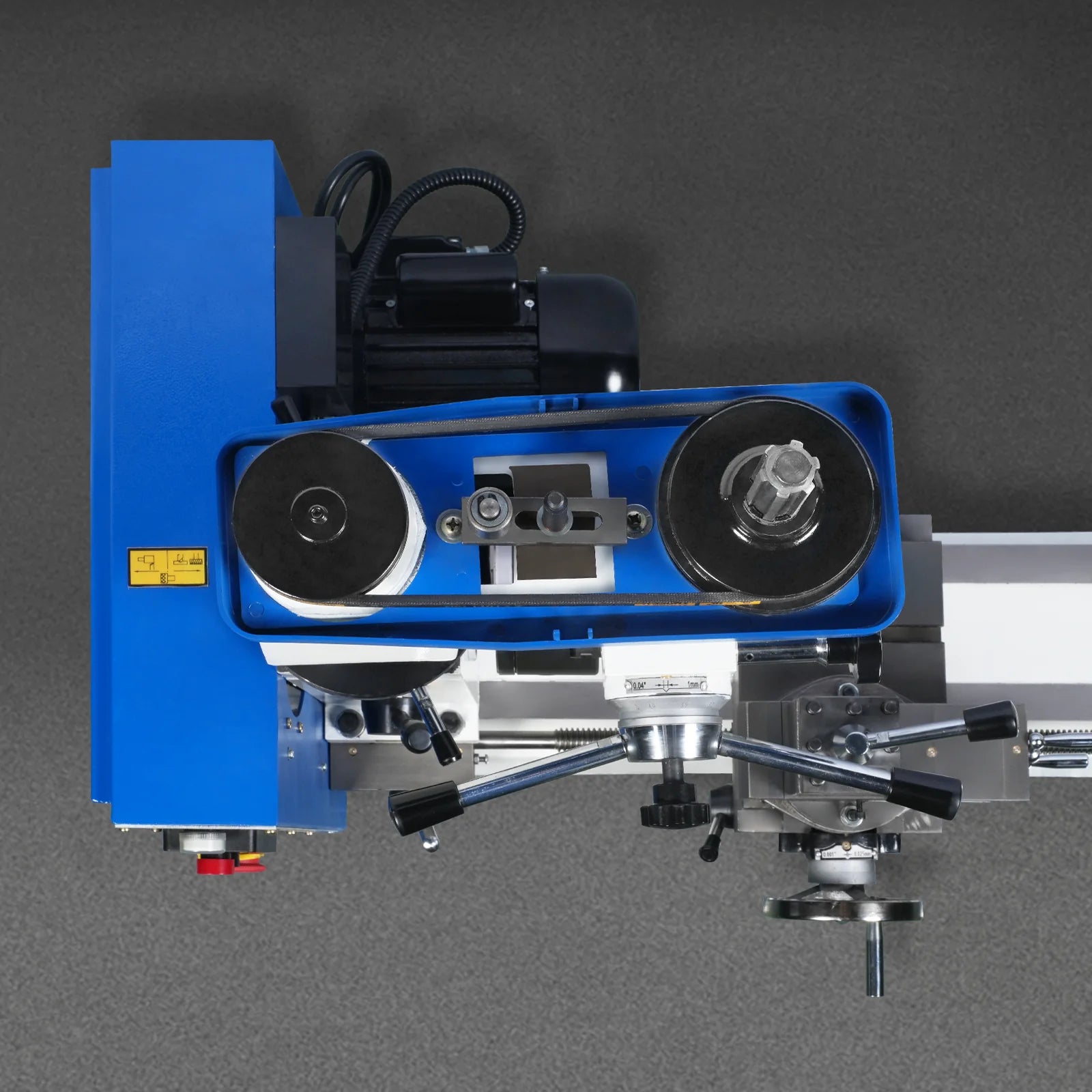

| Drive Type | Belt-driven AC Motor |
| Overall Dimensions | 41''x23''x43''(1050x580x1090mm) |
| N.W/G.W | 408/463lbs(180/210kg) |
