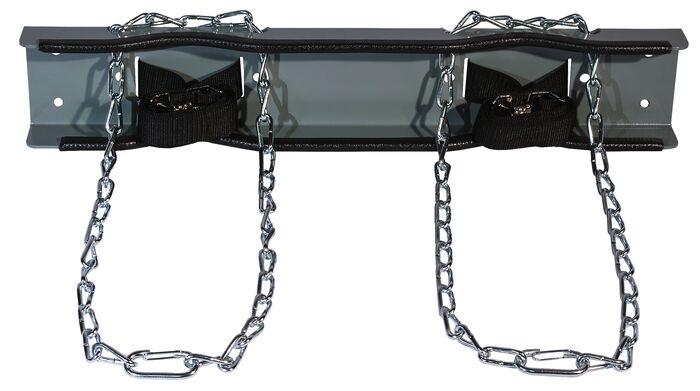

Cylinder support brackets provide a quick and easy solution for storing gas cylinders when space is at premium. Constructed from heavy gauge, powder-coated steel to ensure long service life and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against bracket. Welded and plated, heavy-duty size 2/0 steel chains with twist link allows links to lay flat against the cylinders, enabling a tighter fit and preventing damage to required labeling.
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Additional Specs
| Cylinder Capacity: | 2 |
| Minimum Cylinder Diam (in): | 4 |
| Cylinder Capacity with Max Cylinder Dia: | (2) 12 inch |
| Mount Type: | Wall |
| Mount Holes: | 4 |
| Mount Hole Size (inch): | 0.406 |
| Strap Style: | Poly Cinch Strap with Steel Buckle and Chain |
| Straps Per Cylinder: | 1 |
| Material Specifications: | Steel |
| Complies with NFPA 1 Fire-Code: | Yes |
| NFPA 55: | Yes |
| OSHA Compliance: | Yes |
| CGA: | Yes |
| Net Weight, lbs: | 9 |
| Net Weight, kg: | 4 |
| Net Dimensions (W x D x H): | 23.75 x 2.25 x 4.25 inches |
| : | 603 x 57 x 108 mm |
