Jet Tools - JTM-1254RVS With Newall DP700 DRO X,Y&Z  Powerfeeds

Jet Tools - JTM-1254RVS With Newall DP700 DRO X,Y&Z Powerfeeds

Regular price
$37,485.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 698130 Description

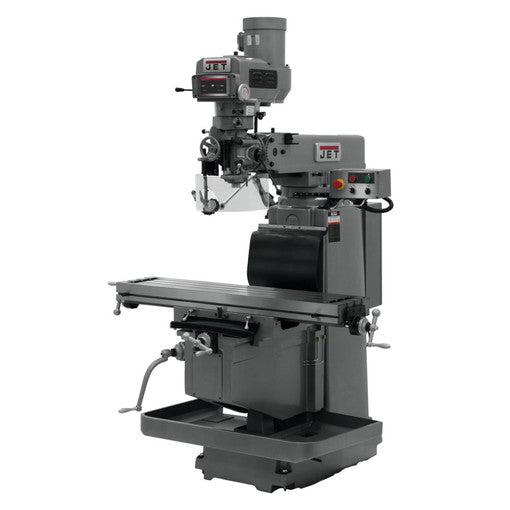

    The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12" x 54" Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty.

    Jet 698130 Features

    • Certified MeCertified Meehanite® Castingsehanite® Castings
    • Precision bored and honed milling head
    • High precision Class 7 spindle bearings
    • Quick Spindle Feed Nut
    • Three-stage power downfeed with automatic stop
    • Heavy-duty spindle brake
    • Precision hardened and ground ways and table
    • Three Precision ground t-slots
    • Turcite B on X & Y Axis
    • Adjustable gibs throughout

    Jet 698130 Specifications

    Spindle Travel (In.) 5
    Table Cross Travel (In.) 15-1/3
    T-Slot Centers (In.) 2-1/2
    Distance Spindle to Column (Min.) (In.) 7 1/2
    Quill Down Feed Rates (IPR) .0015–.003–.008
    Work Table Weight Capacity (Lbs.) 925
    Quill Diameter (In.) 4-1/8
    Collet Capacity 1/8 - 1
    Overall Dimensions (L x W x H) (In.) 92-1/8 x 79-7/8 x 104-1/4
    Range of Spindle Speeds (RPM) 80 - 3,800
    Head Movement (Deg.) 90°R & L 45° F & B
    Number of Axis 2
    Motor (HP) 5HP, 230/460V, 3Ph
    Style (Type) Variable Speed R8
    Table Size (L x W) (In.) 12 x 54
    Distance Spindle to Column (Max.) (In.) 27-3/4
    Digital Readout Newall DP700
    Powerfeed X, Y & Z-Axis
    Travel of Knee (In.) 19-1/4
    Travel of Ram (In.) 25
    Max Distance Spindle to Table (In.) 23
    Table Longitudinal Travel (In.) 33-7/8
    Table Longitudinal Travel With Powerfeed (In.) 28-1/4
    Saddle Width (In.) 25-5/8
    Column Width (In.) 14-1/4
    number of axis 2
    Spindle Taper (In. x TPI) R-8

    ;
