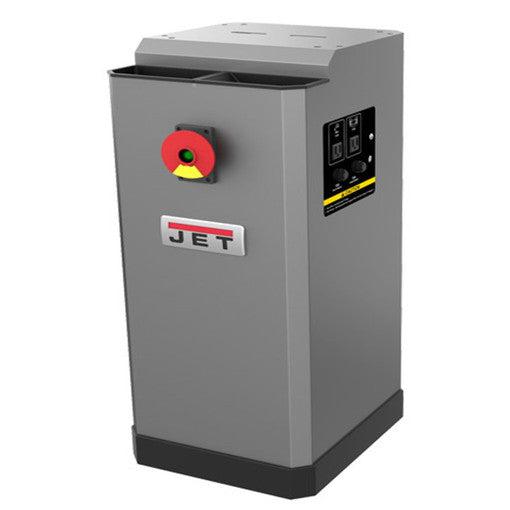

Jet Tools - JDCS-505, Metal Dust Collector Stand 115V

Jet Tools - JDCS-505, Metal Dust Collector Stand 115V

Regular price
$2,142.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 414800 Description

    JET’S new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.

    Jet 414800 Features

    • Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders
    • Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
    • Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
    • Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
    • Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
    • ANY BRAND bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)
    • Two 115V Outlets on side of unit for bench grinders & lamps
    • Heavy-Duty 16 gauge steel construction
    • Four Adjustable Leveling Pads
    • Large On/off switch with safety key

    Jet 414800 Specifications

    Motor (HP) 1/2 HP, 115V, 1Ph (20A)
    Hose Size (W x L) (In.) 2 Inlets @ 3"
    Overall Dimensions (L x W xH) (In.) 15-1/2 x 16 x 32-1/4
    Style (Type) Stand
    Maximum Hose Velocity (SFPM) 3,465
    Filter Efficiency 90% @ 50 Microns
    Filter Size (W x L x D) (In.) 6-3/4 x 2-5/8 x 13-1/2
    Maximum CFM 472
    Sound Rating (Db.) 75 db @ 10 Ft
    Static Pressure (Wc.) 748
    Max. Static Pressure (Wc.) 2,440

    ;
