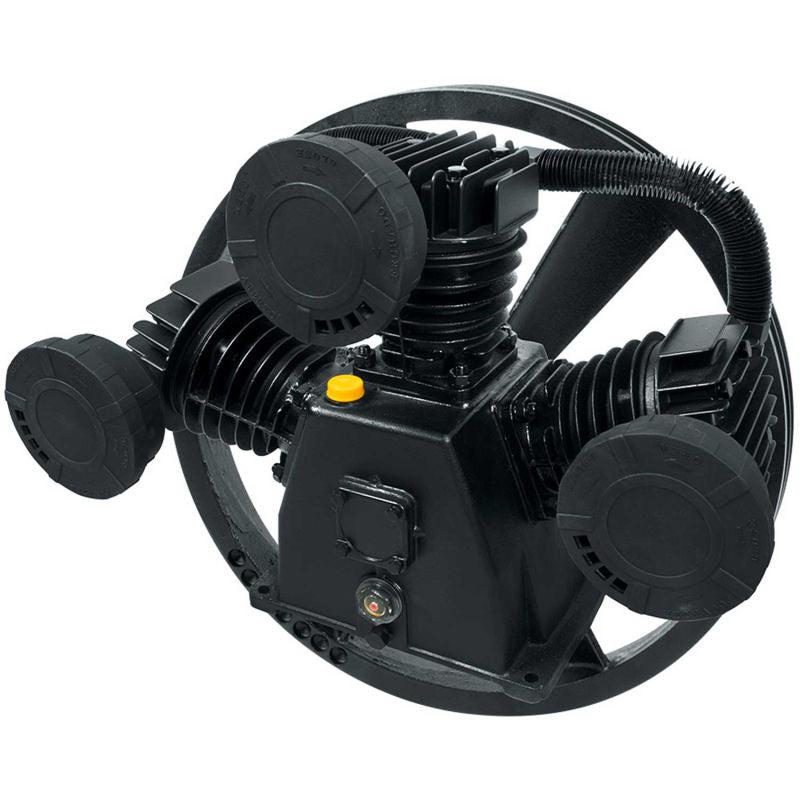

Cast Iron Single Stage Hi-Flo 3-Cylinder Replacement Pump
Provides maximum performance and efficiency
Mounting patters 9.88" W x 6.75 D (Depth)
4 bolting holes; 0.44 diameter per hole
Produces 6 running horsepower
High Performance 3 Cylinder Hi-Flo Pump
Develops 20.6 CFM at 40 PSI & 18.1 CFM @ 90 PSI
155 maximum PSI
3 large canister style air filters
800 Maximum RPM
Delivers high performance & longevity
"A" (width) single v-belt
Rugged Cast Iron Flywheel & Crankcase
Balanced for best performance & durability
16" Flywheel diameter
Automotive-Style Ball Bearings
Provide optimum performance & extended pump life
Offers reliable stainless steel reed valves
Easy-To-Read Oil Level Sight Gauge
Monitor pump oil level at a glance
44 oz. capacity oil reservoir (Pump oil not included)
Compatibility
Industrial Air and Industrial Air Contractor
Pump is not a direct replacement for any other brand
