Grizzly T32988 - 19-11/16"  Scale

Grizzly T32988 - 19-11/16" Scale

Regular price
$212.14
Sale price
$212.14
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 6-10 days, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

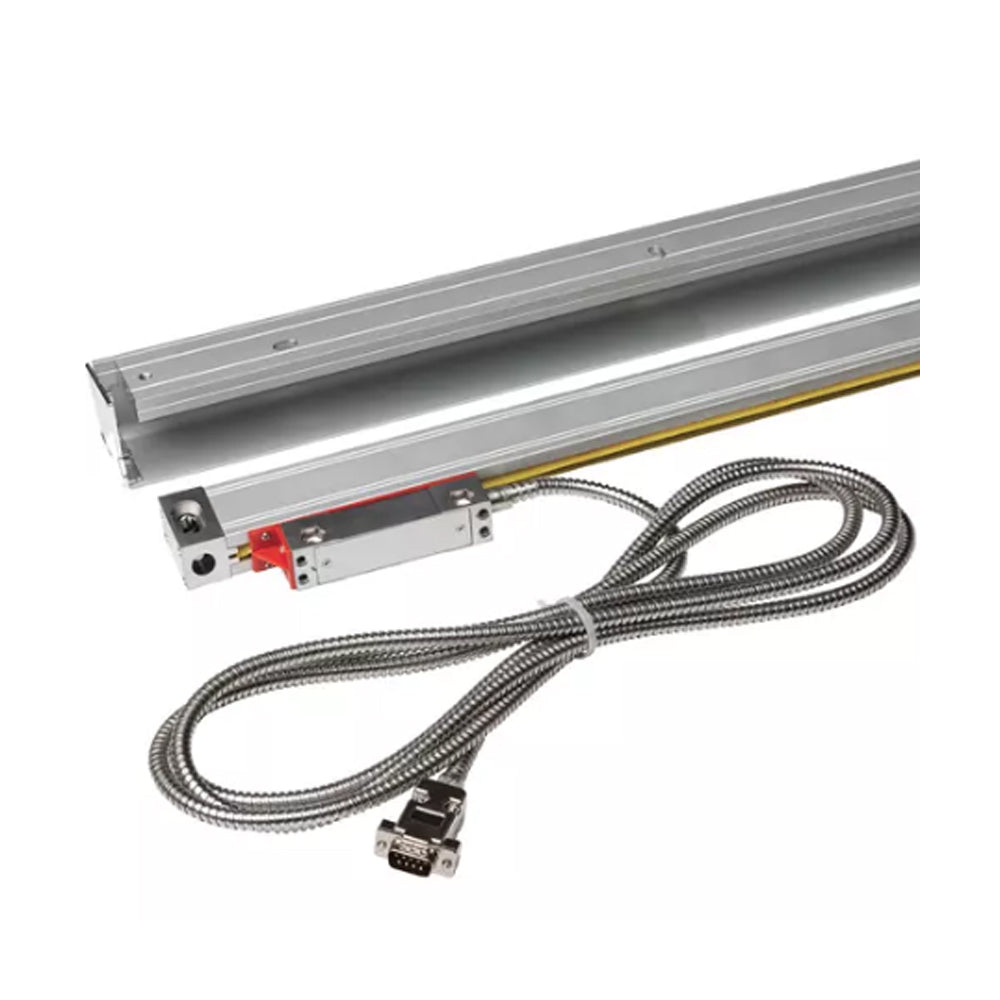

T32988 19-11/16" Linear Optical Scale

Make your own custom DRO starting with this scale.

The T32988 19-11/16" Linear Optical Scale boasts quality features that can’t be matched at this price.

The glass transducers are individually inspected and calibrated to ensure accuracy and compliance with the specifications.

The slide carrier uses five P5-grade bearings to achieve smooth and accurate movement.

The plastic seals offer superior oil resistance, durability, and high elastic recovery properties.

Like all Grizzly scales, the T32988 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the scale may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Supply voltage: DC 5V
  • Resolution: 5μm
  • Travel length: 19-11/16"
  • Accuracy: ±10μm
  • Optical period: 20μm
  • Optical measurement: Transmissive infrared
  • Repeatability: 2μm
  • Seal protection: IP53
  • Scanning head sliding system: Vertical five-bearing sliding system
