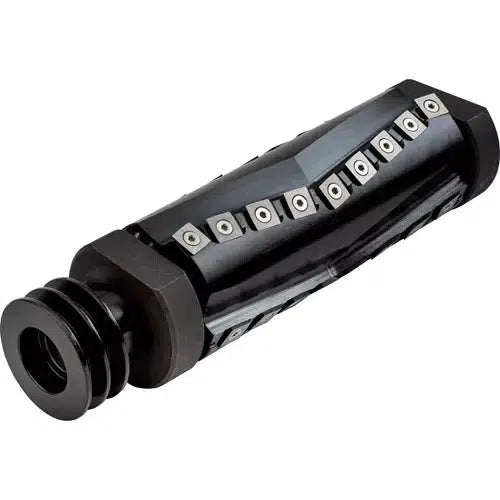

T32018 8" V-helical Cutterhead

Upgrade your Grizzly 8" Jointer with a 4-row V-helical cutterhead for a smoother finish.

The T32018 8" V-helical Cutterhead comes equipped with 32 indexable, carbide inserts that can each be rotated three times for a new factory-sharp edge.

The inserts sit at a slight angle, which produces a shearing action, as opposed to the straight-on cuts of spiral cutterheads. This results in a smoother finish and quieter operation.

Additionally, the "V" shape of the rows does a better job of directing dust and chips into your dust collection system than with spiral cutterheads, which tend to eject some debris out the sides.

These cutterheads include cast-iron pulleys, bearing blocks and mounting studs, as well as 5 extra inserts, a T-handle wrench, Torx® bits and spare insert screws.

These Grizzly cutterheads leave an incredible finish and are comparable to the Byrd® cutterheads in quality of cut as well as the quality of the cutterhead itself.

Replacement inserts for the T32018 8" V-helical Cutterhead are the H9893 and come in a 10-pack.

Like all Grizzly cutterheads, the T32018 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the cutterhead may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Insert material: Carbide
• Insert size: 15 x 15 x 2.5mm
• Insert quantity: 32

FITS:

• Grizzly G1018 Series (only for dual-belt models mfg. since 1992)
• Grizzly G0500
• Grizzly G0586
• Bridgewood BW8J
• Jet JJ8CS
• Shop Fox W1684
• Sunhill SM-204
• Geetech CT-204L
• Geetech CT-200
