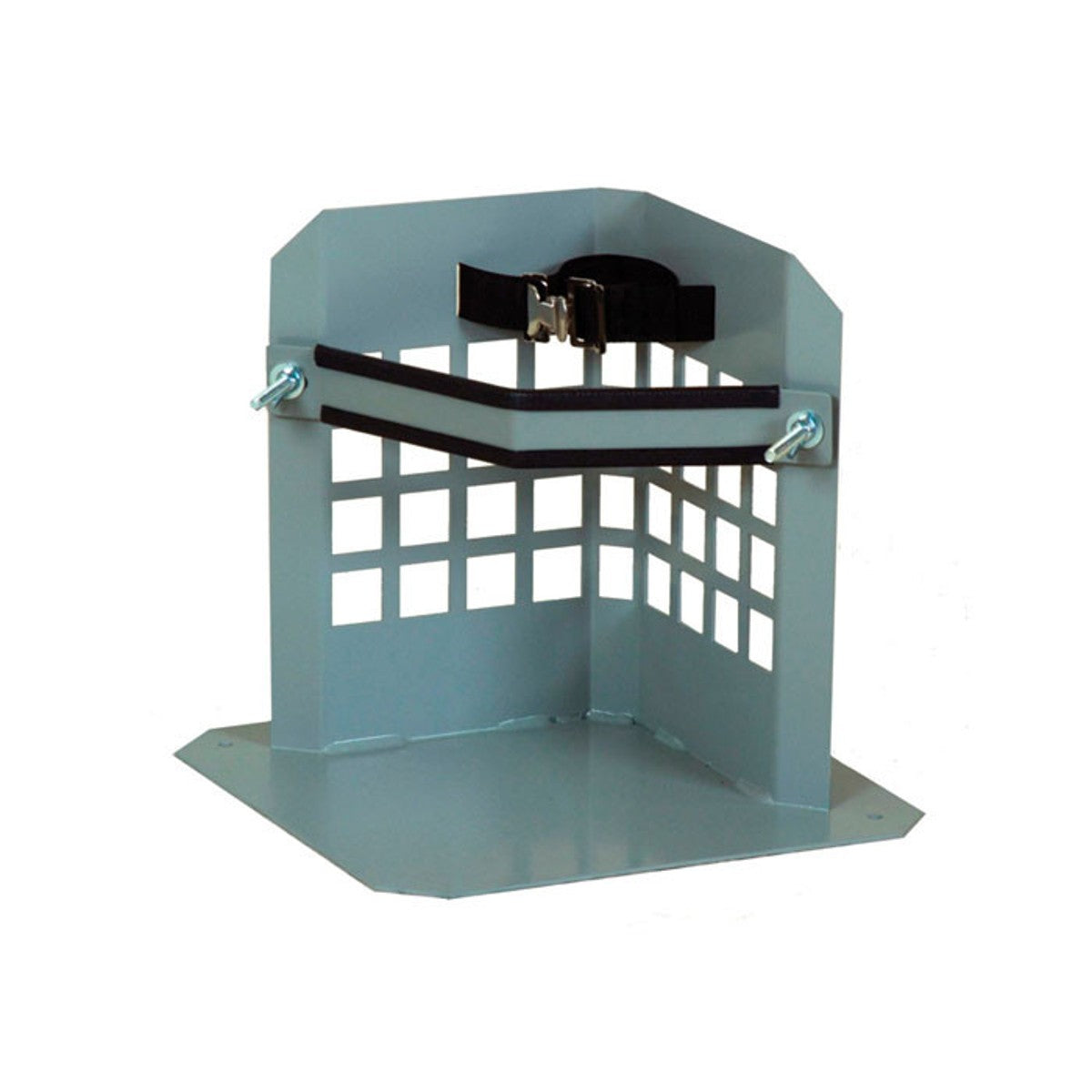

Designed for the safe storage of industrial and commercial use compressed gas cylinders, these storage stands help prevent dangerous tipping situations. Powder-coated to ensure long service life and chemical resistance. Features a 0.187-in (5-mm) thick steel clamping bar protected with an edge bumper guard that attaches to the stand using dual threaded rods and wing nuts. Pre-drilled holes in base for floor mounting with application specific fasteners (not included).

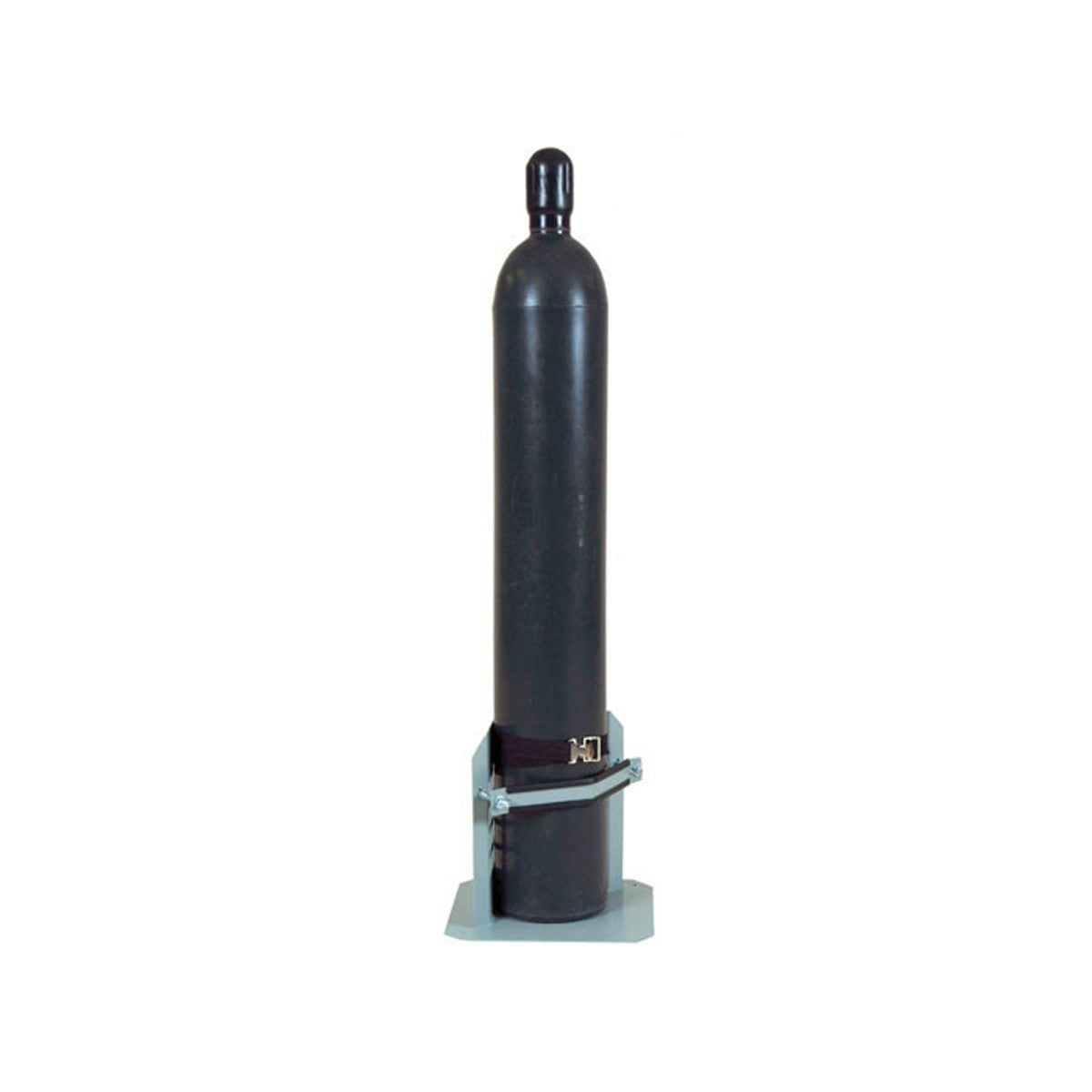

Heavy-duty polypropylene support strap, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), features steel cinch buckle and hold individual cylinders securely against stand.
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Additional Specs
| Cylinder Capacity: | 1 |
| Minimum Cylinder Diam (in): | 4 |
| Cylinder Capacity with Max Cylinder Dia: | (1) 10 inch |
| Mount Type: | Floor |
| Mount Holes: | 3 |
| Mount Hole Size (inch): | 0.406 |
| Strap Style: | Poly Cinch Strap with Steel Buckle and Clamping Bar |
| Straps Per Cylinder: | 1 |
| Material Specifications: | Steel |
| Complies with NFPA 1 Fire-Code: | Yes |
| NFPA 55: | Yes |
| OSHA Compliance: | Yes |
| CGA: | Yes |
| Net Weight, lbs: | 21 |
| Net Weight, kg: | 10 |
| Net Dimensions (W x D x H): | 16 x 16 x 15 inches |
| : | 406 x 406 x 381 mm |
