EMAX ES05V080l1 5 HP 80 gal. 2-Stage Industrial Inline Pressure Lubricated Pump SILENT Air Compressor, 175 PSI, 1-Phase
EMAX ES05V080l1 5 HP 80 gal. 2-Stage Industrial Inline Pressure Lubricated Pump SILENT Air Compressor, 175 PSI, 1-Phase
EMAX ES05V080l1 5 HP 80 gal. 2-Stage Industrial Inline Pressure Lubricated Pump SILENT Air Compressor, 175 PSI, 1-Phase
EMAX ES05V080l1 5 HP 80 gal. 2-Stage Industrial Inline Pressure Lubricated Pump SILENT Air Compressor, 175 PSI, 1-Phase

EMAX ES05V080l1 5 HP 80 gal. 2-Stage Industrial Inline Pressure Lubricated Pump SILENT Air Compressor, 175 PSI, 1-Phase

Regular price
$3,933.70
Sale price
$3,933.70
Quantity must be 1 or more

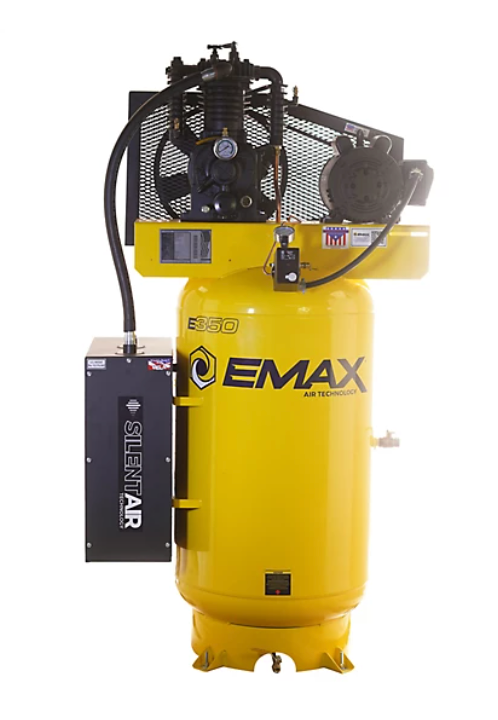

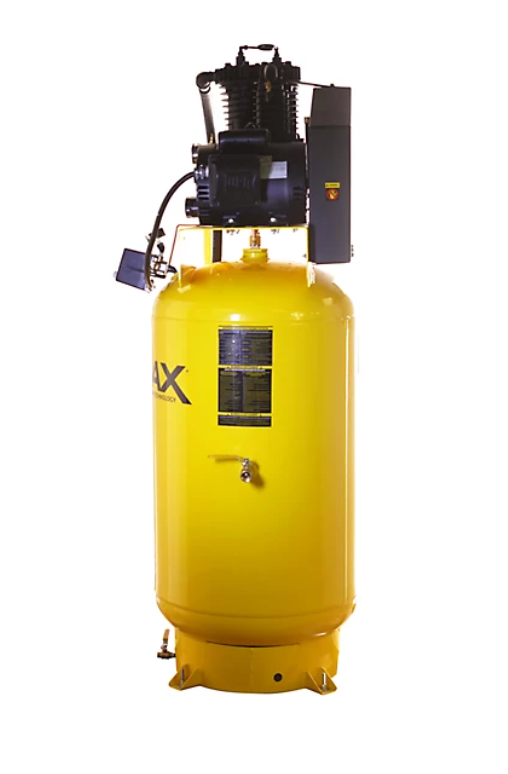

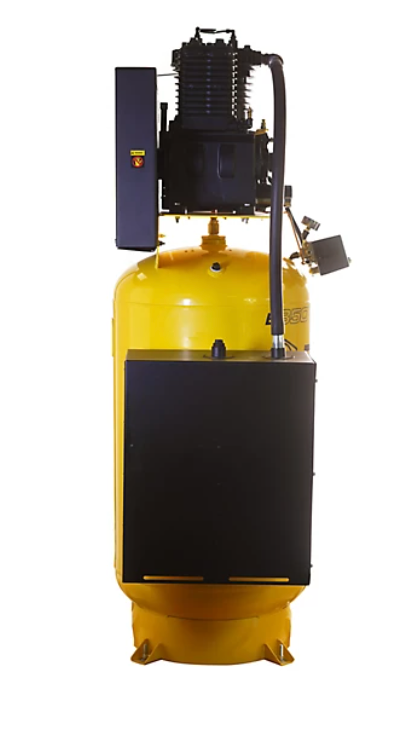

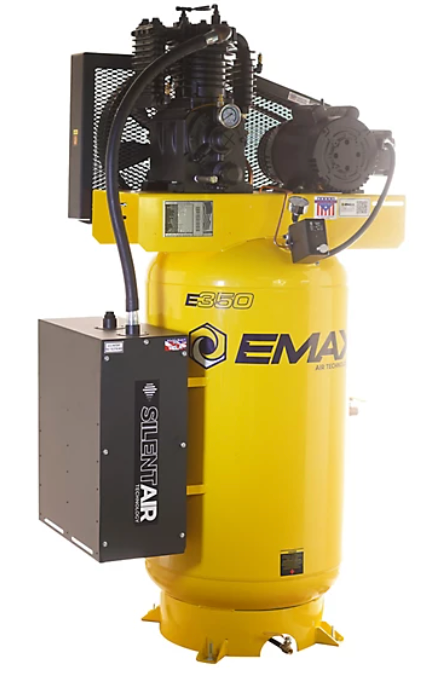

This EMAX Industrial 5 HP 2 Stage Inline, 1 Phase vertical 80 gal. Piston Air Compressor is designed for up to 70,000 hours. This unit delivers 19 CFM 100 PSI, top PSI of 175. Our unit features industrial ODP electric motors, Condor Pressure Switch, manual ball valve tank drain, powder coated ASME tank 200PSI rating, all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

What's Included

  • (1) EMAX Industrial w/Silent Air 5 HP 1 PH 80 Gallon Vertical

Features + Benefits

  • Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating Condor switch Silent Air Technology helps this air compressor run quietly All steel connecting rods with replaceable rod bearing inserts can be rebuilt Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat All cast iron cylinder heads are more durable and dependable Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM) Precision ground pistons machined to tight tolerances ensures low oil carry over Premium non-absorbent gaskets prevent oil seepage from pump All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor Built-in head unloaders Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank Large 1-3/8 in. output shaft Dynamically balanced armature for low vibration levels ELT Certified
