Features

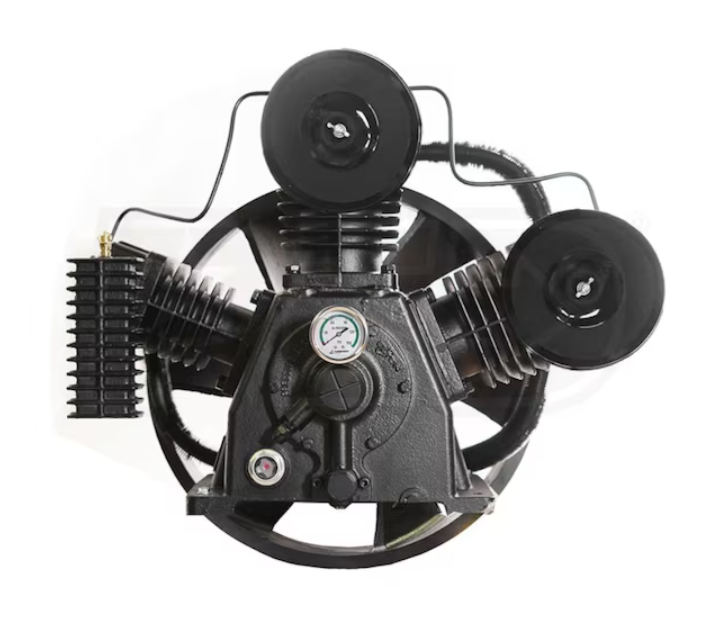

- Solid Cast Iron Two-Stage 4-Cylinder Piston Pump
· Oil lubricated design to extend pump life
· Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
· All solid cast-iron - cylinders, crankcase, flywheel, crankshaft & valve plates
- 44 CFM Displacement @ 0 PSI & 38 CFM @ 100 PSI
· Pressure lubricating pump ensures oil to all critical components
· Delivers constant lubrication even at speed as low of 100 RPMs
- Ram-Tek - Solid Steel, Heavy Gauge Rods
· Designed for maximum performance and durability
- Cool-Tek - The Coolest Running Compressors In The Industry
· Air Stream Technology provides 35% lower operating temperature
· Reduces moisture build up and extends pump life
- Industrial Grade Ball Bearings
· For maximum performance and extended pump life
- High Quality & Reliable Features
· Large oil site glass, low oil shutdown & pressure gauge
· Aftercooler for maximum cooling and large steel automotive type filters
· Built-in head unloaders designed for continuous run & twin B-section belt drive
- Specifications:
· Maximum PSI of 175
· Includes break-in oil; Holds 2.5 quarts of oil
- 1-Year Standard Limited Manufacturer Warranty
· Extends to 5-years with purchase of Maintenance Kit Model: EFKIT009WBS
| Specifications | |
|---|---|
| Engine | |
| HP | 15 |
| Pump | |
| CFM | 44 |
| CFM Rated @ | 0 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Full Pressure Lubrication |
| Pump Low Oil Shut-off | Yes |
| Overview | |
| Product Category | Air Compressor Parts |
| Weight | 322 Pounds |
| Consumer Warranty | 1 Year |
| Product Length | 18 Inches |
| Product Width | 26 Inches |
| Product Height | 28 Inches |
| UPC | 815002017983 |
