Features

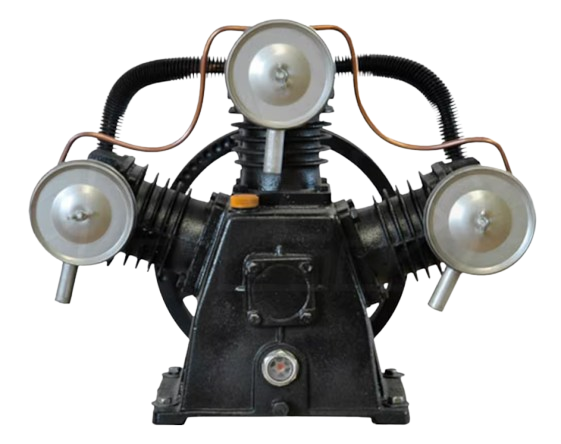

· Solid Cast Iron Single-Stage Piston Series Pump
· Oil lubricated design to extend pump life
· Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
· Ram-Tek - Solid Steel, Heavy Gauge Rods
· Designed for maximum performance & durability
· Cool-Tek - The Coolest Running Compressors In The Industry
· Air Stream Technology provides 35% lower operating temperature
· Reduces moisture build up & extends pump life
· Flow-Tek - Concentric Disc Valves
· Deliver maximum air flow & reliability with low replacement costs
· Easily accessible design provides easy maintenance & durability
· Industrial Grade Ball Bearings
· For maximum performance & extended pump life
· Built-In Head Unloaders
· Designed for continuous run applications
· Bolt Pattern: 8-1/4" x 5-1/4"
| Specifications | |
|---|---|
| Engine | |
| HP | 5 |
| Pump | |
| CFM | 14 |
| CFM Rated @ | 100 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 135 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
| Overview | |
| Weight | 80 Pounds |
| Consumer Warranty | 2 Years |
| Product Length | 15 Inches |
| Product Width | 19 Inches |
| Product Height | 16 Inches |
