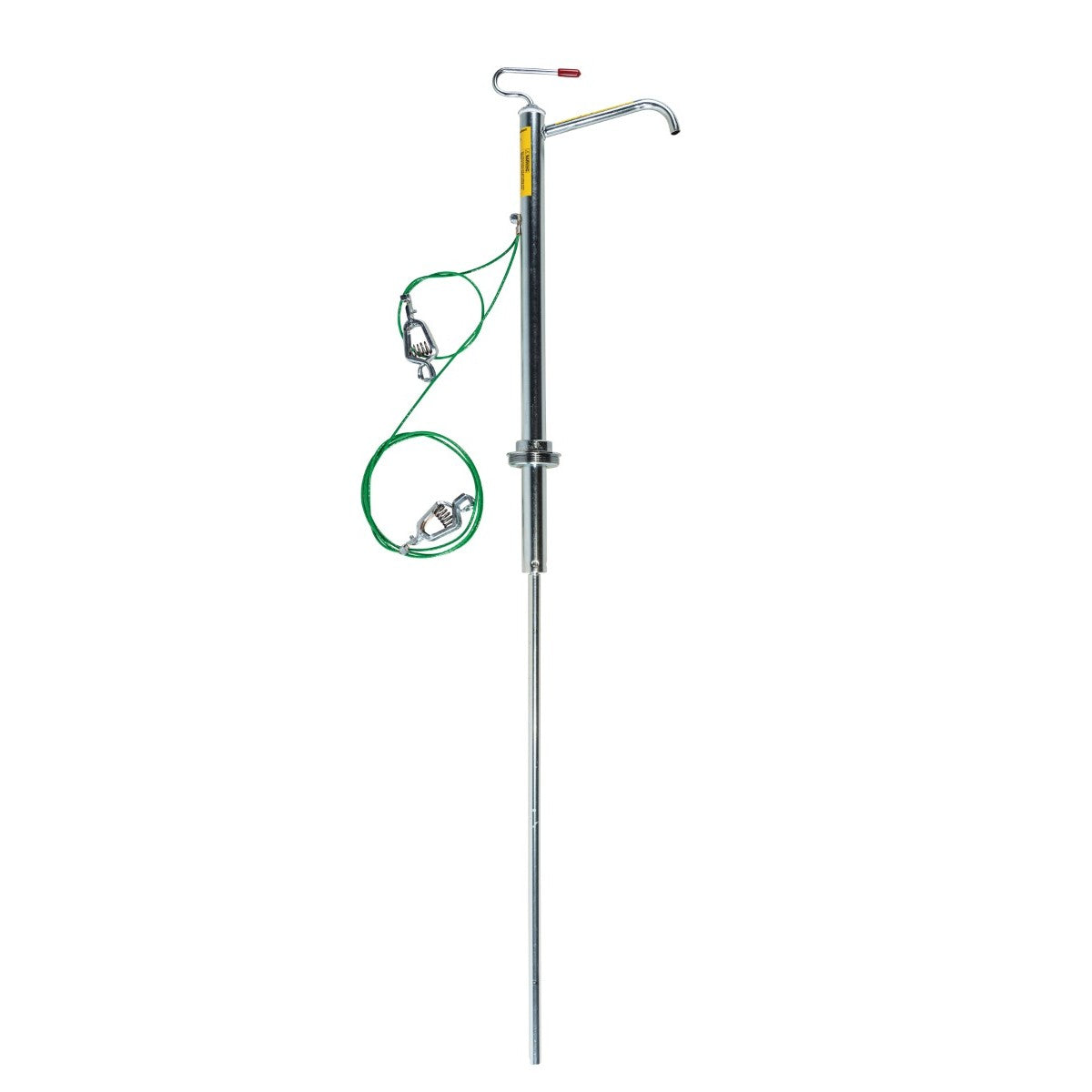

Because small quantity dispensing or controlled transferring of flammable liquids from 30 and 55 gallon drums is no easy task, this manually operated, electro zinc plated steel piston drum pump can help. It is FM approved and delivers up to 8 oz. per stroke. The pump can be used with up to 90 weight oil viscosity at 70F. Its body is constructed of Electro Zinc plated steel with PTFE seals, offering superior chemical resistance and a long life.

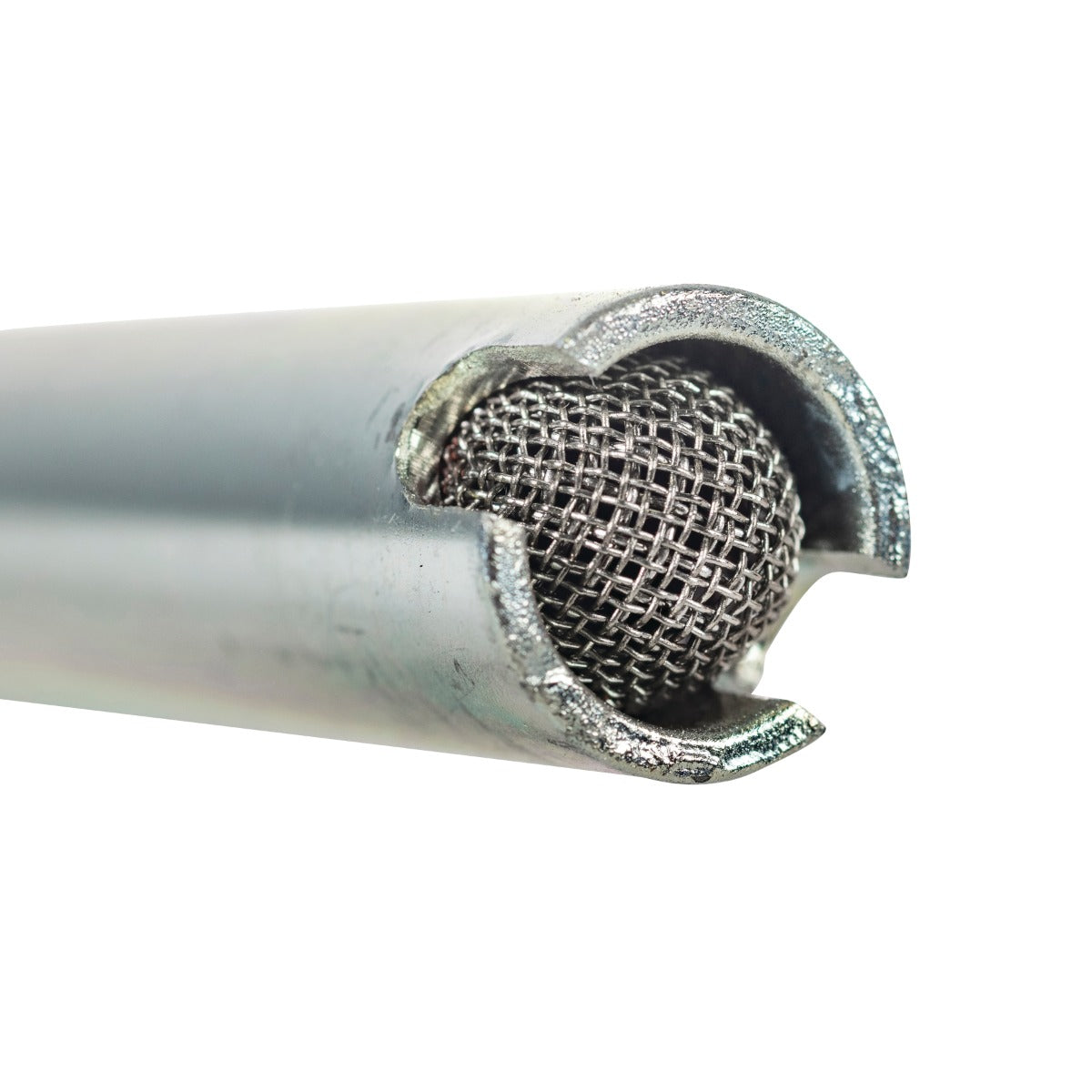

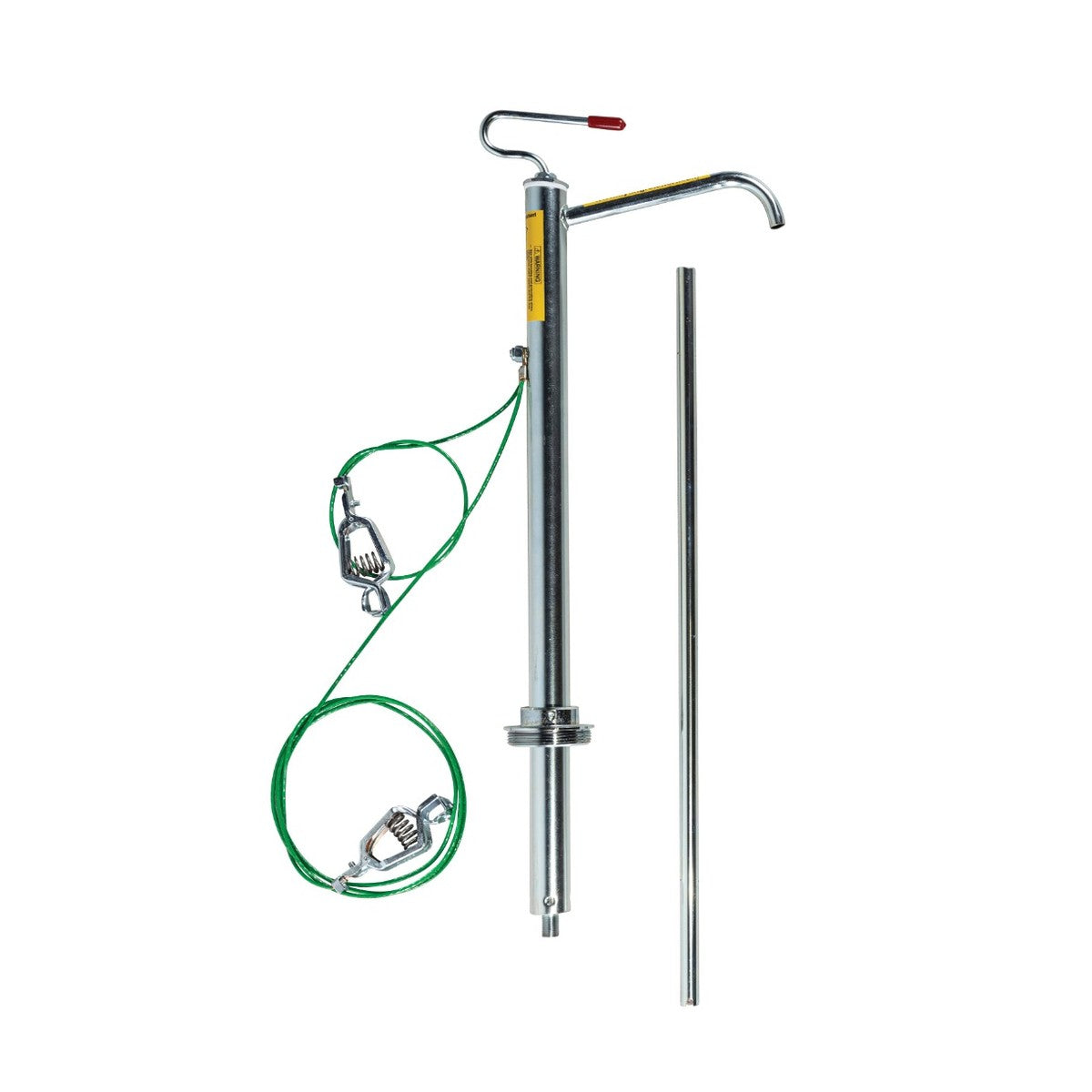

Included with the pump is a standard two-inch NPT threaded bung adapter and pick-up tube that allows the drum pump to reach up to 36 inches below the lid of the drum. A flash arrestor keeps contents safe from external flame flashbacks. The bonding and grounding clamps come pre-assembled and provide the means to safely ground the receiving container to avoid a static discharge.
Additional Specs
| Color: | Silver |
| Material Specifications: | Electro Zinc Plated Steel |
| Dimensions, Exterior: | 46" H x 9" W x 1.25" D |
| Dimensions, Exterior: | 1168.4mm H x 228.6mm W x 31.75mm D |
| FM Approval: | Yes |
| OSHA Compliance: | Yes |
| Flame Arrestor, inch: | .5 |
| Flame Arrestor, mm: | 12.7 |
| Flame Arrestor Material: | Electro Zinc Plated Steel |
| Mouth Diameter - inch: | 0.5 |
| Mouth Diameter - mm: | 12.7 |
| Type: | Piston |
| Action Type: | Manual |
| Max Viscosity (Wt.): | 90 |
| Maximum Ambient Temperature, °F: | 140 |
| Includes: | Pump, Pick-Up Tube, 2" NPT Bung Adapter, Grounding Wires with Clamps, Instructions Sheet |
| Net Weight, lbs: | 4 |
| Net Weight, kg: | 1.82 |
