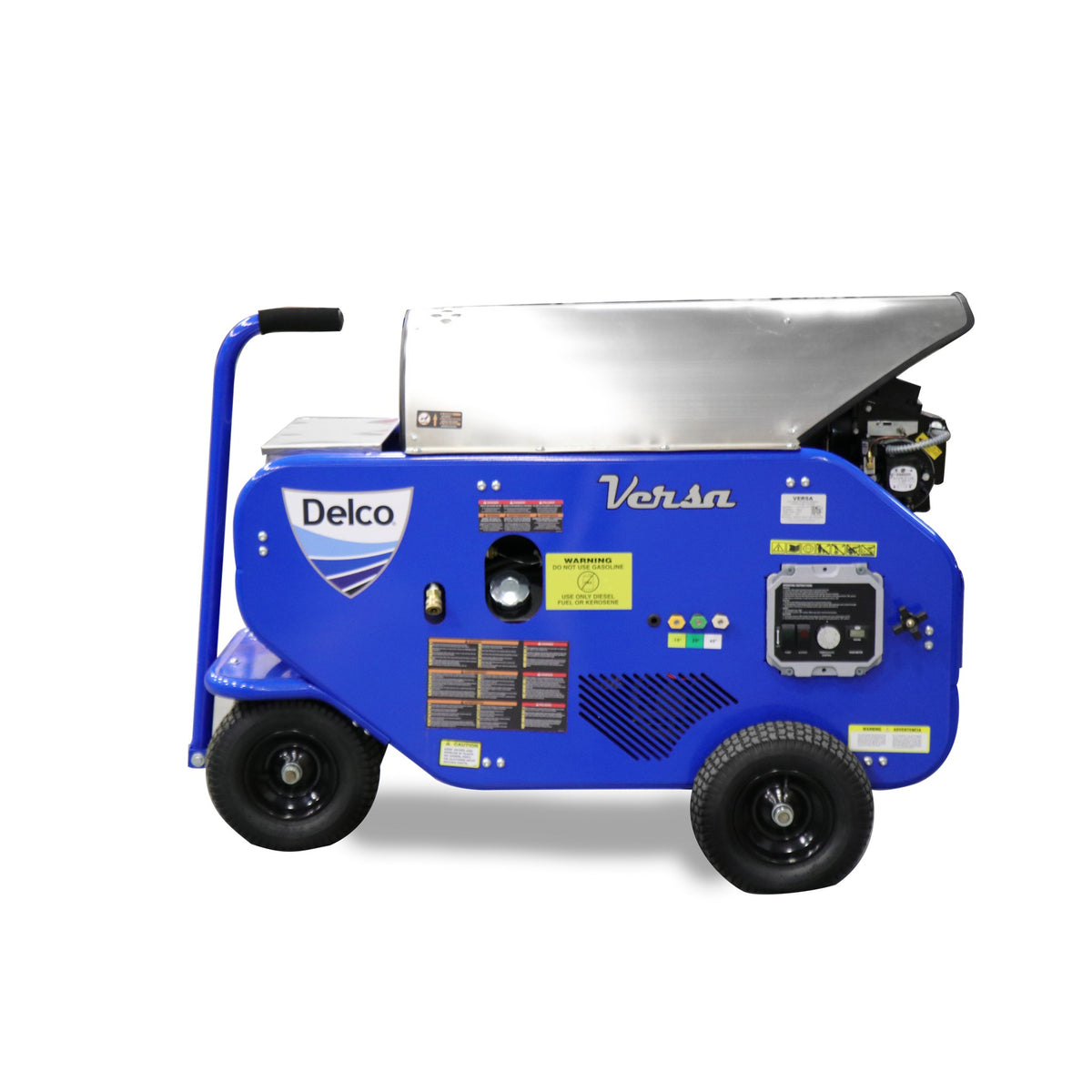

The Delco Versa DVST2.525041AAC1 (FNA part 65381) is a horizontal-coil electric Super Steamer. It delivers 250 PSI at 2.5 GPM (625 cleaning units). Power comes from a 0.75HP, 120V, single-phase, 8.4A motor driving a belt-driven UDOR® industrial triplex pump. An oil-fired burner heats the water and runs on No. 1/No. 2 diesel or kerosene. This model has a powder-coated frame and panels, and it suits professionals who need dependable hot-water and steam cleaning from a standard 120V electric supply.
Motor & Burner
- 0.75HP / 120V / 1-phase / 8.4A electric motor
- 1750 RPM slow speed
- Horizontal heat exchanger with stainless steel housing
- 120V or 230V burner that burns No. 1/No. 2 diesel or kerosene
- Large-capacity 6.7 gal. diesel fuel tank
- NEMA 4X electrical enclosure with burner on/off rocker switch, hour meter and time-delay shut-off
Pump
- UDOR® industrial triplex pump with belt drive
- Forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
Frame & Construction
- Heavy-duty 1-1/2" round tubular steel design
- Powder-coated frame and panels for corrosion resistance
- 13" premium pneumatic tires
- Dimensions: L 35" x W 30" x H 43"; weight 610 lbs
Included Equipment
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Quick-connect nozzles: 15°, 25° and 40°
- Upstream low-pressure soap injector
- Optional accessory: Auto Start/Stop Shut Off (part 7110785)
Warranty
- 10-year frame, 5-year pump, 1-year motor
Have questions about the Delco Versa Super Steamer or need help choosing the right hot water unit? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DVST2.525041AAC1 |
| Part Number | 65381 |
| Pressure | 250 PSI |
| Flow | 2.5 GPM |
| Cleaning Units | 625 |
| Motor | 0.75HP / 120V / 1-phase / 8.4A |
| Pump | UDOR® Industrial Triplex |
| Drive | Belt |
| Burner Fuel | No. 1/No. 2 diesel or kerosene (oil-fired) |
| Burner Voltage | 120V or 230V |
| Fuel Tank | 6.7 gal |
| Frame | Powder-coated 1-1/2" round tubular steel |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 610 lbs |
| Dimensions | L 35" x W 30" x H 43" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
