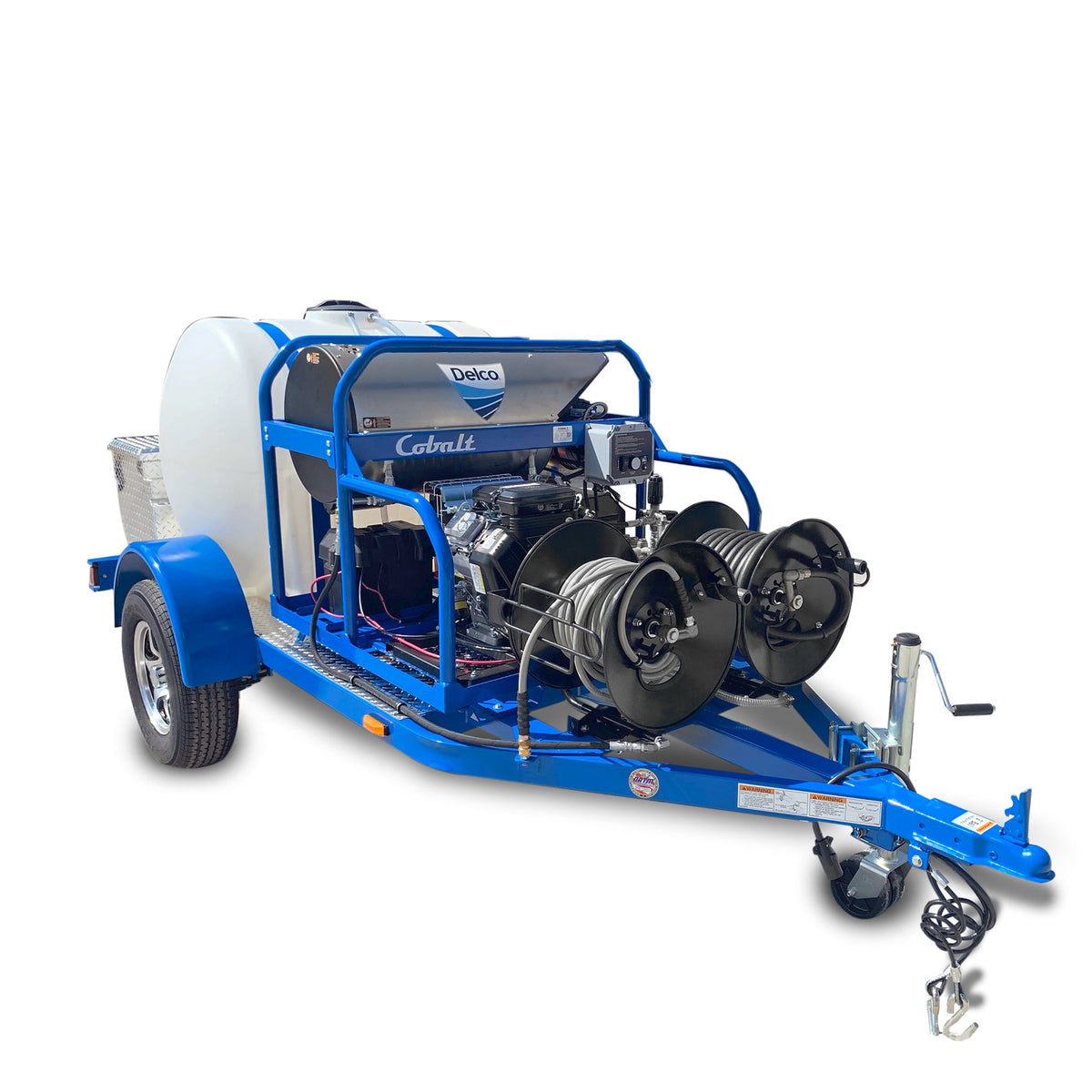

The Delco® Mobile Trailer DTRS33555241EAC11 (part 95178) is a Stage 3, self-sufficient hot-water pressure washer trailer. It delivers 3500 PSI at 5.5 GPM (19,250 cleaning units). Power comes from a Honda® GX690 688cc gas engine with recoil / key-start, driving a belt-drive UDOR® industrial triplex pump. An oil-fired burner heats the water. The trailer carries a 525-gallon water tank, so it works on job sites where water supply is scarce or limited. It suits contractors and fleet cleaning operations that need powerful hot-water cleaning in a fully mobile platform. Not for sale in California.
Engine & Pump
- Honda® GX690 688cc gas engine with recoil / key-start
- Low-oil shutdown
- UDOR® industrial triplex pump, belt drive, 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose to tank
Hot Water Burner
- Oil-fired burner runs on No. 1/No. 2 diesel or kerosene
- 120VAC burner
- 19,250 cleaning units of hot-water performance
Water Supply & Hose
- 525-gallon translucent polyethylene water supply tank with easy-to-read water level indicators
- 200' high-pressure hose reel with 100' of 3/8" steel-braided Armor Hose®
- 200' supply hose reel with 5/8" x 90' supply hose
- Quick-connect nozzles for a variety of cleaning applications
Trailer
- Two axles, 5200 lbs axle rating, with leaf-spring suspension
- Electric brake system
- 6" powder-coated C-channel trailer frame
- LED lighting
- 2-5/16" ball coupling
- ST225/75R15 tires
- Jack with swivel wheel for easy maneuvering
- Dimensions: L 192" (includes tongue) x W 90" x H 62"
- Weight: 3500 lbs
Included & Warranty
- Includes hose, lance, trigger gun and downstream injector
- Includes 15°, 25°, 40° and soap nozzles
- Warranty: 1-year trailer frame, 5-year pump, 3-year engine
Have questions about the Delco® DTRS33555241EAC11 Mobile Trailer or need help choosing the right setup? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | DTRS33555241EAC11 |
| Part Number | 95178 |
| Pressure | 3500 PSI |
| Flow | 5.5 GPM |
| Cleaning Units | 19,250 |
| Engine | Honda GX690 688cc (Recoil / Key-start) |
| Pump | UDOR industrial triplex, 1750 RPM |
| Drive | Belt |
| Burner Fuel | No. 1/No. 2 diesel or kerosene (oil-fired) |
| Burner | 120VAC |
| Water Tank | 525 gal |
| Axles | 2 (5200 lbs rating) |
| Tires | ST225/75R15 |
| Hitch | 2-5/16" ball coupling |
| Weight | 3500 lbs |
| Dimensions | L 192" (incl. tongue) x W 90" x H 62" |
