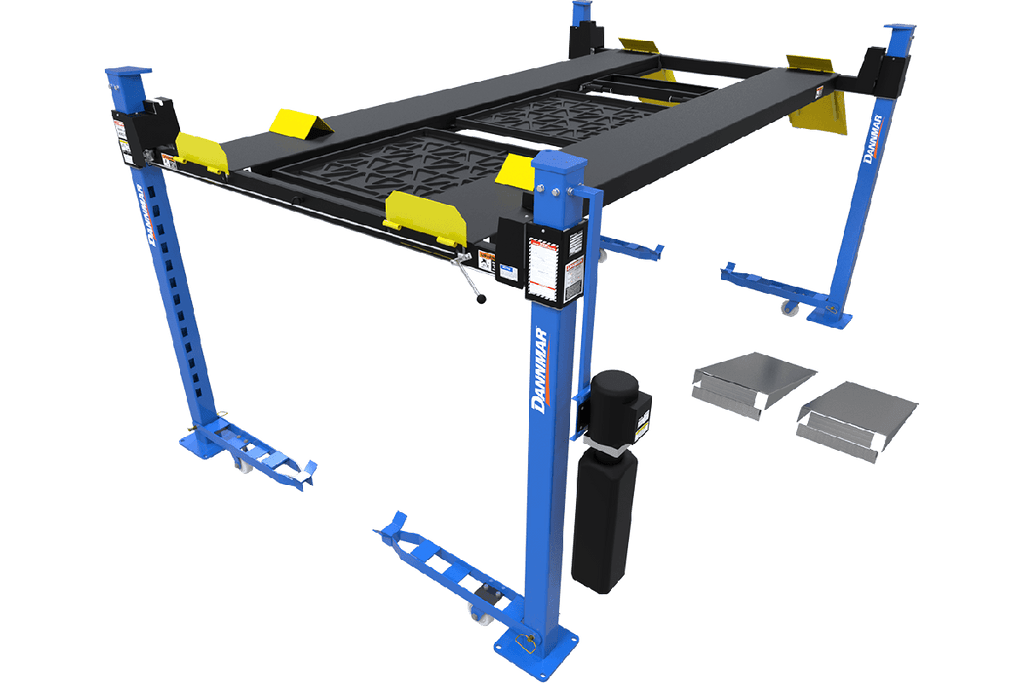

5175319 D4-9 Package DANNMAR 9K Capacity 4-Post / Incl. Caster Kit, Drip Trays and Alu. Ramps

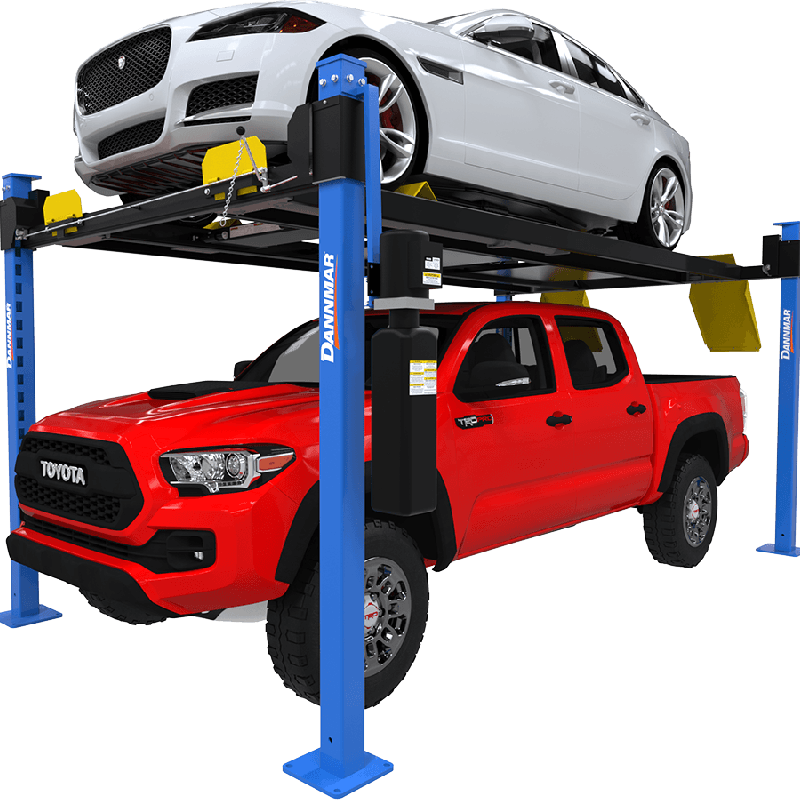

Dannmar’s D4-9 four-post lift delivers versatile productivity while allowing you to easily store project cars, classics, daily drivers, or even heavy pickup trucks. Dannmar’s D4-9 also comes standard with the accessories that most other car lift companies charge extra for. Mobile caster kits, drip trays, aluminum ramps, and more are all included. But a BIG plus of this four-post lift series is that you can store a vehicle raised above; and while having an open working space below. Dannmar’s D4-9 serves double-duty.

Features

  • The D4-9 is designed to be fastened to the floor or free-standing.

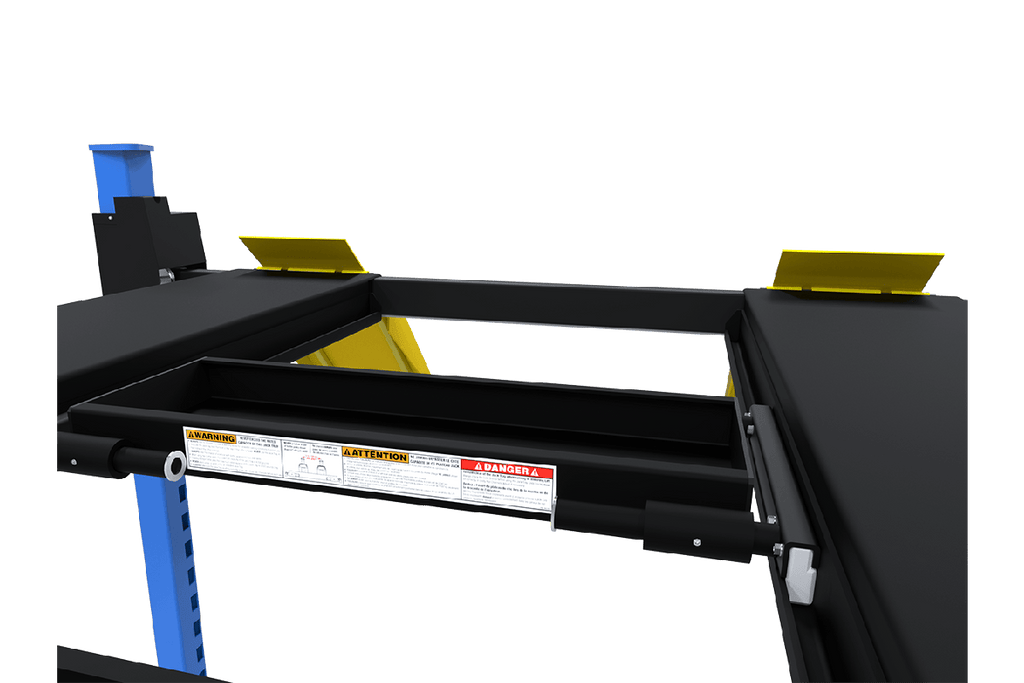

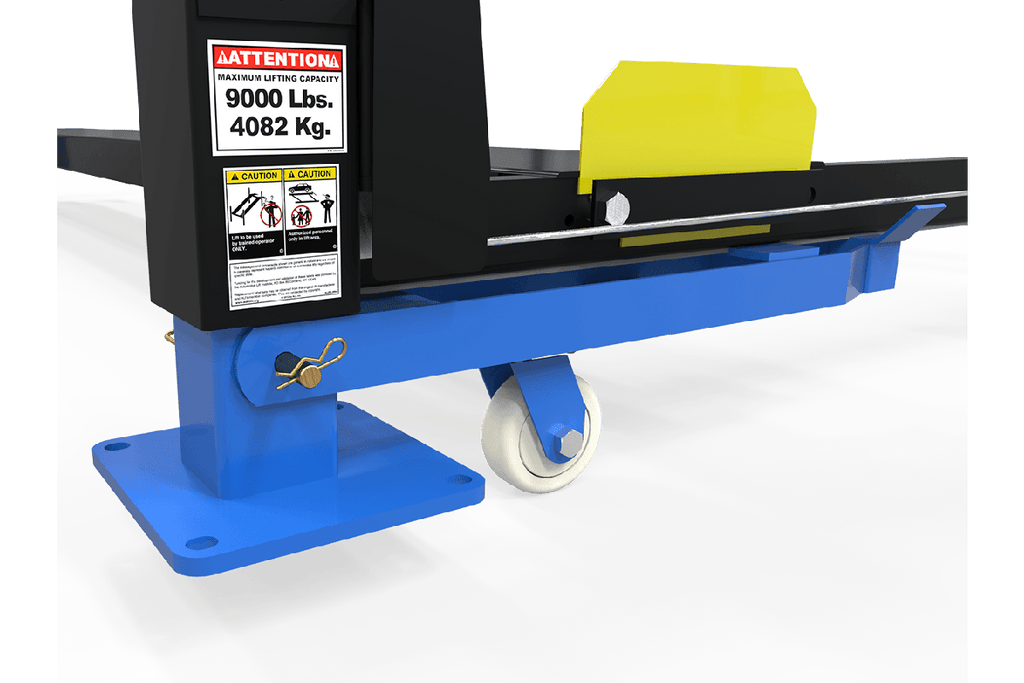

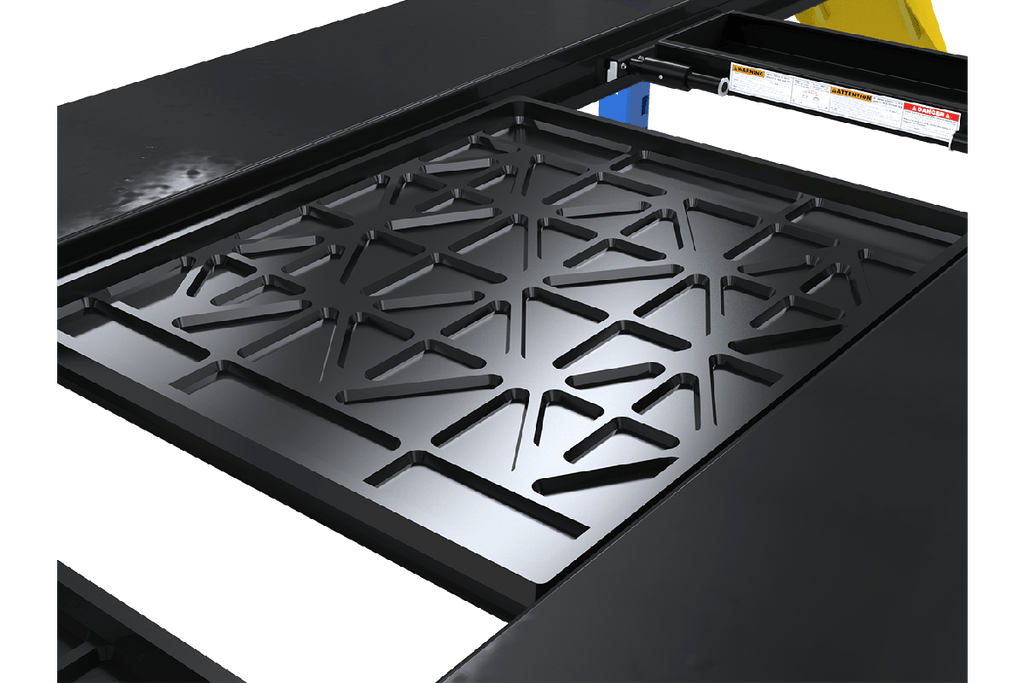

  • Comes standard with a mobile caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire.
  • Boxed-steel columns are made from structural 4.75” x 4.75" welded steel tubing.
  • Columns feature 12” x 12” baseplates 5/8” thick.
  • Manual dead-bolt locks are reliable and safe and are machined directly into the boxed-steel columns.
  • 3/4" thick steel safety locks are spring loaded for automatic and solid engagement.
  • 13 positive locking positions are spaced every 4 inches.
  • Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.
  • Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.
  • Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.
  • Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.
  • Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.
  • Low-profile runways are only 5" high to accommodate low ride-height vehicles.
  • Hardened steel safety lock linkages use 3/8” molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.
  • Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.
  • 5/8" thick top caps.
  • Pull out tire stops on both ends of the lift that allows drive through capability.
  • Stainless steel lifting cables are rated to handle over 14,000 lbs. each.
  • Pre-assembled cables simplifies installation.

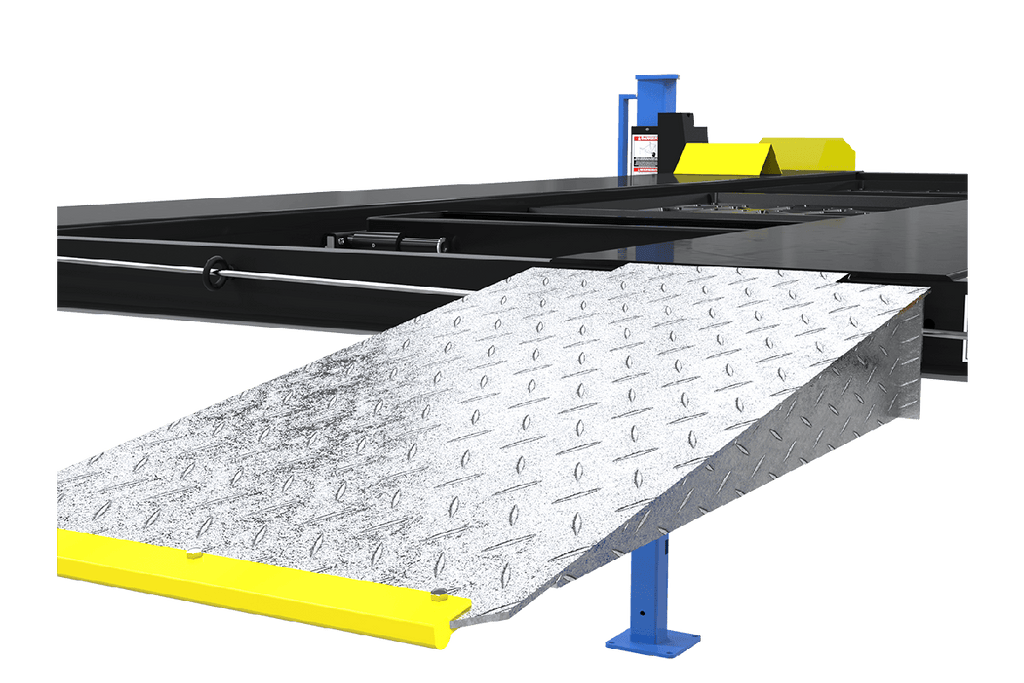

  • 36" aluminum approach ramps are gusseted to eliminate flex and bending.
  • 3/4" runway bolts provide positive attachment with increased safety factor.
  • Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.
Lifting Capacity 9,000 lbs. (4,082 kg)
A - Min. Runway Height 5” (127 mm)
B - Max. Rise 70” (1,778 mm)
C - Max. Lifting Height 75” (1,905 mm)
D - Height of Columns 89” (2,261 mm)
E - Drive-Thru Clearance 86” (2,184 mm)
F - Overall Width 114.5” (2,908 mm)
G - Width Between Columns 98” (2,489 mm)
H - Overall Length 203” (5,156 mm)
I - Outside Length 176.5” (4,483 mm)
J - Width Between Runways 37.5” (953 mm)
K - Runway Centerline 53.75” (1,365 mm)
L - Outside Edge of Runways 72.5” (1,842 mm)
M - Runway Width 18.75” (476 mm)
N - Length of Runways 165.5” (4,204 mm)
Min. Wheelbase @ Rated Capacity 115” (2,921 mm)
Min. Wheelbase @ 75% Capacity 100” (2,540 mm)
Min. Wheelbase @ 50% Capacity 85” (2,159 mm)
Min. Wheelbase @ 25% Capacity 70” (1,778 mm)
Locking Positions 13 (spaced every 4” / 102 mm)
Time to Full Rise 60 seconds
Motor
110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A
Shipping Weight 1,188 lbs. (538.9 kgs)
Shipping Dimensions 166" x 22" x 41" (4,216 mm x 558 mm x 1,041 mm)

;
