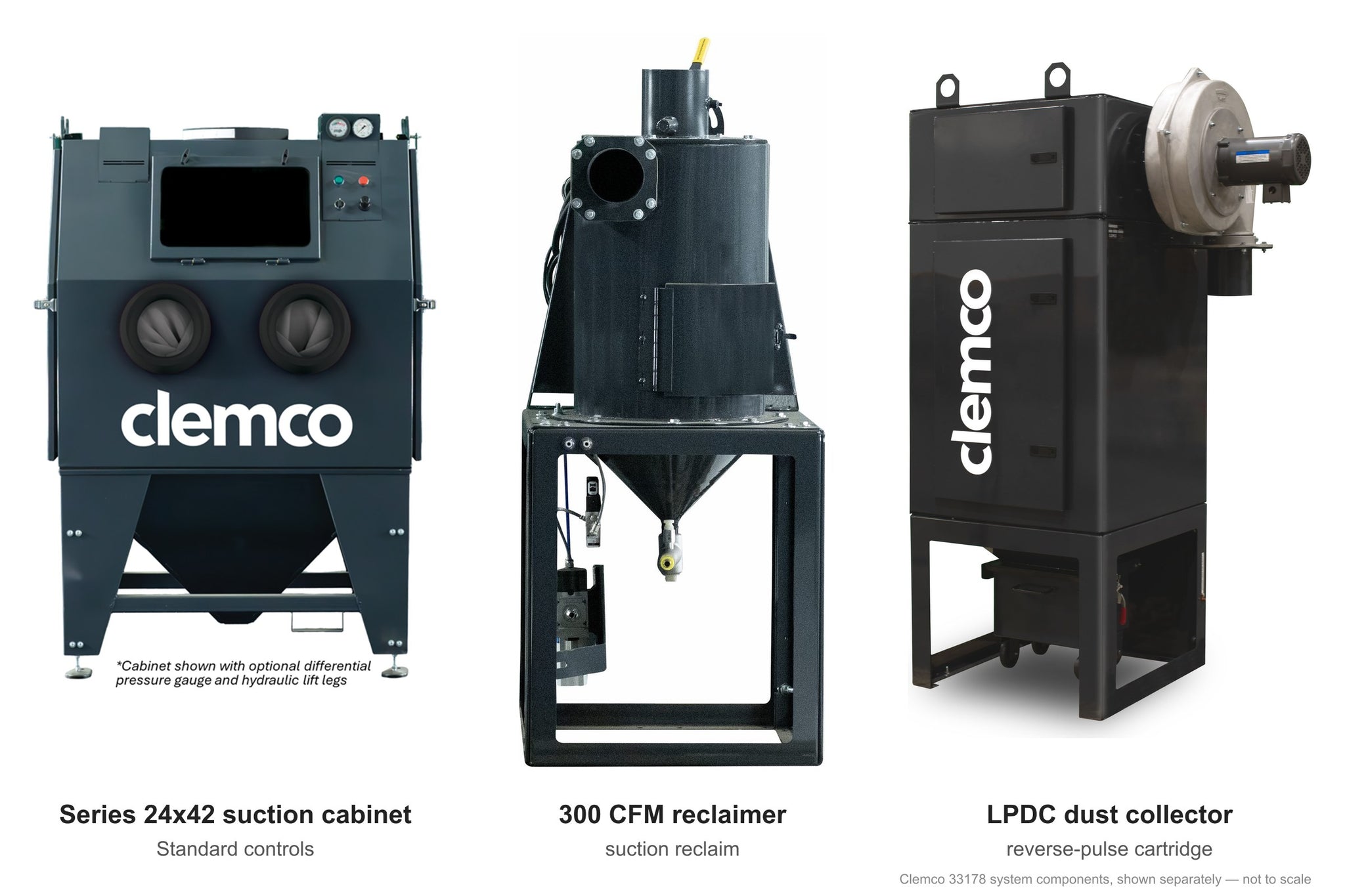

Clemco Industrial Series 24x42 suction blast cabinet system (Clemco 33178), configured with a 300 CFM suction reclaimer and LPDC reverse-pulse dust collector, set up for non-ferrous media on 115V 1-Phase power with Standard controls.
| Clemco part number | 33178 |
| Work chamber | 42" W x 24" D (Series 2442) |
| Overall cabinet dimensions | 67.75"H x 47"W x 29.7"D incl. door handles, glove ports and optional lift-leg cylinder |
| Cabinet weight | 400 lb (cabinet only) |
| Blast type | Suction |
| Reclaimer | 300 CFM suction reclaim |
| Dust collector | LPDC reverse-pulse dust collector |
| Media | Non-Ferrous Media — aluminum oxide, garnet, silicon carbide, glass bead and ceramic |
| Power | 115V 1-Phase, 60 Hz |
| Controls | Standard |
About this configuration
- 42" wide x 24" deep work chamber, the most compact cabinet option. Ideal for small to medium parts and facilities with limited floor space.
- Approx. Air Consumption: 33 CFM @ 80 PSI, #5 Nozzle Uses a siphon gun that draws media into the air stream via vacuum, offering lower media velocity and gentler action. More economical upfront and easier to operate, ideal for light to medium-duty cleaning and finishing.
- Aluminum oxide is a sharp, angular abrasive that cuts aggressively and produces a deep anchor profile. Ideal for surface preparation before painting or coating on both ferrous and non-ferrous metals.
- Glass bead is a spherical media that produces a smooth, bright satin finish without removing base material. Used for peening, deburring, and cosmetic finishing where a uniform appearance is required.
- Single-phase power suitable for facilities with standard electrical service. Recommended for smaller installations or locations without three-phase power available.
- Basic electronic controls for straightforward on/off blast operation. A reliable option for simple applications that don't require automated process control.
Industrial Cabinet Series features
- Operator-friendly features and commonality of parts for easier service
- Harnessed wiring for faster install and setup
- Improved arm ports (ergonomics) standard
- Standard electric foot pedal and safety interlocks
- Standard manually adjustable lift legs; hydraulic lift legs available as an upgrade on all cabinets
- Dust collector options for every size and budget
Accessories for this cabinet
- Clemco 32566 ALOX kit 2442S, factory installed (Clemco recommends with ALOX / Garnet media)
- Clemco 32503 Curtain set, 2442 cabinet
- Clemco 24744 Mat, floor, anti-fatigue, rubber, 2'x3'
- Clemco 12318 Gun mount, BNP, adj (suction only)
- Clemco 22502 Filter element, HEPA 24"x24"x12"
- Clemco 12528 Manometer kit
- Clemco 23147 Screen, recl, #8 mesh w/magnets
- Clemco 23146 Screen, recl, #4.5 mesh w/magnets
- Clemco 12411 Turntable, 20" dia, w/brng, 500#
- Clemco 12412 Turntable, 20" dia, w/o brng, 25#
- Clemco 33127 Hydraulic lift legs, factory installed
- Clemco 33047 Dust collector differential pressure gauge, factory installed
Choose one of each: 23147 or 23146; 32562 or 32563; 32564 or 32565; 14130 or 28901; 28894 or 28902; 32566 or 33174; 13410 or 23625; 13410 or 23626.
Recommended service spares
- Clemco 12301 Gun asmbly, #4 BNP
- Clemco 12302 Gun asmbly, #5 BNP
- Clemco 12303 Gun asmbly, #6 BNP
- Clemco 12304 Gun asmbly, #7 BNP
- Clemco 12305 Gun asmbly, #8 BNP
- Clemco 11935 Nozzle, #5 boron carbide
- Clemco 11936 Nozzle, #6 boron carbide
- Clemco 11937 Nozzle, #7 boron carbide
- Clemco 12894 Nozzle, #8 boron carbide
- Clemco 11931 Nozzle, #6 ceramic, blue tip
- Clemco 11932 Nozzle, #7 ceramic, red tip
- Clemco 11930 Nozzle, #5 ceramic, green tip
- Clemco 13118 Nozzle, #5 tungsten carbide
- Clemco 12212 Window glass, 12-1/2" x 19-1/2"
- Clemco 06190 Lenses, for cab window 12212, 5-pk
- Clemco 31862 Filter, 13x36, 900cfm, MERV 15
