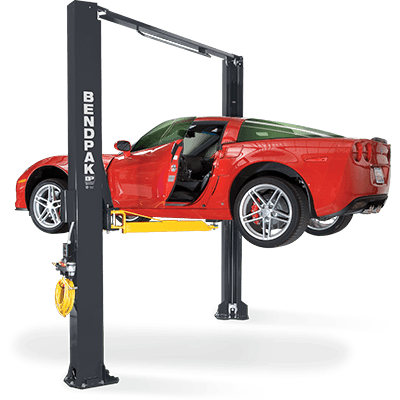

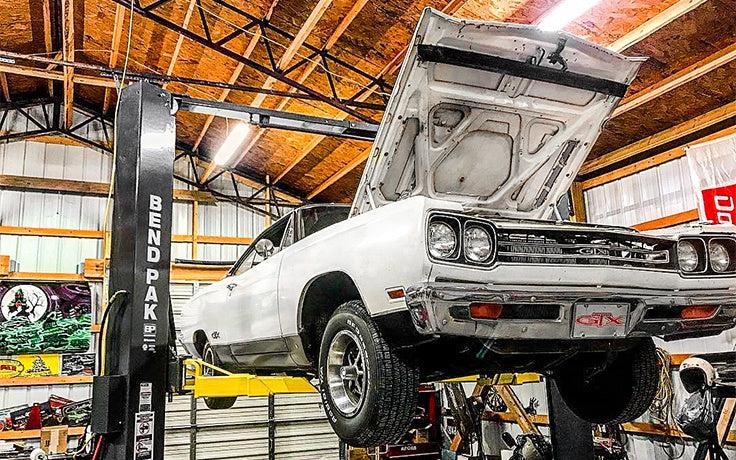

BendPak XPR-10AS-LP Screw Pads Adjustable Width Asymmetric Clearfloor 10,000-lb. Capacity Two-Post Lift

XPR-10AS (5175397) 10,000-lb. Capacity / Asymmetric Clearfloor / Adjustable Width / Screw Pads

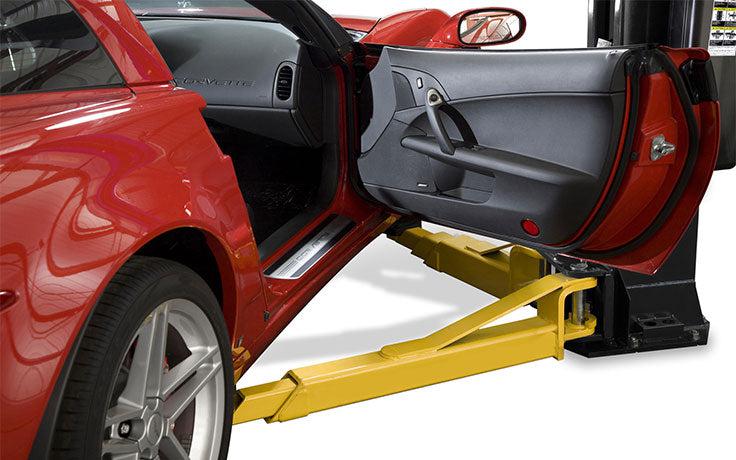

Every XPR-10AS features Direct-Drive technology that’s only available with BendPak. The asymmetrical design of this lift has rotated columns, which makes it easier to enter and exit the vehicle and reduces the chance of door dings and dents.

Features & Specs

• 10,000‐lb. lifting capacity
• Expandable top beam accommodates wide or narrow drive‐thru configuration

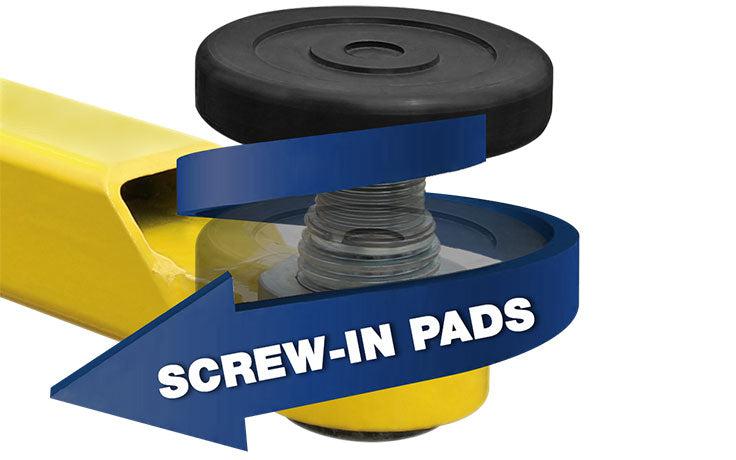

• Double‐telescoping screw pads offer increased versatility
• Added overhead safety shutoff bar
• Exclusive Tru‐Metric arm design for more versatile arm positioning
• 30° rotated single‐piece columns
• Single‐point safety release
• Drop‐end arms provide a lower pad height
• Dual hydraulic direct‐drive cylinders
• Oversized 53" tall carriage for superior strength and durability
• Electric / hydraulic power system
• Large, 17" x 19" A36 steel base plate
• Self‐lubricating dura‐glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3"
• Plated arm restraints and arm pins for rust prevention
• Heavy‐duty 1/2" aircraft‐quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue
• 4‐piece 63 mm stackable adapter set comes standard
• Triple‐telescoping arm design

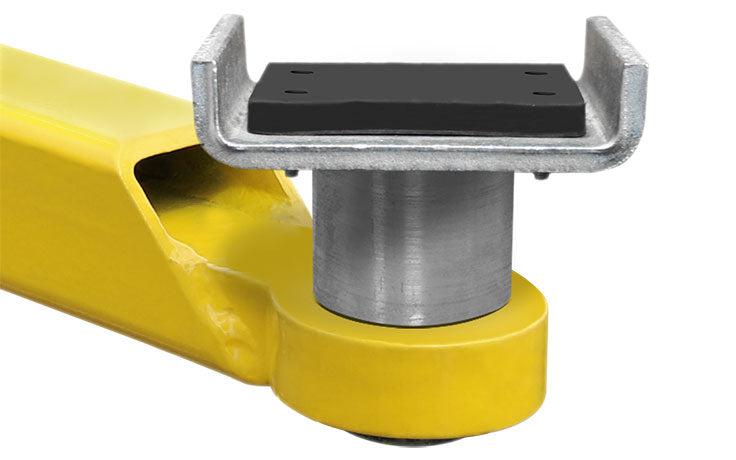

• Versatile drop‐in contact pads with stackable adapters
• ETL Approved

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).

WARNING: California Prop 65

Capacity
Lifting Capacity* 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle 5,000 lbs. (2,268 kg)
Rise
A - Rise: 69" (1,753 mm)
B - Rise + Pad Only: 73" (1,854 mm)
C - Rise + Pad + 63 mm Adapter: 79" (2,007 mm)
D - Min. Height + Pad: 4" (102 mm)
Time to Full Rise: 45 seconds
Outside Dimensions
E - Height Overall: 145" (3,683 mm)
F - Width Overall: 137" (3,480 mm) or 145" (3,683 mm)
G - Outside Columns: 133.25" (3,385 mm) or 141.25" (3,588 mm)
Inside Dimensions
H - Inside Columns: 106.25" (2,699 mm) or 114.25" (2,902 mm)
I - Drive-Thru Clearance: 93.75" (2,381 mm) or 101.75" (2,584 mm)
J - Floor To Overhead Switch: 141" (3,581 mm)
Arms & Pads
K - Front Arm Reach: (MIN) 23.5" (597 mm)
K - Front Arm Reach: (MAX) 43.75" (1,111 mm)
L - Rear Arm Reach: (MIN) 40.25" (1,022 mm)
L - Rear Arm Reach: (MAX) 58" (1,473 mm)
Screw Pad Adjustment: 2" (51 mm)
Max Load Per Arm 2,500 lbs. (1,134 kg)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB
Shipping
Weight: 1,786-lbs. (810.1 kg)
Dimensions: 150'' x 24'' x 40'' (3810 mm x 609 mm x 1,016 mm)
