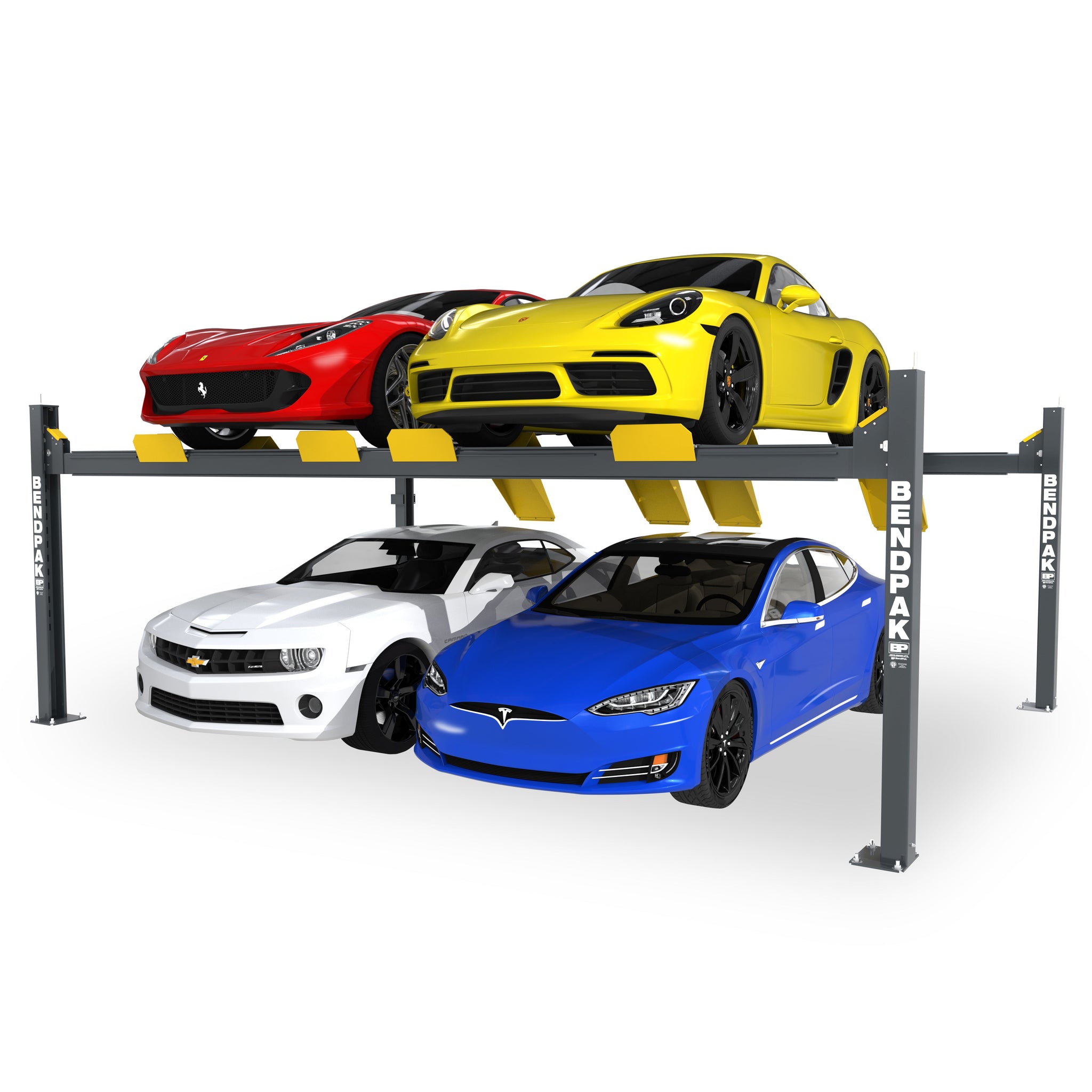

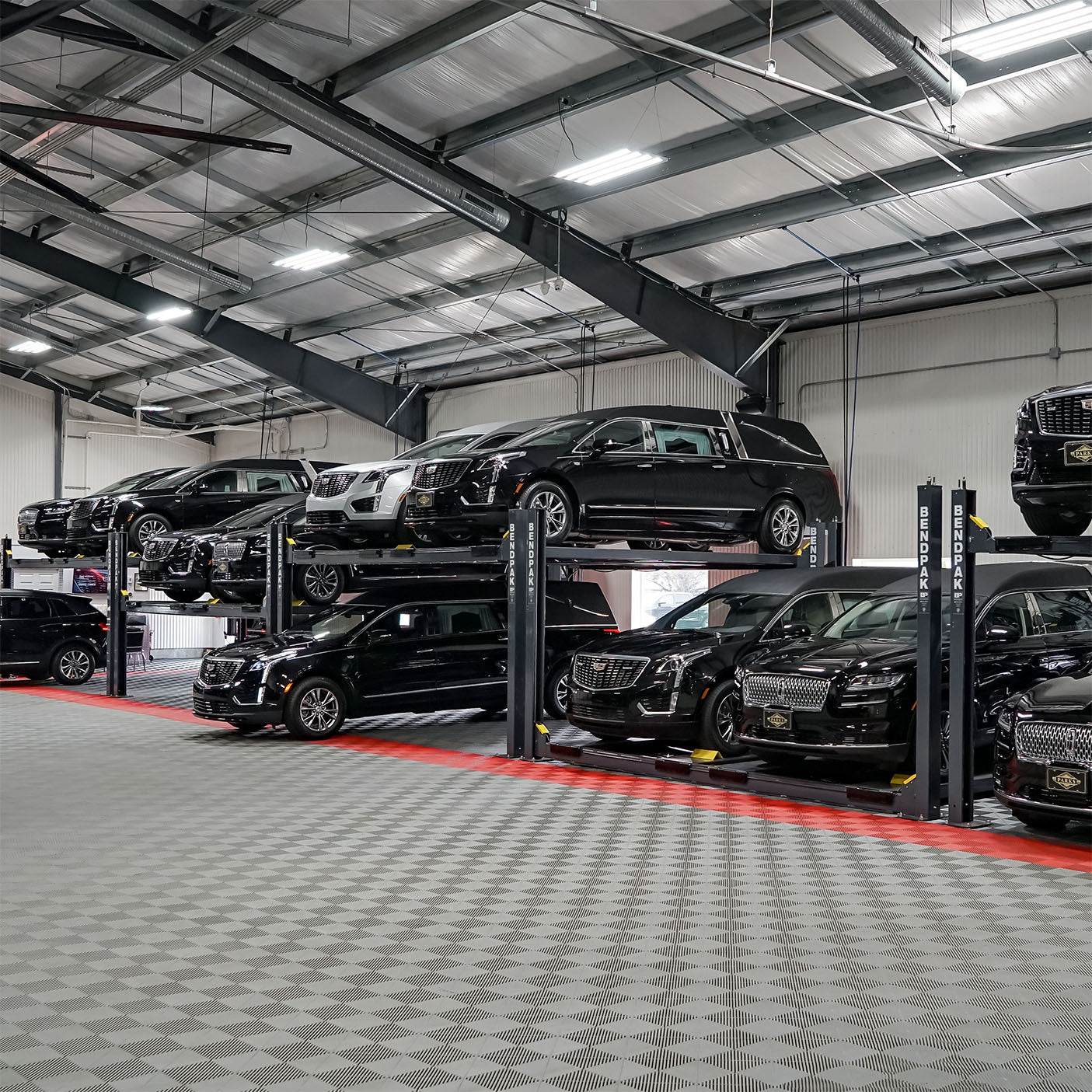

Double-Wide Parking Power for Serious Vehicle Storage
The BendPak HD-9SW-E Four-Post Lift gives owners a super-wide, dual-platform parking solution for garages and shops where protected vehicle storage matters. Based on the HD-9SW double-wide concept, this 9,000-lb. four-post lift is made for users who want to stack vehicles across two platforms and reclaim floor space without turning the garage into a parking puzzle.
Its open-center runway design keeps the lift useful beyond storage, making the HD-9SW-E a practical choice for customers who want parking capacity and service access in the same footprint. Whether the goal is storing collector cars, protecting daily drivers, or improving shop parking density, this double-wide four-post lift gives users more room to work with.

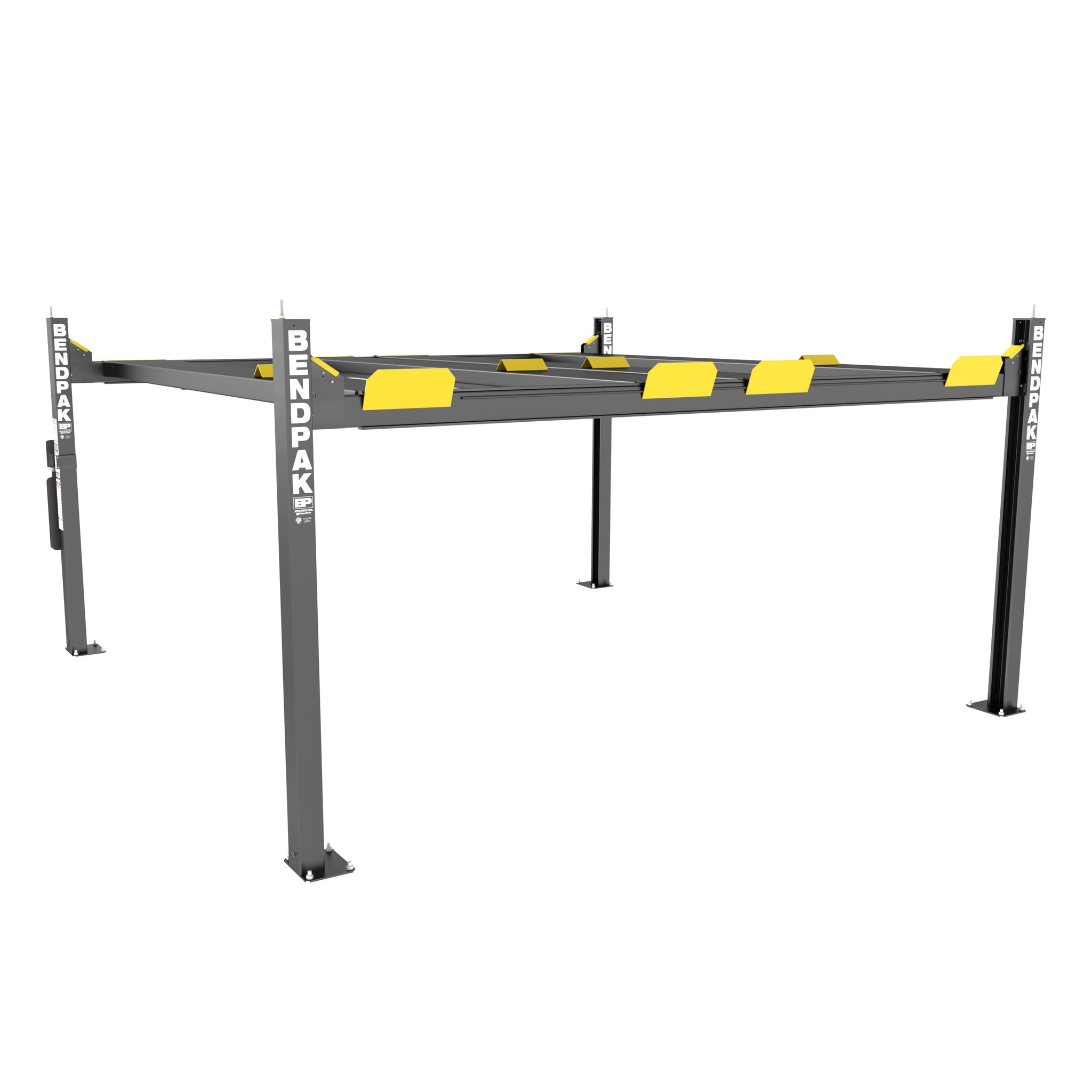

Built Around a Super-Wide Dual-Platform Layout
The HD-9SW-E uses the same super-wide dual-platform approach that makes the HD-9SW family so useful for high-density parking. The four-runway layout and wide post-to-post clearance support quad-vehicle storage while keeping the lift approachable for garages and facilities that need more organization.
Adjustable inside runways help accommodate different tread widths, while the shorter runway design makes this model a smart option when users want double-wide capability without stepping into the extended-length version. It is a space solution first, with real BendPak service capability built in.
Protected Lift Components and Smooth Hydraulic Operation

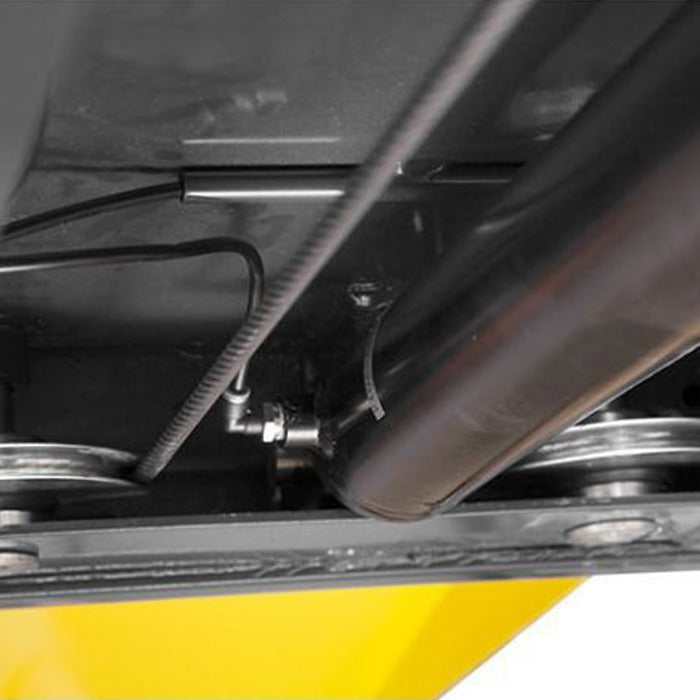

The HD-9SW-E uses an electric-hydraulic power system with a single hydraulic cylinder mounted beneath the runway. Lifting cables, safety locks, and sheaves are fully enclosed to help protect critical components and give the lift a cleaner finished appearance.
Dual-hub cable sheaves, oversized self-lubricating cable rollers, 3/8-inch aircraft cable, rugged roller axles, and internal anti-sway slider blocks help support stable lifting over repeated use. These are the details that keep a large double-wide parking lift feeling controlled, steady, and shop-ready.

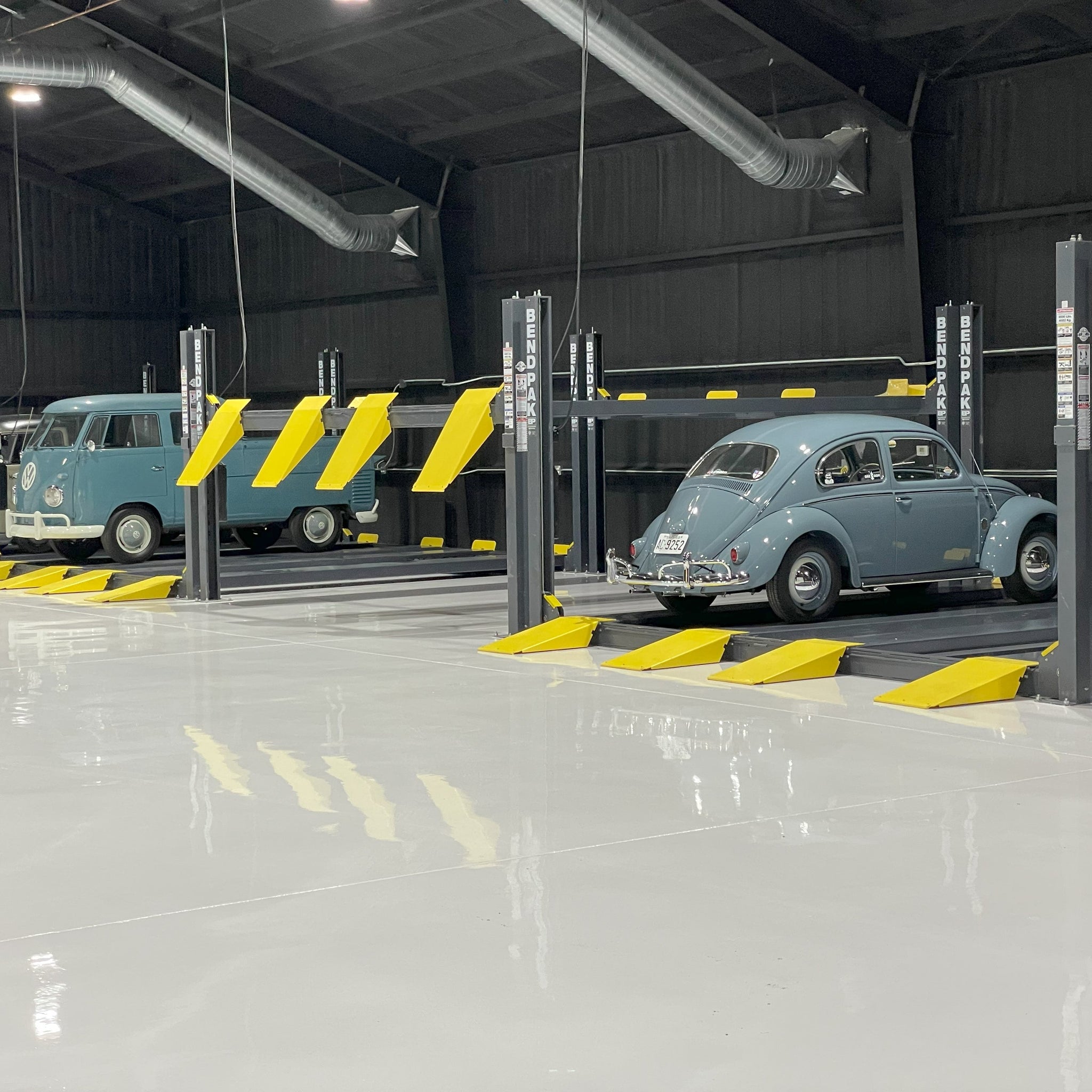

Configurable Four-Post Lift for Storage, Service, and Accessories
The HD-9SW-E includes multi-position safety locks, adjustable lock ladders, push-button pneumatic safety release, and independent backup slack-cable safety latches. Removable approach ramps add drive-under clearance, while runway rails support optional accessories that expand what the lift can do.
Users can add optional drive-thru ramps, drip trays, solid decks, or compatible 4,500-lb. air-hydraulic rolling bridge jacks to create a more complete storage and service setup. The HD-9SW-E is built for customers who want more usable garage from the space they already have.

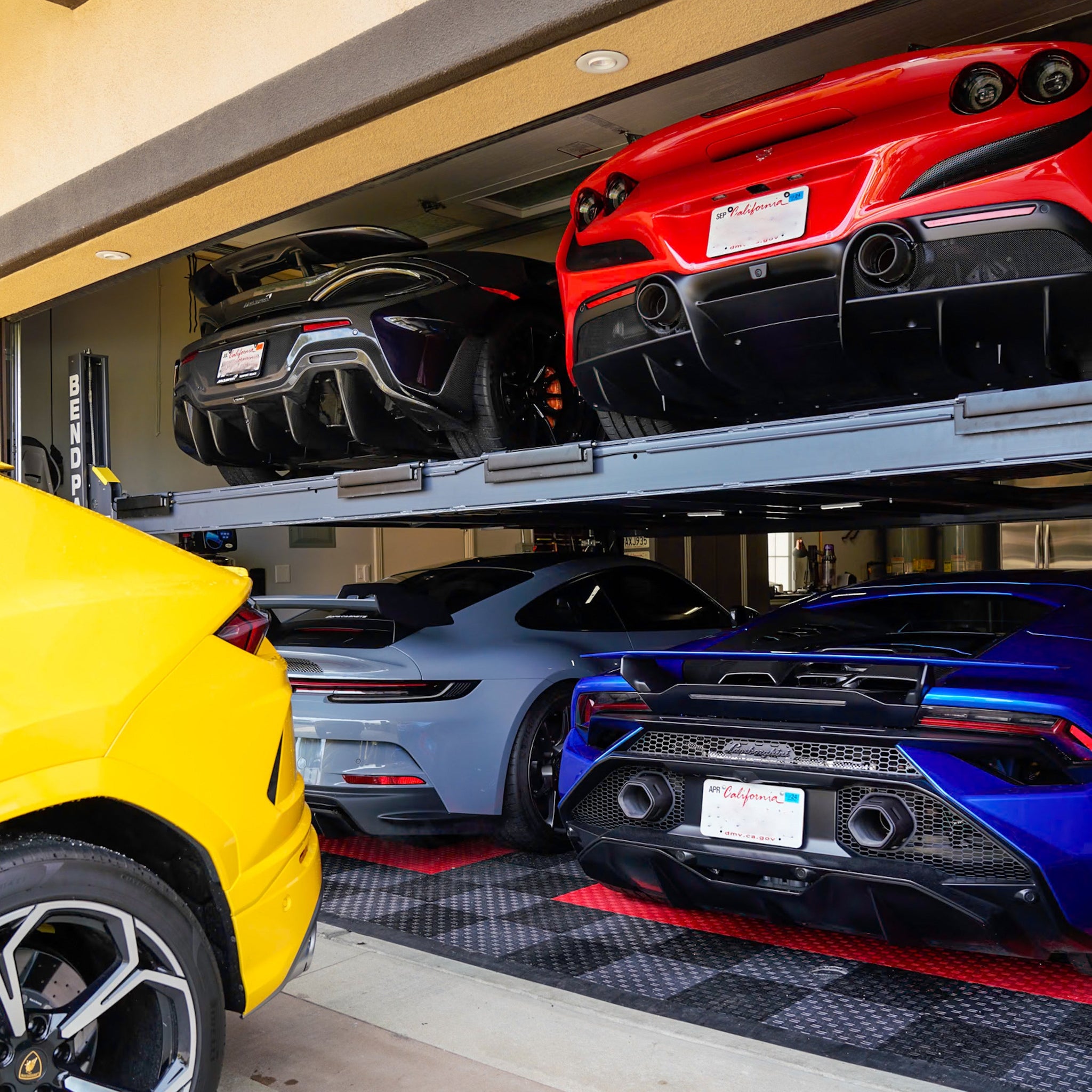

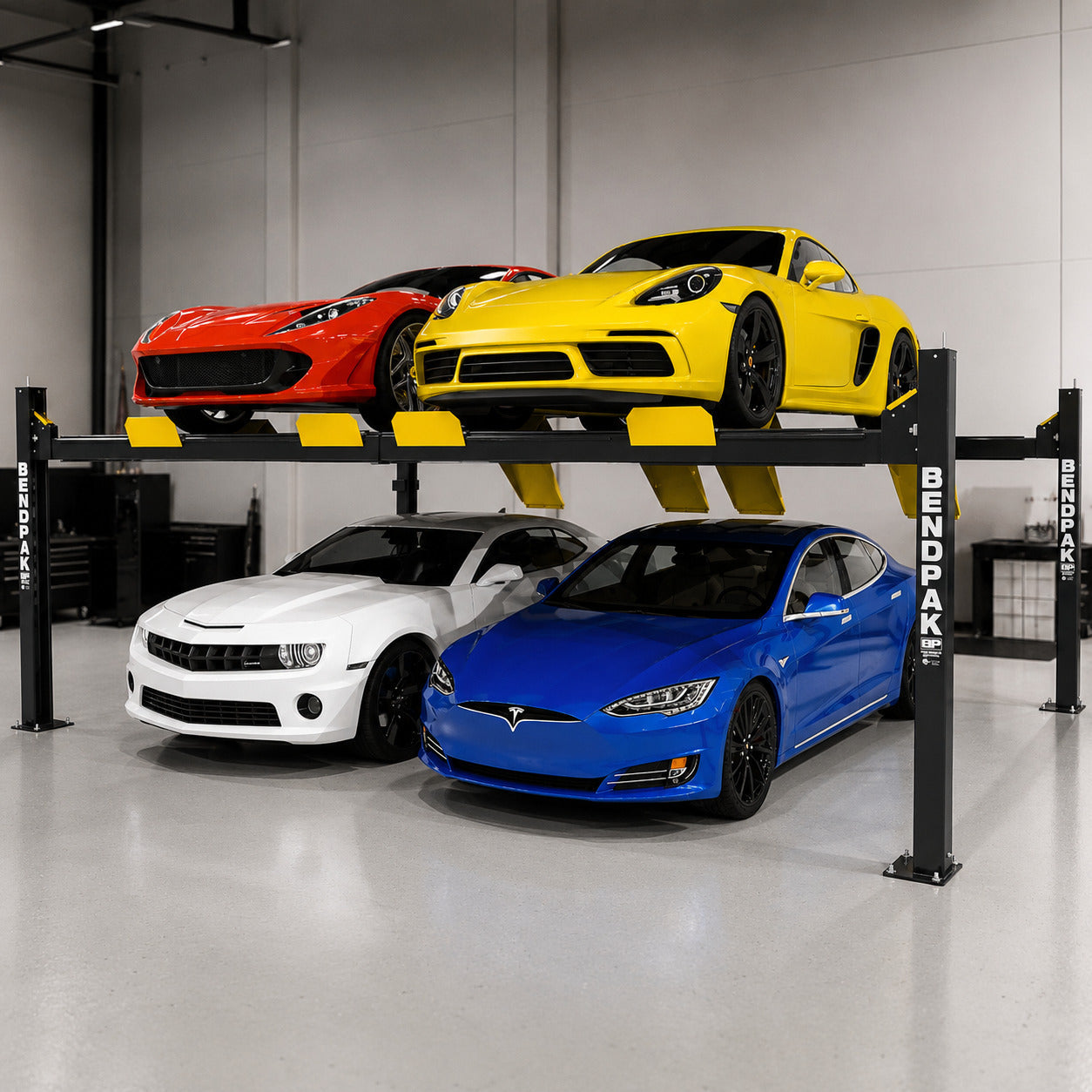

Quad-Vehicle Storage
The HD-9SW-E is built around double-wide four-post lift capability, helping users store more vehicles in the same garage or shop footprint.

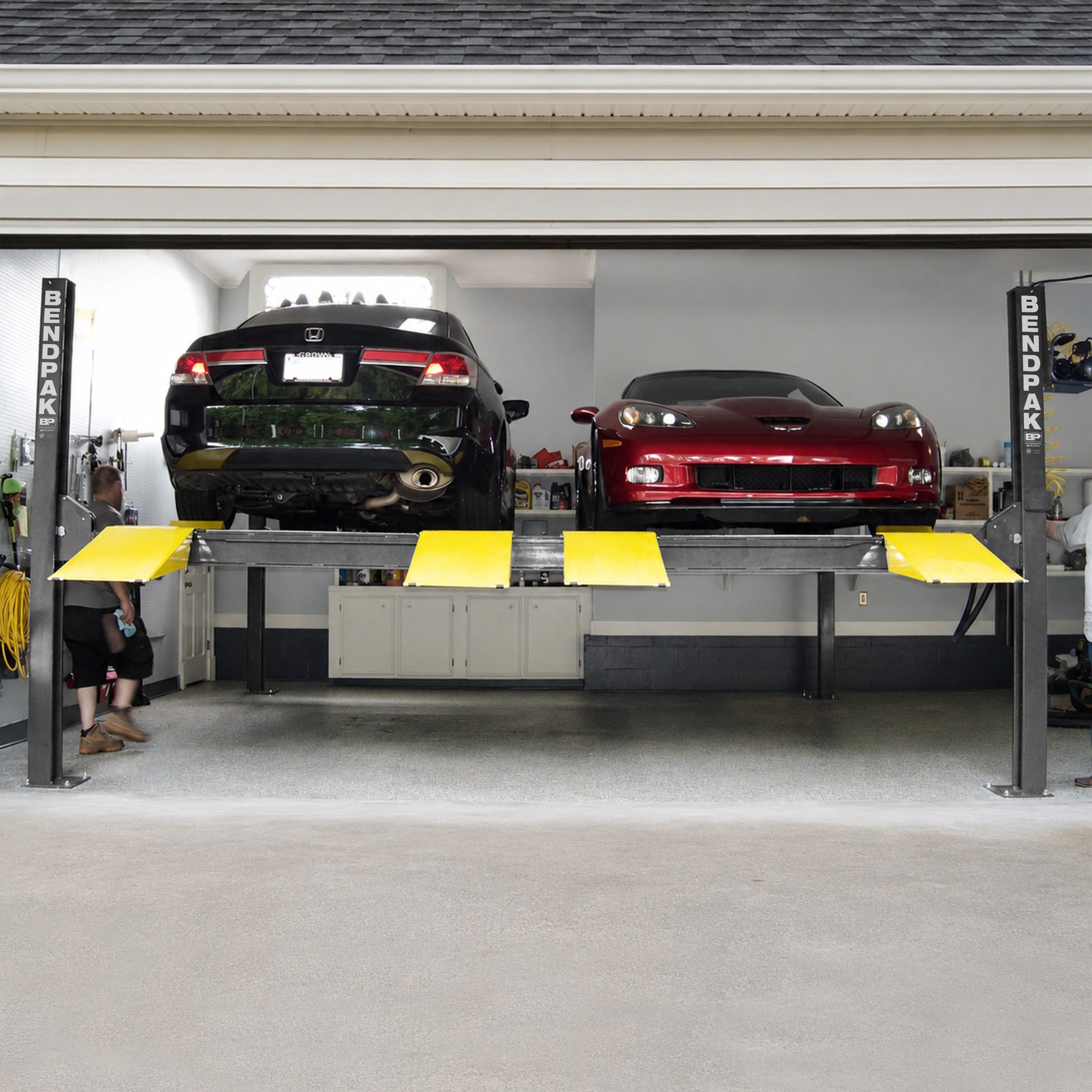

Super-Wide Platform
A wide dual-platform layout gives users room for side-by-side upper parking while preserving additional space below.
Adjustable Runways
Inside runways adjust for different tread widths, making the lift more adaptable to varied vehicle combinations.
Enclosed Lift Systems
Cables, safety locks, and sheaves are routed inside the lift structure for protection and a clean finished look.
Push-Button Release
The pneumatic safety release simplifies lowering while working with the lift’s multi-position lock system.
Storage Plus Service
Accessory-ready runway rails allow users to add drip trays, solid decks, drive-thru ramps, or rolling bridge jacks.
Recommended Add-ons
Features
- 9,000-lb. maximum lifting capacity
- Double-wide four-post lift configuration
- Designed for quad-vehicle storage
- Shorter runway for smaller spaces
- Runways accommodate wide or narrow vehicles
- Runways include rail kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Oversized sheave diameter reduces cable fatigue
- Features heavy-duty 3/8-inch aircraft cable
- Adjustable lock ladders
- Independent backup slack-cable safety latches
Specifications
| Lifting Capacity | 9000 lb |
| Min Runway Height | 7 in |
| Max Rise | 70 in |
| Max Lifting Height | 77 in |
| Width | 248 in |
| Outside Length | 174 in |
| Overall Length | 218.5 in |
| Height | 90 in |
| Inside Columns | 238 in |
| Drive-Thru Clearance | 81 in |
| Runway Width | 19 in |
| Runway Length | 164 in |
| Width Between Runways | 34.25 - 41 in |
| Runway Centerline | 56.25 - 62.75 in |
| Outside Edge of Runways | 75.25 - 81.75 in |
| Rated Wheelbase Capacity | 115 in |
| 25% Capacity | 70 in |
| 50% Capacity | 85 in |
| 75% Capacity | 100 in |
| Locking Positions | 14 |
| Locking Spacing | 4 in |
| Horsepower | 2 HP |
| Voltage | 208-230V / 60 Hz / 1-Phase |
| Sound Level | 45 dB |
| Shipping Dimensions | 22 x 200 x 52 in |
| Shipping Weight | 2796 lb |
| Shipping Method | Flatbed |
| Offload Requirement | Forklift |
