Baileigh Industrial 220V 3Phase Computer Controlled Hydraulic Bending Machine, includes Arc Meter

DESCRIPTION

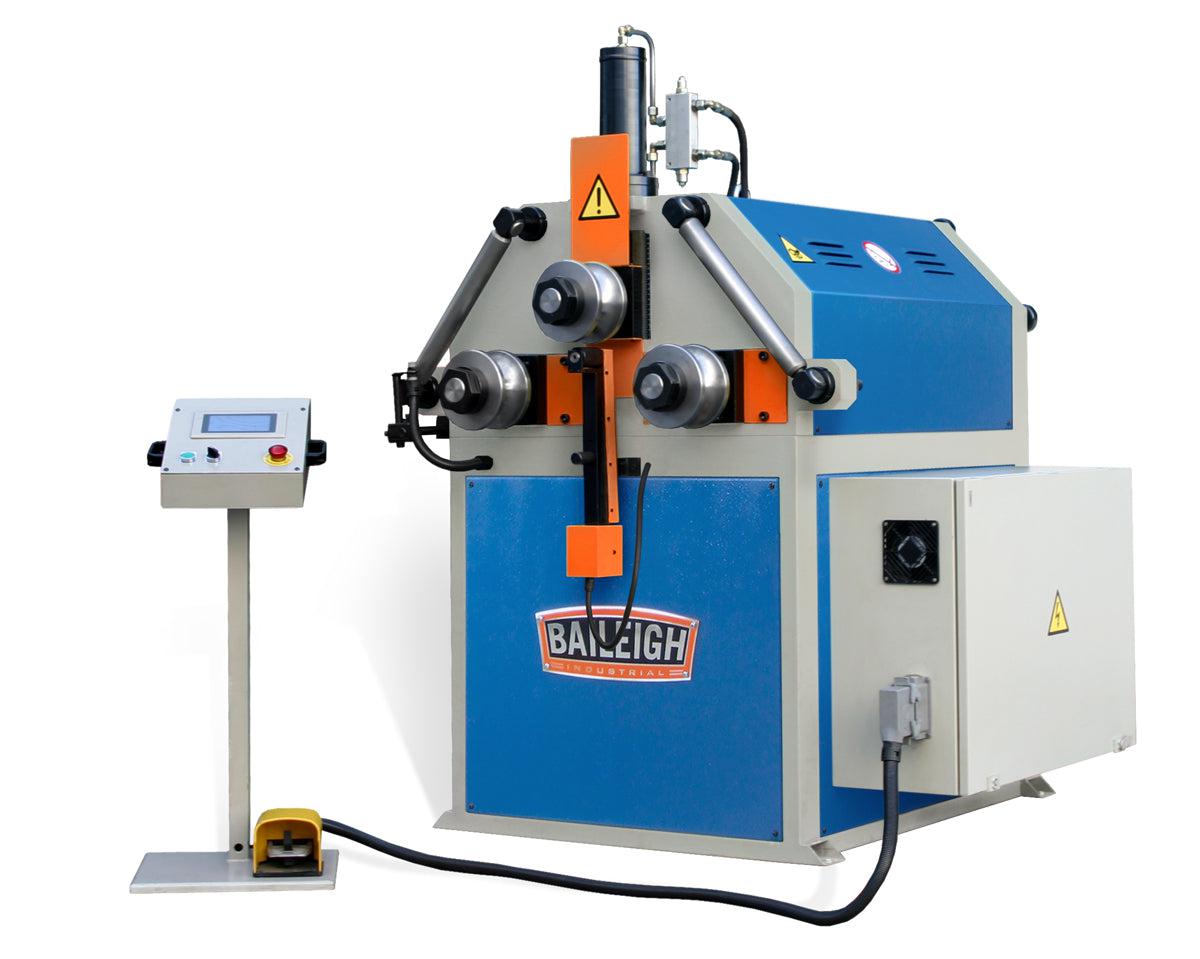

This double-pinch ring roller lets you tackle large production runs with confidence and ease. The R-CNC80 can bend a vast range of profiles and take on complex extrusions.

• Runs on 220-volt 3-phase power.
• Handles a capacity of up to 4" round tube and 2.5” schedule 40 pipe.
• Double-pinch design includes 3 driven, variable-speed rolls: 4 speeds for top roll, 2 speeds for bottom rolls.
• You can specify progressive (moving profile) or direct (profile stopped) top roll movement.
• Use the machine vertical position or lay it on its back in horizontal mode to bend long material and prevent large parts from swinging overhead.
• X-axis encoder lets you program the desired material length. The machine will automatically feed to the appropriate distance.
• X-axis coordinates with Y-axis to facilitate smooth transitions between bends.
• Internal memory holds 40 programs of up to 24 parts or segments per program.
• Quickly specify any of 75 profile calibrations with handheld digital measuring console.
• Comes standard with set of tooling for rolling square tube, flat bar, solid material, angle iron, and more applications.
• Electro-welded steel framework enables the machine to roll pipe at full capacity for years without flexing or buckling.
• Baileigh covers this pipe roller with a 1-year parts warranty and lifetime technical support by phone.

Why choose the R-CNC80 over similar machines?

• The R-CNC80 maintains accuracy with rugged, heavy steel plate construction that few roll benders on the market can match.
• This ring roller incorporates components made by some of the industry’s top manufacturers, such as Rexroth and Schneider Electric.
• X and Y axes give you the option to attach and save part numbers for each bend program, increasing efficiency for production runs.
• You can control all functions at once from the controller podium with attached foot pedal.
• We build our machines to last—and our customer support lasts, too; you can rely on us for remote help and advice from our team of experts over the machine’s long lifetime of use.

SPECIFICATIONS

* specifications subject to change without notice.
