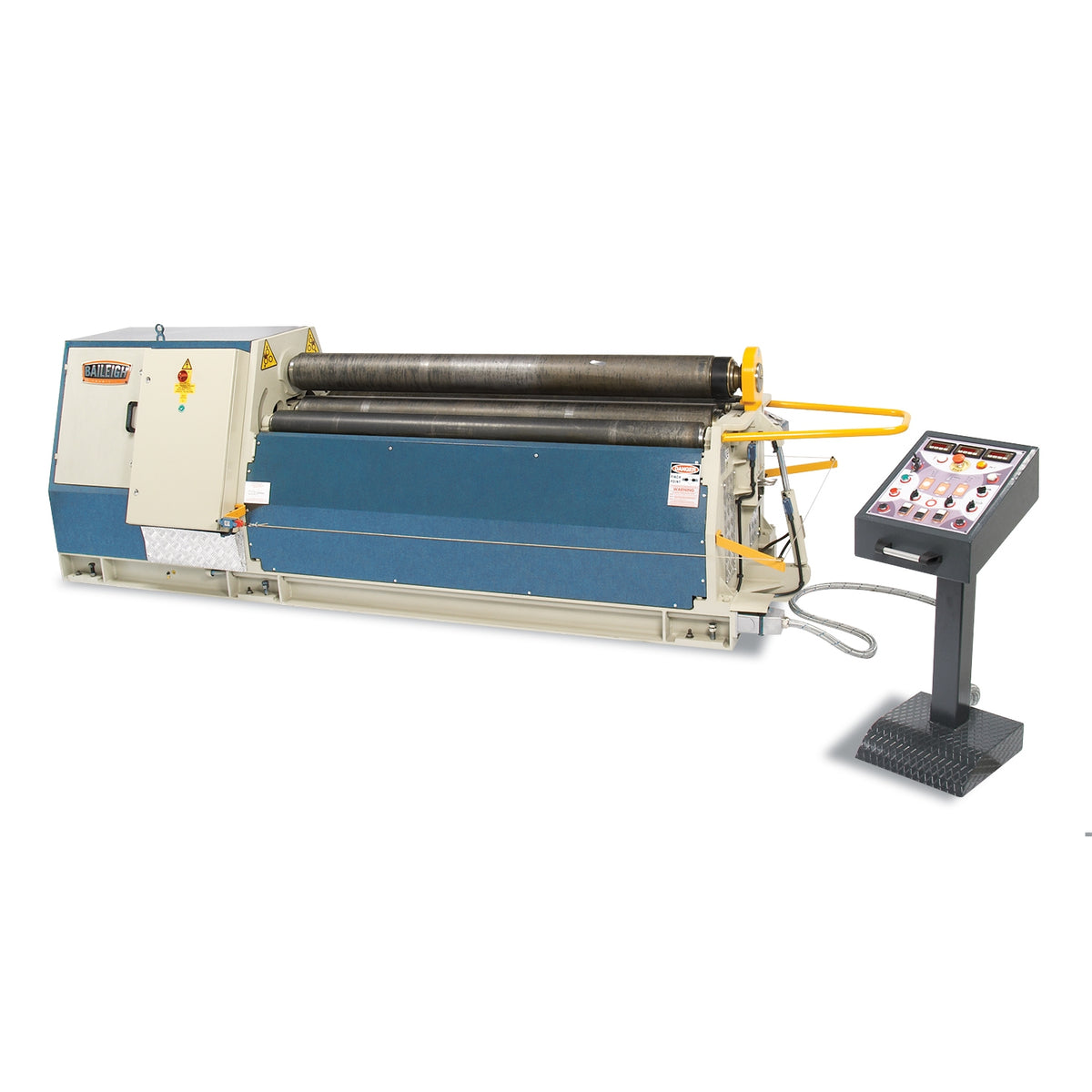

We designed this plate roll for years of trouble-free use.Direct movementon the lateral rolls can formtighter diameters with less work, whereas many plate rolls rely on orbital movement.
Rolls up to ¼” mild steel in6-footlengths.
Robust 4 hp motor runs on220-volt 3-phasepower.
Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
Direct linear piston movementfor the lateral and forming rolls delivers even more power.
Industrial 1.5 hp hydraulic motor moves the lateral rolls.
3 digital readoutsgive accurate roll locations for easy repeatability.
Operator control pedestallets you conveniently manage all movements of the machine.
Welded steel plate framekeeps the machine rigid and helps prevent flex.
Covered by a1-year parts warranty.
Includeslifetime technical supportby phone from our team of in-house machine experts.
Special Capacities:
Capacity at 5x roll diameter without pre bending .315”.
Capacity at 1.5x roll diameter without pre bending .236”.
Capacity at 1.5x roll diameter with pre bending .157”.
SPECIFICATIONS
Item Number
PR-603-4
Working Length
78.74"
Forming Width
80"
Driven Rolls
2
Roll Speed
16 fpm. (5 mpm)
Upper Roll Dia.
7"
Roll Adjustment Back
Hydraulic
Roll Diameter
7.4"
Side Roll Dia
5.9"
Roll Length
80.70"
Minimum Forming Dia
10.6"
Motor
4 hp
Included Accesories
Included Accesories
Power
220V / 3-phase
Shipping Weight
7700lbs
Shipping Dimensions (Inches)
138x44x52
* specifications subject to change without notice.
